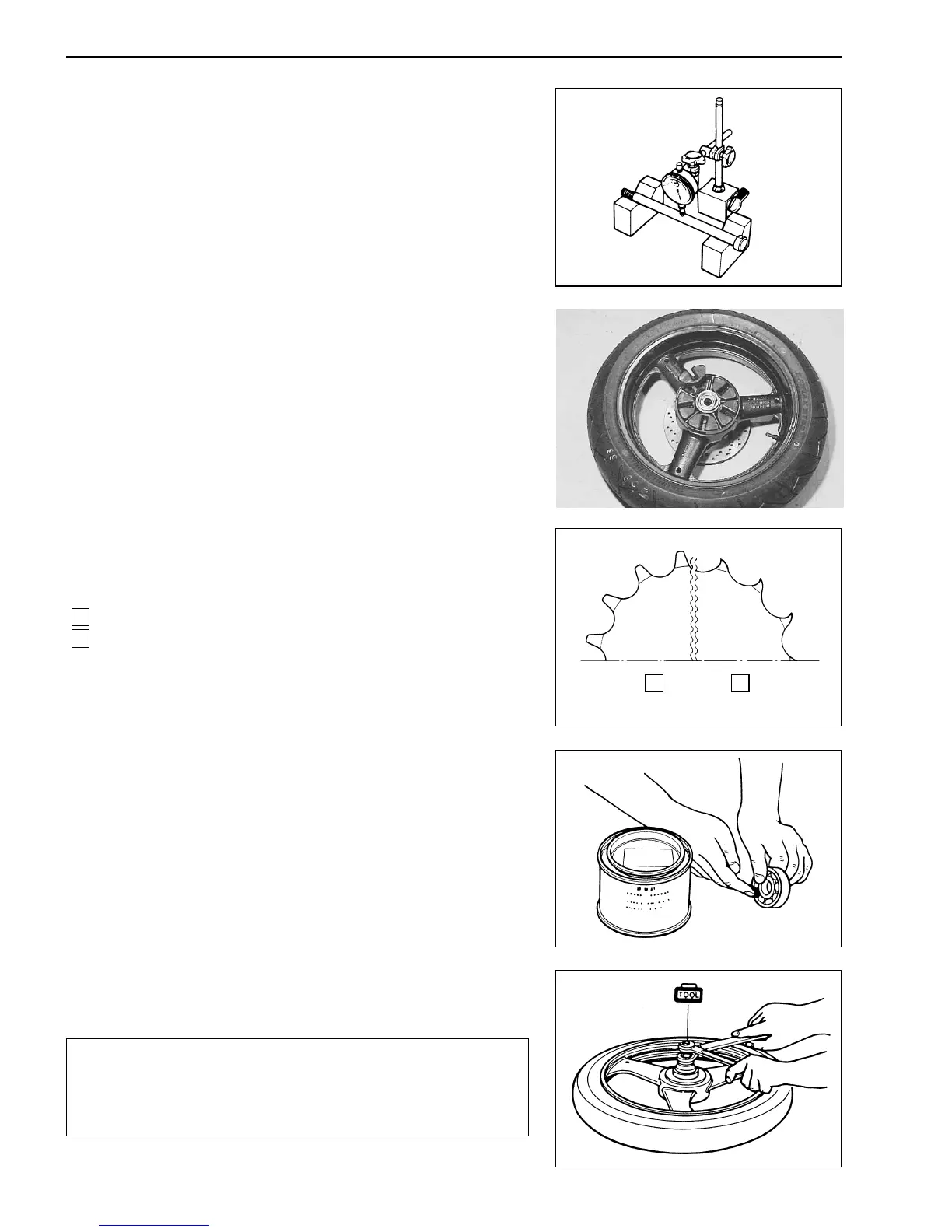

5-30 CHASSIS
REAR AXLE
Measure the rear axle runout using the dial gauge. If the runout
exceeds the service limit, replace the rear axle.
% 09900-20606: Dial gauge (1/100 mm)
09900-20701: Magnetic stand
09900-21304: V-block set (100 mm)
$ Wheel axle runout
Service Limit: 0.25 mm (0.01 in)
CUSHION
Inspect the cushions for wear and damage.
Replace the cushions if there is anything unusual.
REAR SPROCKET
Inspect the rear sprocket’s teeth for wear. If they are worn, replace
the sprockets and drive chain as a set.
A Normal wear
B Excessive wear
REASSEMBLY
WHEEL BEARINGS
• Apply SUZUKI SUPER GREASE “A” to the bearings before
installation.
For USA
& 99000-25030: SUZUKI SUPER GREASE “A”
For the other countries
& 99000-25010: SUZUKI SUPER GREASE “A”
• Install the wheel bearings using the special tool.
%%
%%
% 09941-34513: Bearing installer set
#
First, install the right wheel bearing, then install the left
wheel bearing.
The sealed cover on the bearing must face out.
(! 5-27)
A
B
