ELECTRICAL SYSTEM 6-29
INSPECTION

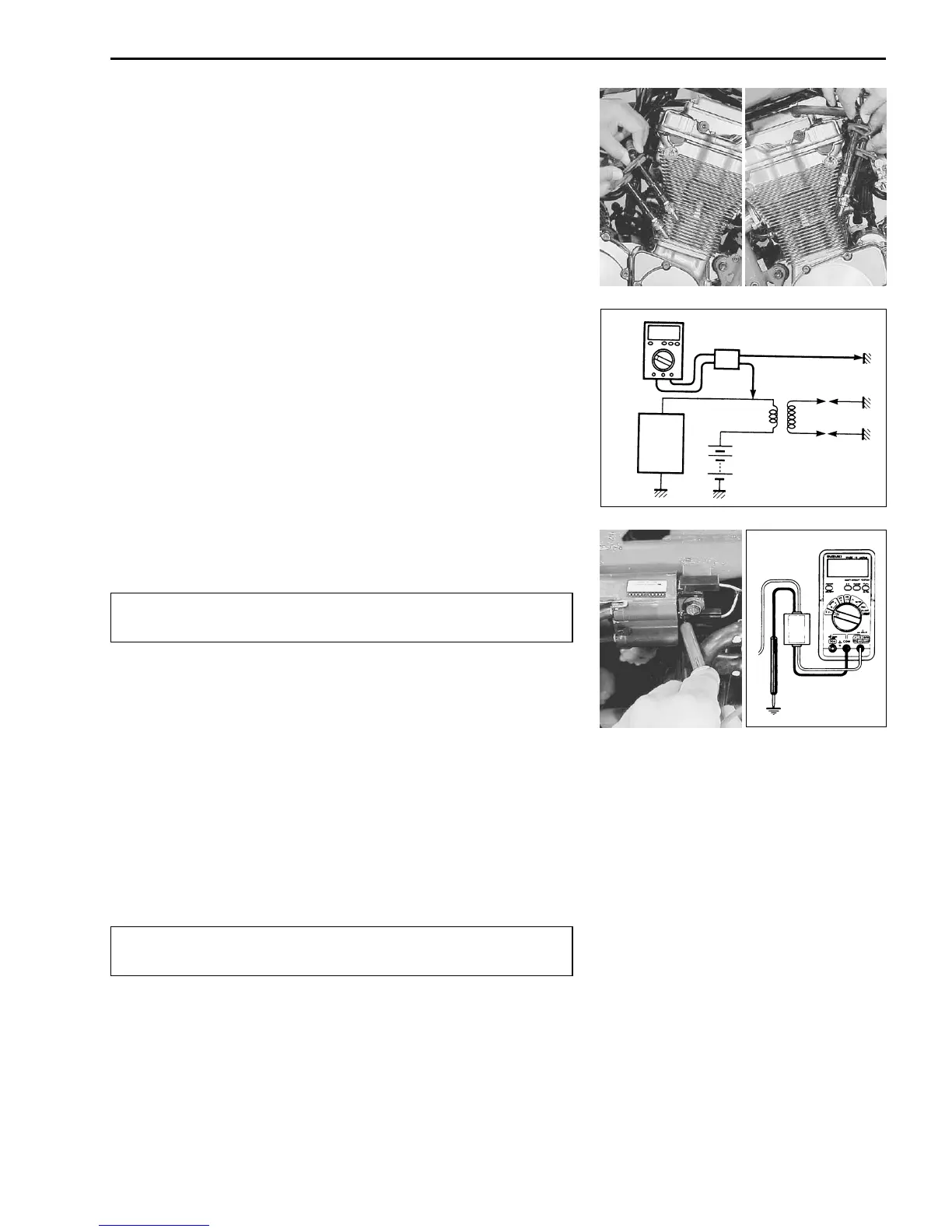

IGNITION COIL PRIMARY PEAK VOLTAGE
• Remove the fuel tank. (!4-3)
• Remove all of the spark plug caps and spark plugs.
• Connect four new spark plugs to each spark plug cap and
ground them to the crankcase.
NOTE:
Make sure that all of the spark plug caps and spark plugs are
connected properly and the battery is fully-charged.
Measure ignition coil primary peak voltage (for #1 and #4 cyl-
inders) in the following procedure.
• Connect the multi circuit tester with the peak voltage adaptor
as follows.
Ignition coil (for #1 and #4 cylinders):
White terminal–Ground
(+ Probe) (- Probe)
NOTE:
Do not disconnect the ignition coil primary wire.
# 09900-25008: Multi circuit tester set
"
When using the multi circuit tester and peak volt adap-
tor, refer to the appropriate instruction manual.
• Shift the transmission into neutral, turn the ignition switch to
the “ON” position and grasp the clutch lever.
• Press the starter button and allow the engine to crank for a few
seconds, and then measure the ignition coil primary peak volt-
age.
• Repeat the above procedure a few times and measure the high-
est ignition coil primary peak voltage.
' Tester knob indication: Voltage (
&&
&&
&)
$ Ignition coil primary peak voltage: More than 140 V
0
While testing, do not touch the tester probes and spark
plugs to prevent receiving an electric shock.
Peak volt adaptor
Ignition
coil
Igni-
tor
Battery
New spark
plugs
To Next Page
