STARTER MOTOR REMOVAL AND
DISASSEMBLY
• Remove the starter motor. (!3-16)

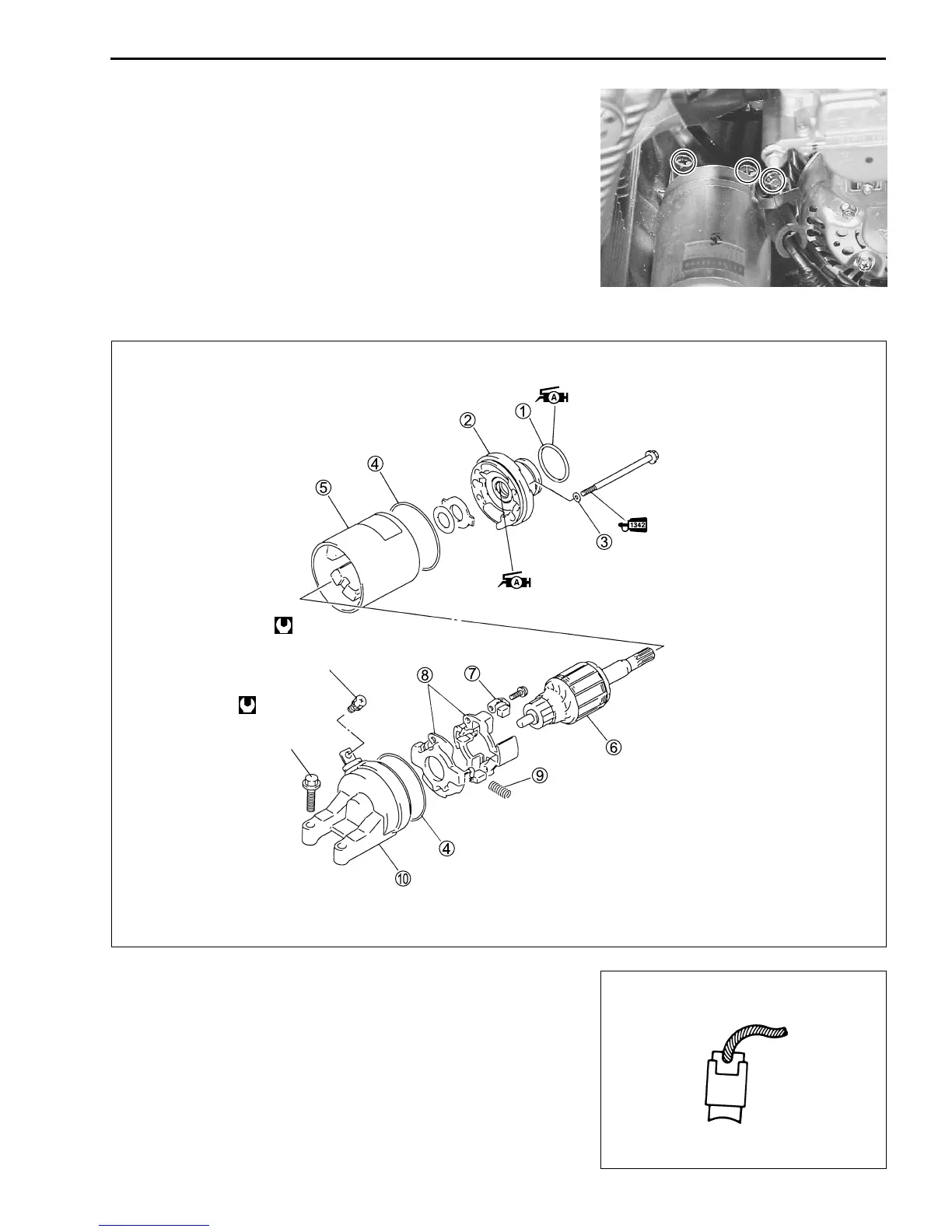

• Disassemble the starter motor, as shown.
STARTER MOTOR INSPECTION
CARBON BRUSHES
Inspect the carbon brushes for abnormal wear, cracks or smooth-
ness in the brush holder.
If either carbon brush is defective, replace the brush assembly.
1 O-ring
2 Housing end (inside)
3 O-ring (2 pcs)
4 O-ring (2 pcs)
5 Starter motor case
6 Armature
7 Brush (2 pcs)
8 Brush holder
9 Brush spring (4 pcs)
0 Housing end (outside)
