5-34 CHASSIS
REMOVAL

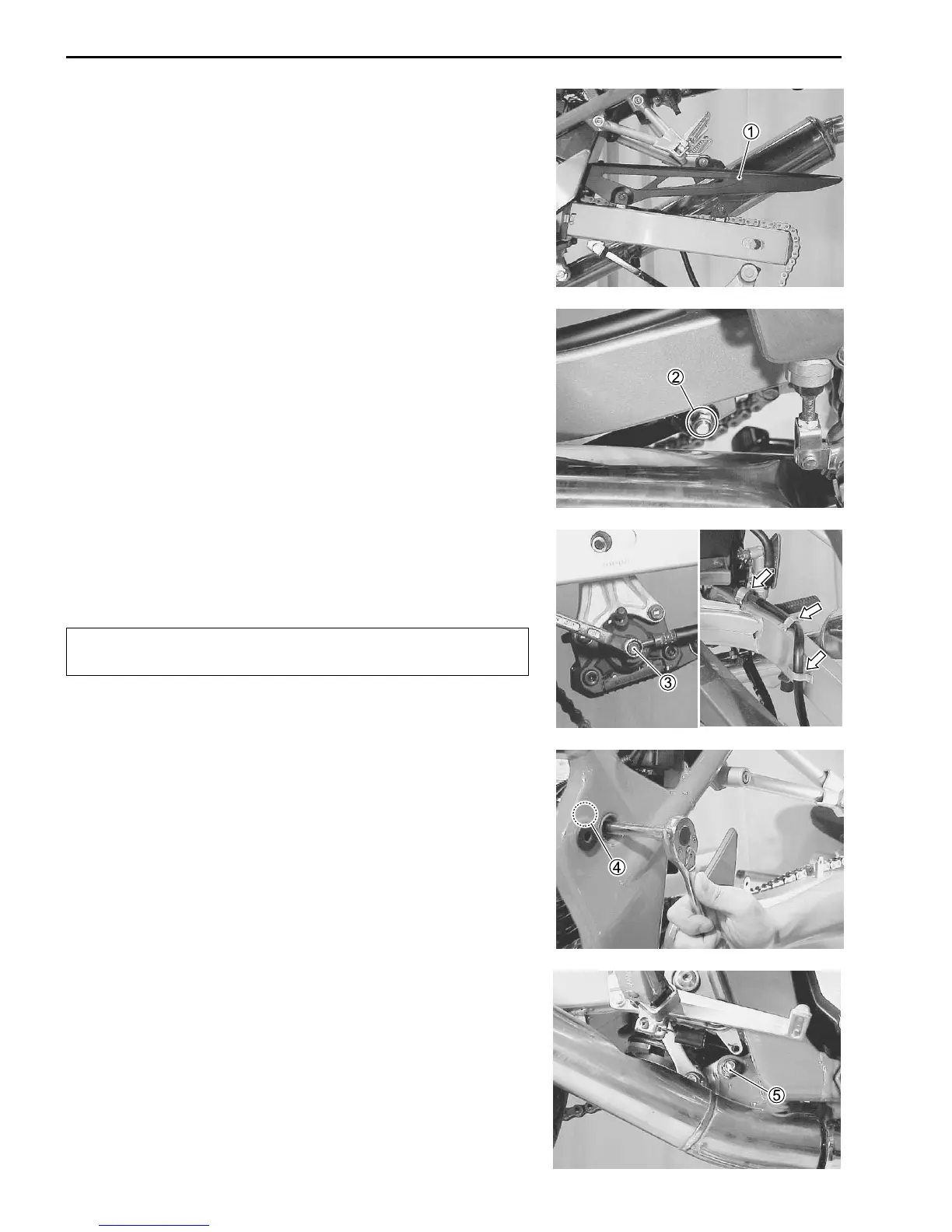

• Remove the rear wheel. (! 5-28)
• Remove the drive chain case 1.
• Remove the rear torque link nut 2.
• Remove the brake hose union bolt 3.
• Remove the brake hose from the brake hose guide and hose
clamps.
#
Handle brake fluid with care: the fluid reacts chemically
with paint, plastics, rubber materials etc.
• Remove side frame cover (left side only). (! 5-6)
• Remove the rear shock absorber upper mounting bolt and nut
4.
• Remove the cushion lever mounting bolt and nut 5.
NOTE:
Slightly loosen the cushion lever rod mounting nuts and rear shock
absorber lower mounting nut to facilitate later disassembly.
