5-32 CHASSIS
REAR SUSPENSION

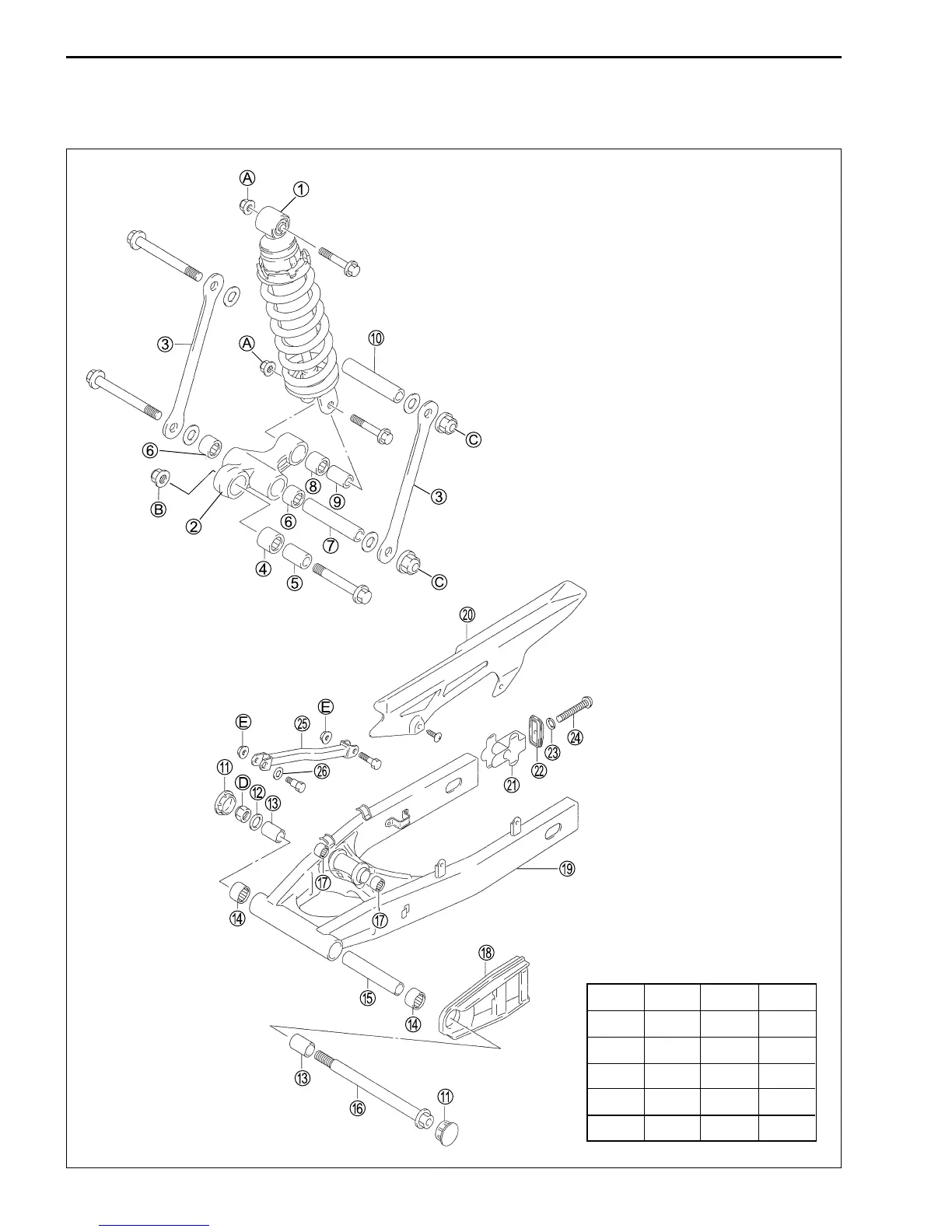

CONSTRUCTION
"
ITEM N
.
m kgf
.
m lb-ft
A 50 5.0 36.0
B 78 7.8 56.5
C 78 7.8 56.5
D 100 10.0 72.5
E 35 3.5 25.5
1 Rear shock absorber
2 Rear cushion lever
3 Rear cushion lever rod
4 Bearing
5 Spacer
6 Bearing
7 Spacer
8 Bearing
9 Spacer
0 Spacer
A Pivot shaft end cap
B Washer
C Spacer
D Bearing
E Spacer
F Pivot shaft
G Bearing
H Chain buffer
I Swingarm
J Chain case
K Chain adjuster
L Chain adjuster guide
M Washer
N Chain adjuster bolt
O Torque link
P Washer
A Rear shock absorber mounting nut
B Cushion lever mounting nut
C Cushion lever rod mounting nut
D Swingarm pivot nut
E Rear torque link nut
