ELECTRICAL SYSTEM 6-37
(Except for E-03, 28, 33)
LAMPS

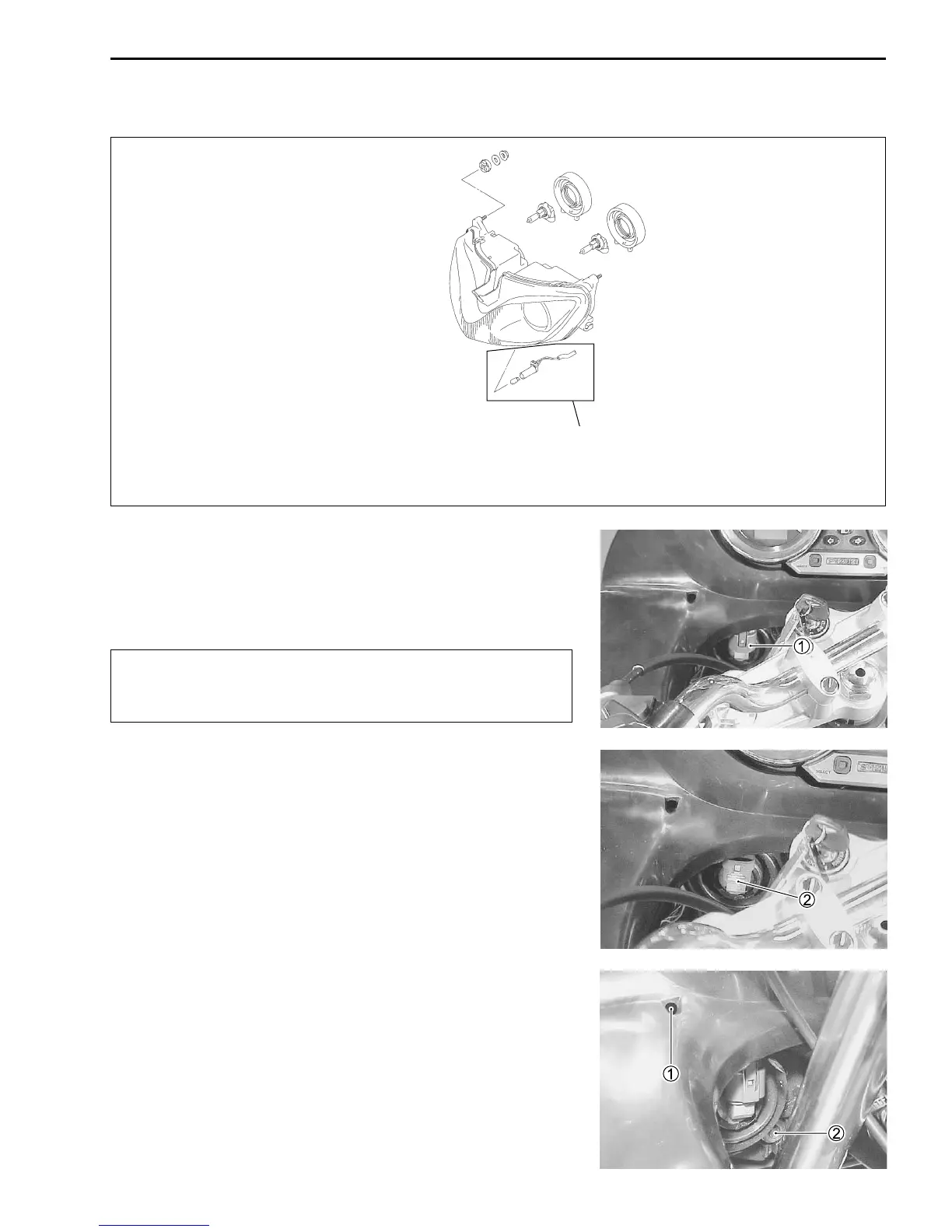

HEADLIGHT
BULB REPLACEMENT
• Disconnect the socket 1.
• Turn the bulb 2 counterclockwise and remove it.
• Reassemble the bulb in the reverse order of removal.
"
If you touch the bulb with your bare hands, clean the
bulb with a cloth moistened with alcohol or soapy wa-
ter to prevent premature bulb failure.
Headlight bulb: 12 V 60 + 51/51 W
Position light bulb: 12 V 5 W (Except for E-03, 28, 33)
NOTE:
Adjust the headlight (vertically and horizontally) after reassembling
HEADLIGHT BEAM ADJUSTMENT
To adjust the beam horizontally:
Turn the adjuster 1 clockwise or counterclockwise.
To adjust the beam vertically:
Turn the adjuster 2 clockwise or counterclockwise.
