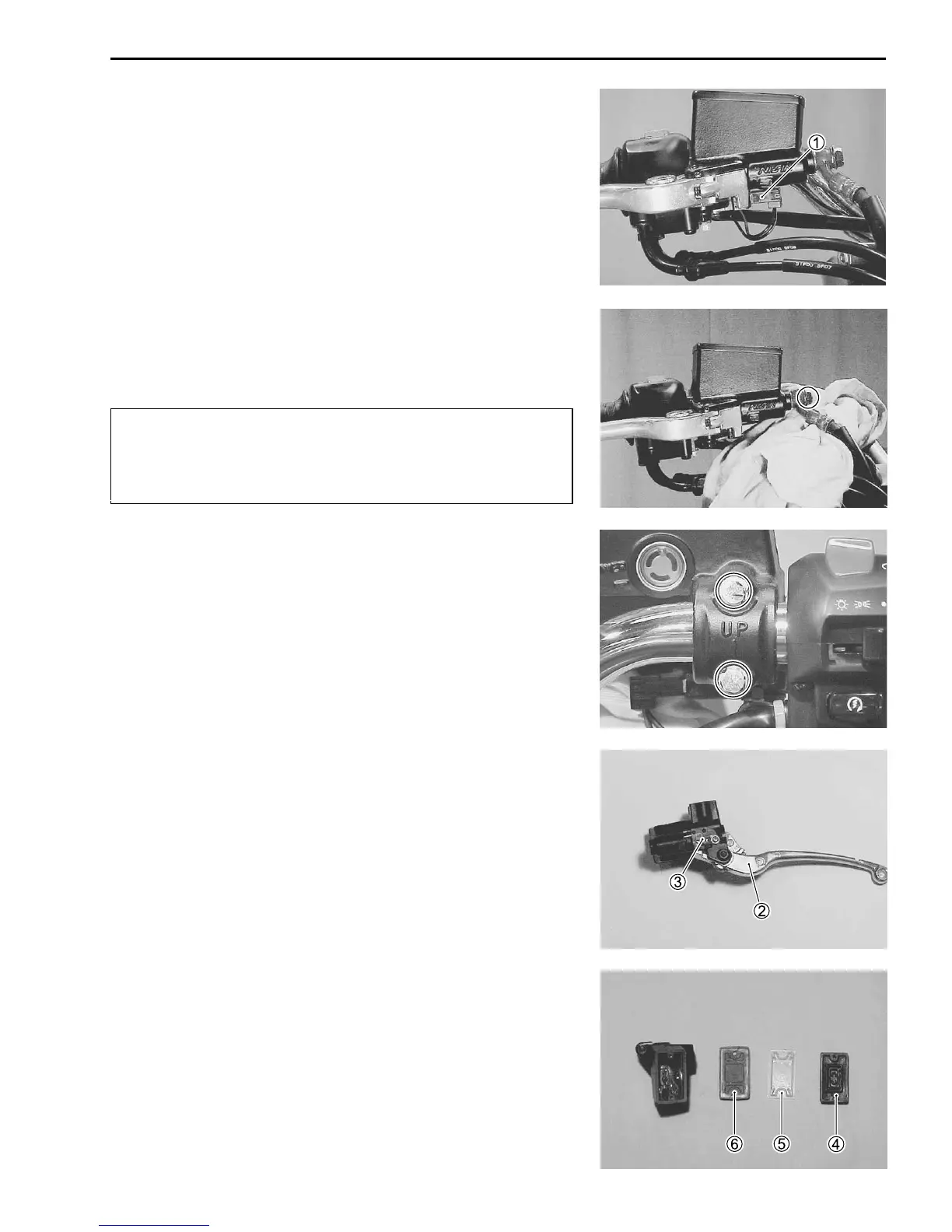

CHASSIS 5-47
MASTER CYLINDER REMOVAL AND
DISASSEMBLY
• Disconnect the front brake light switch lead wires 1.
• Place a rag underneath the brake hose union bolt on the
master cylinder to catch any spilt brake fluid. Remove the brake
hose union bolt and disconnect the brake hose.
#
Immediately wipe off any brake fluid contacting any part
of the motorcycle. The brake fluid reacts chemically with
paint, plastics and rubber materials, etc., and will damage
them severely.
• Remove the master cylinder assembly.
• Remove the brake lever 2 and brake light switch 3.
• Remove the reservoir cap 4, plate 5 and diaphragm 6.
• Drain the brake fluid.
