ELECTRICAL SYSTEM 6-7
CHARGING SYSTEM
DESCRIPTION (GENERATOR WITH IC REGULATOR)
The generator features a solid-state regulator that is mounted inside the generator. All regulator com-
ponents are enclosed into a solid mold, and this unit is attached to the brush holder frame. The regulator
voltage setting cannot be adjusted.
Two brushes carry current through the two slip rings to the rotor coil which is mounted on the rotor.
The stator windings are assembled on the inside of a laminated core that forms part of the generator housing.
A rectifier bridge, which is connected to the stator windings, contains eight diodes, and electrically changes
the stator A.C. voltage to D.C. voltage which appears at the generator output terminal.

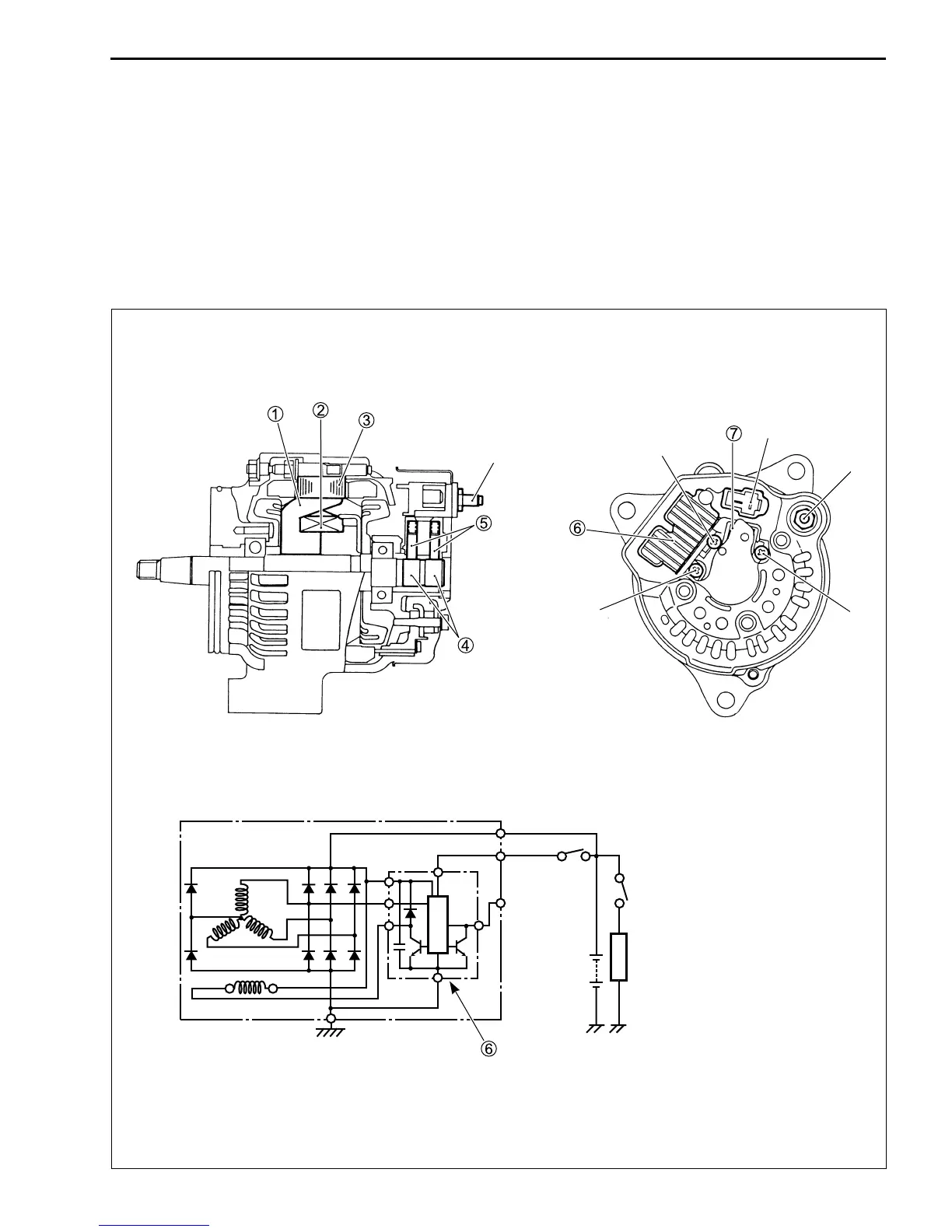

1 Rotor
2 Rotor coil
3 Stator coil
4 Slip rings
5 Brushes
6 IC regulator
7 Brush holder
B : Battery terminal
IG : Ignition terminal
F : Rotor coil terminal
P : Stator coil terminal
E : Ground
B
B
B
P
F
IG
B
B
P
F
IG
IG
E
E
Stator coil
Rotor coil
Ignition switch
IC
Battery
Load
