5-20 CHASSIS
Adhesive agent
For E-03, 28, 33
FW
D
FWD
STEERING

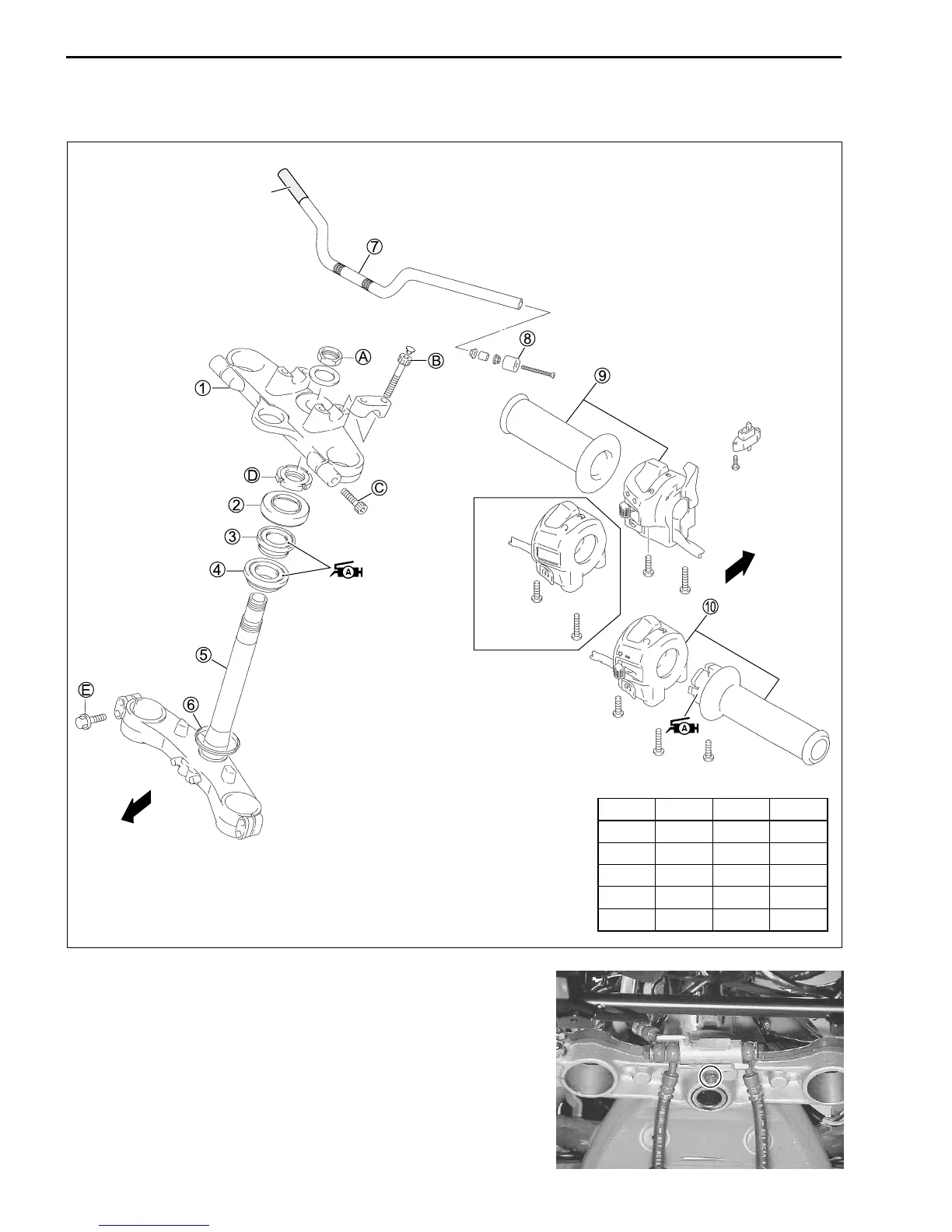

CONSTRUCTION
1 Steering stem upper bracket
2 Dust seal
3 Steering stem upper bearing set
4 Steering stem lower bearing set
5 Steering stem
6 Dust seal
7 Handlebar
8 Handlebar balancer
9 Handlebar switch assy (L)
0 Handlebar switch assy (R)
A Steering stem head nut
B Handlebar holder bolt
C Front fork upper pinch bolt
D Steering stem nut
E Front fork lower pinch bolt
REMOVAL AND DISASSEMBLY
• Remove the front wheel. (! 5-9)
• Remove the front forks. (! 5-13)
• Remove the brake hose joint mounting bolt.
"
ITEM N
.
m kgf
.
m lb-ft
A 65 6.5 47.0
B 23 2.3 16.5
C 23 2.3 16.5
D 45 4.5 32.5
E 23 2.3 16.5
To Next Page
