ELECTRICAL SYSTEM 6-11

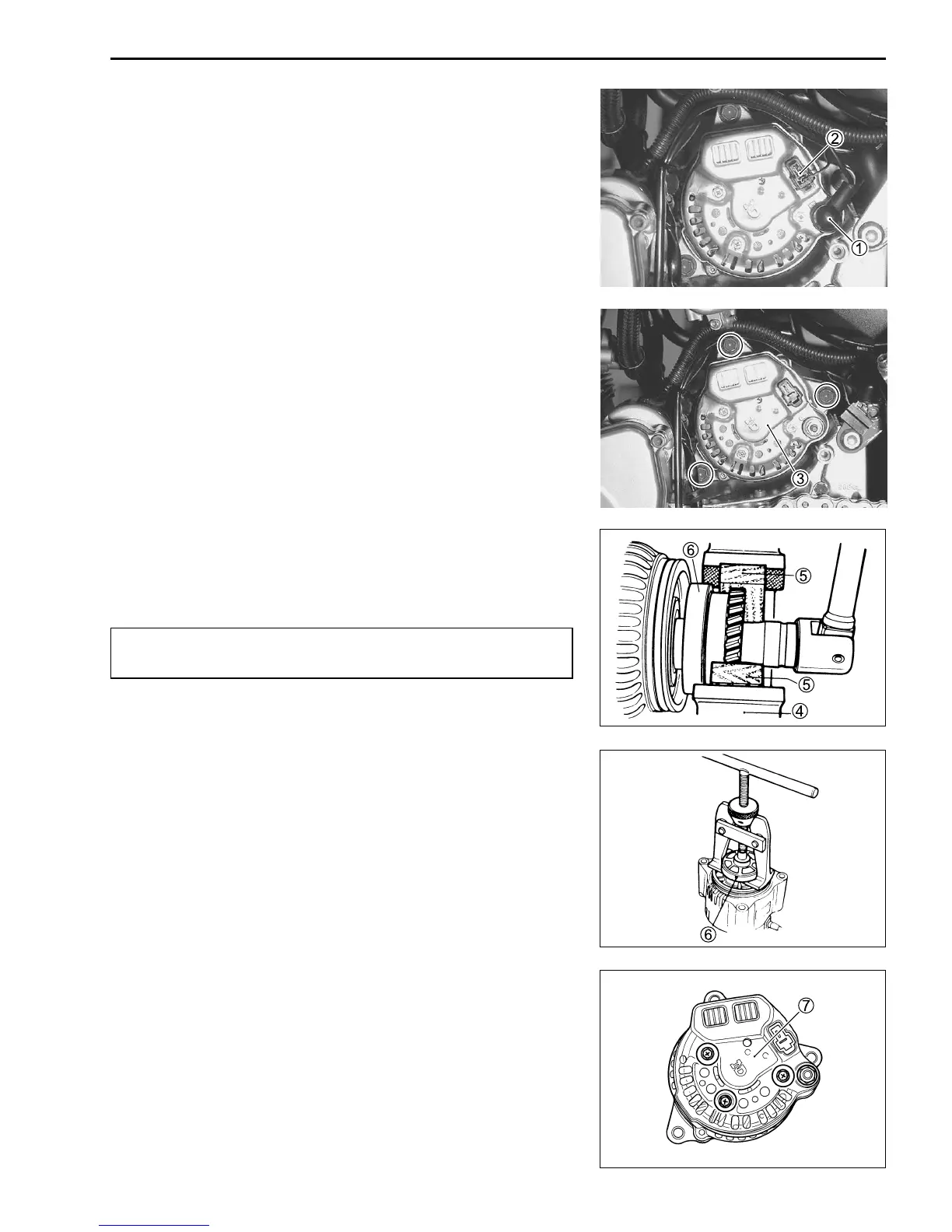

REMOVAL AND DISASSEMBLY
• Remove the engine sprocket cover. (!3-5)
• Disconnect the generator lead wire 1 and coupler 2.
NOTE:
Before disconnecting the generator lead wire, disconnect the
battery
-
lead wire.
• Remove the generator 3.
• Hold the generator driven gear using a vise 4 and two pieces
of wood 5 as shown. Then, remove the generator driven gear
nut.
"
Do not hold the damper housing 6 using the vise or the
damper housing will be damaged.
• Remove the damper housing 6 using the special tool.
##
##
# 09913-61510: Bearing remover
• Remove the generator end cover 7.
