4-16 FUEL AND LUBRICATION SYSTEM

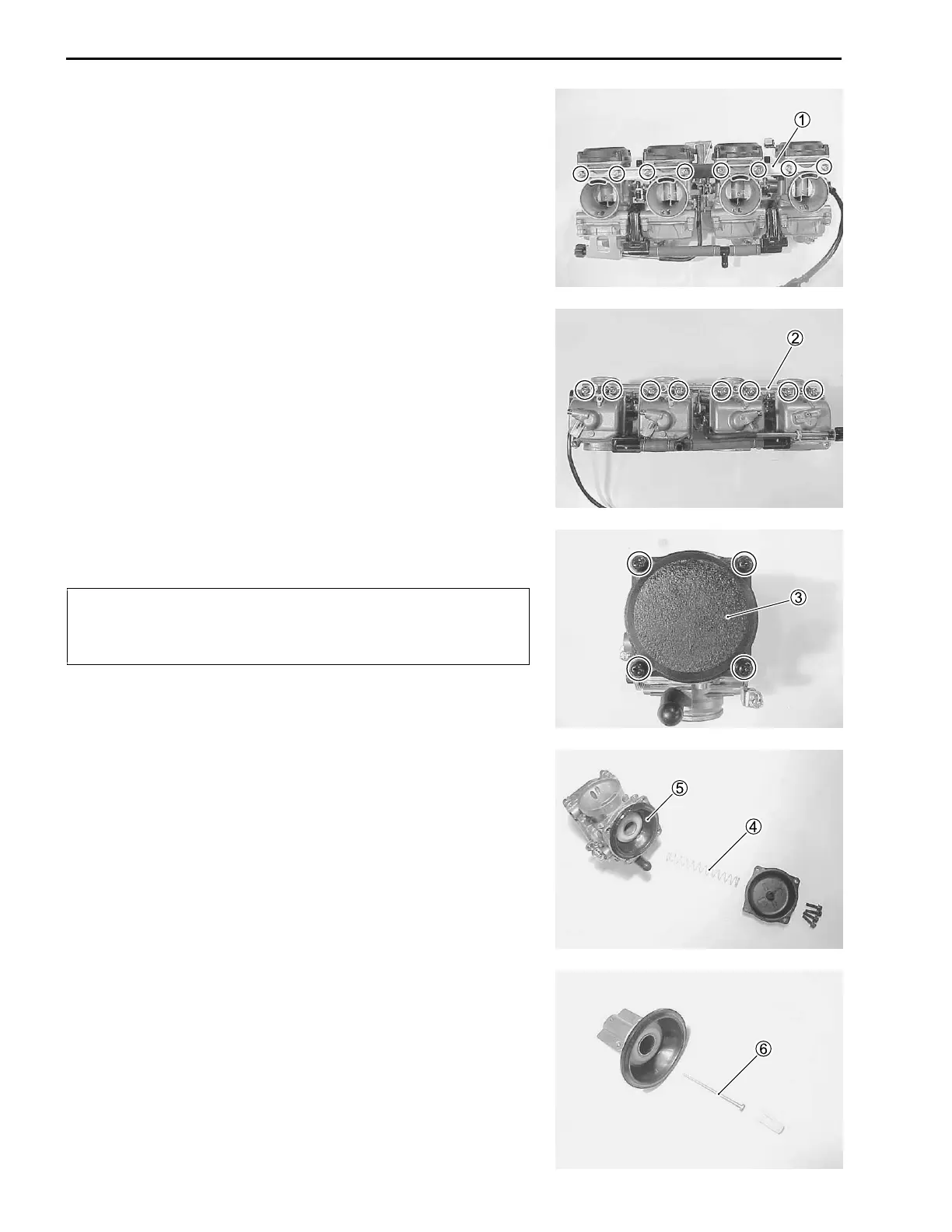

• Remove the upper 1 and lower 2 carburetor set plates.
• Separate the carburetor assembly.
##
##
# 09900-09004: Impact driver set
• Remove the top cap 3.
"
Do not use compressed air on the carburetor body, be-
fore removing the diaphragm; this may damage the dia-
phragm.
• Remove the spring 4 and the piston valve along with its dia-
phragm 5.
• Remove the jet needle 6 from the piston valve.

Suzuki GSX1200 1999 Specifications

General

Displacement	1157 cc
Bore x Stroke	79.0 mm x 59.0 mm
Compression Ratio	9.5:1
Ignition	Electronic ignition (Transistorized)
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Starting	Electric
Engine Type	4-stroke, 4-cylinder, DOHC
Fuel System	Mikuni BSR36SS carburetors
Transmission	5-speed
Rear Suspension	Link-type, coil spring, oil damped
Ground Clearance	135 mm
Seat Height	790 mm
