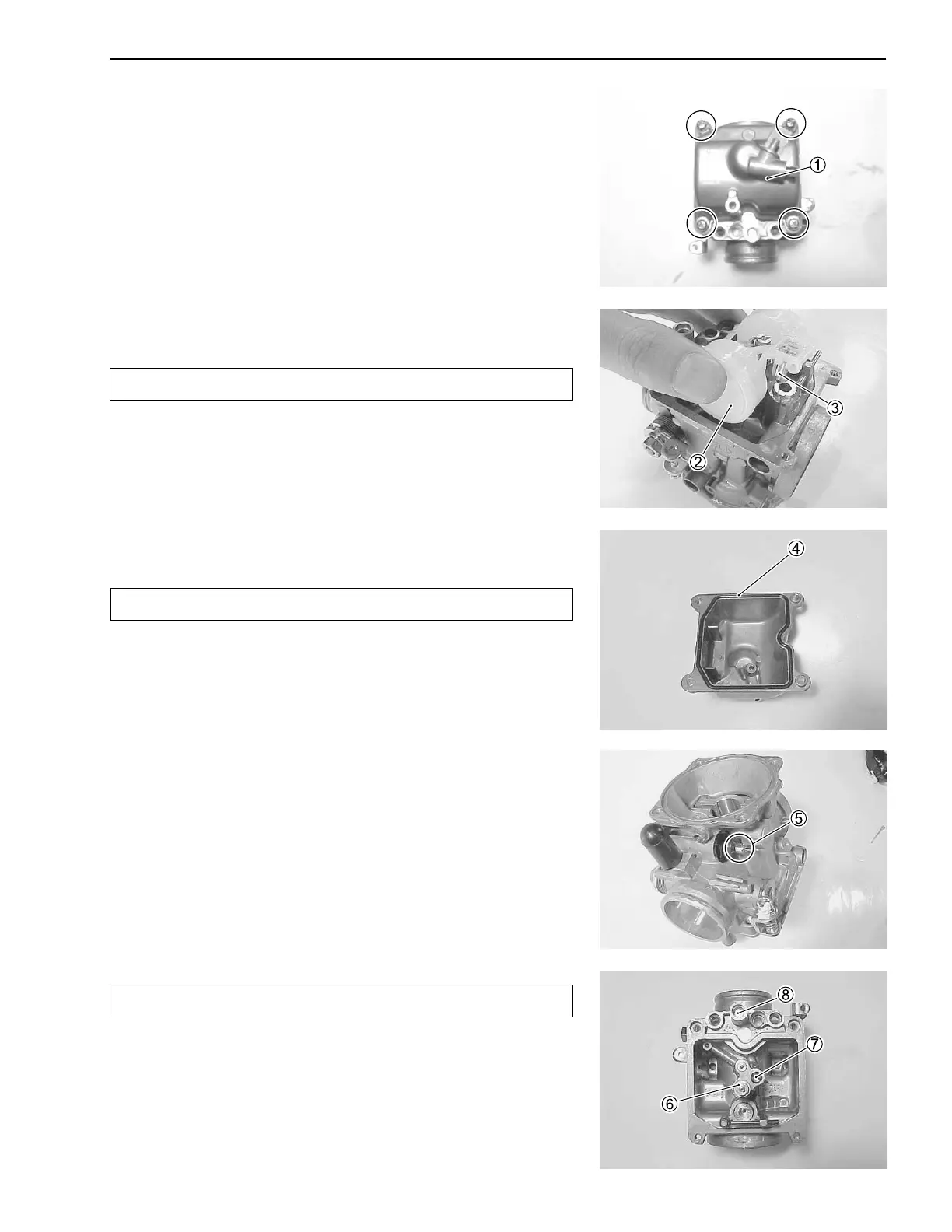

FUEL AND LUBRICATION SYSTEM 4-17
Remove the float chamber 1.
##
##
# 09900-09004: Impact driver set
Remove the float 2 and needle valve 3.
"
Do not use a wire to clean the valve seat.
Remove the O-ring 4.
"
Use a new O-ring to prevent fuel leakage.
Remove the main jet 6 and pilot jet 7.
Remove the pilot screw 8 with the spring, washer and O-ring.
"
Do not use a wire to clean the passages and jets.
NOTE:
Before removing the pilot screw
8
, its setting must be determined.
Slowly turn the pilot screw clockwise and count the number of
turns until it is lightly seated. Make a note of how many turns
were made.
When reassembling the pilot screw, you will want to set it to its
orginal position.
Remove the starter (enricher) plunger assembly 5.
