110 Disassembly and Reassembly TB7100 Service Manual
© Tait Electronics Limited October 2005
7.12 Final Reassembly
1. Ensure all internal cables are connected correctly as shown below.
2. Place the tray cover onto the chassis.
3. Use a Torx T10 torque-driver to fasten the tray cover with the 15
countersunk screws to 4.5lb·in (0.5N·m).
4. Fit the fuse
b at the rear of the base station.
Note Installation of the base station is described in the installation and
operation manual.

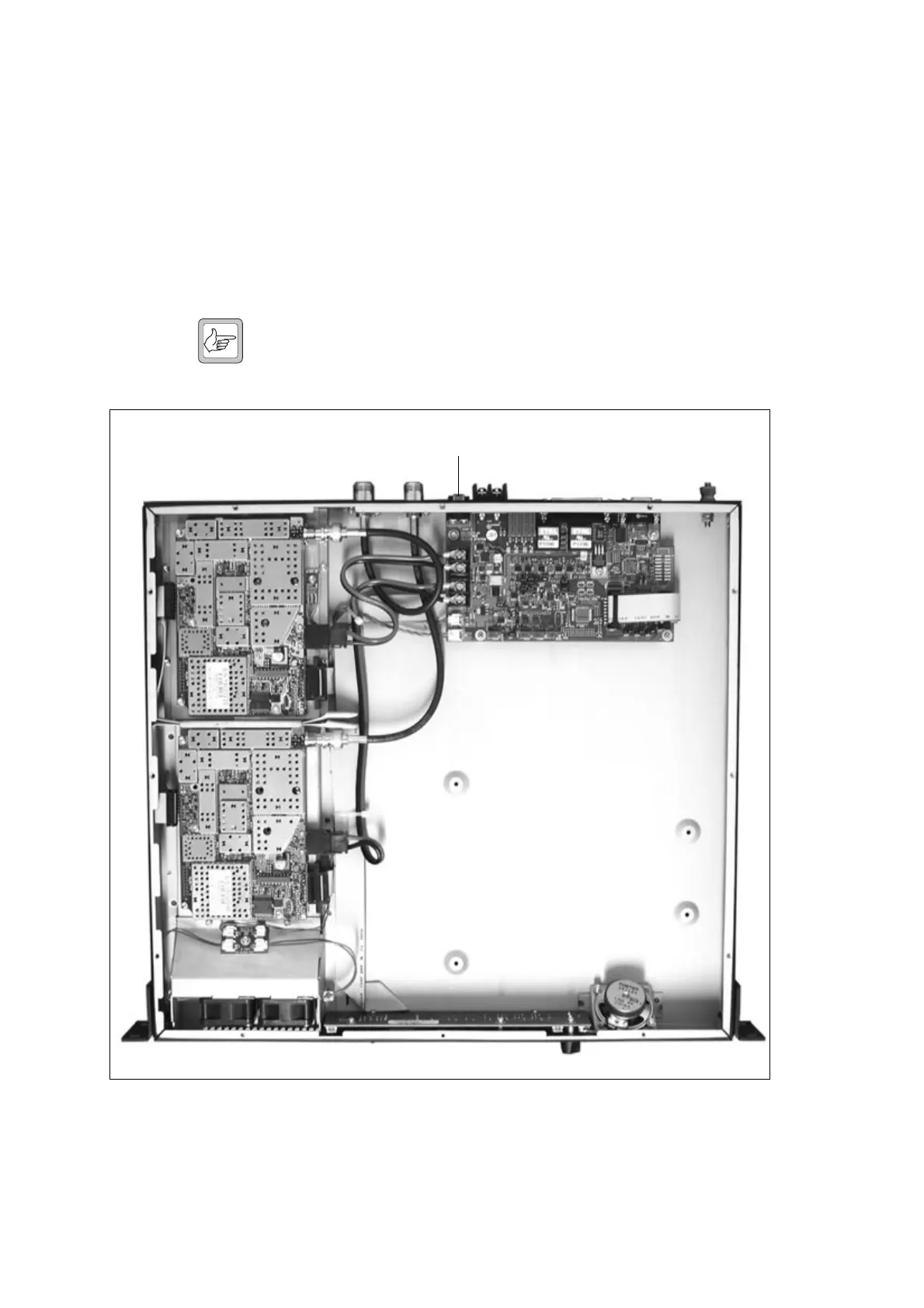

Figure 7.9 Final reassembly
b
