OPTIONS
OPERATING LEVER SWITCH KIT 1
AUXILIARY 1ST SWITCHES

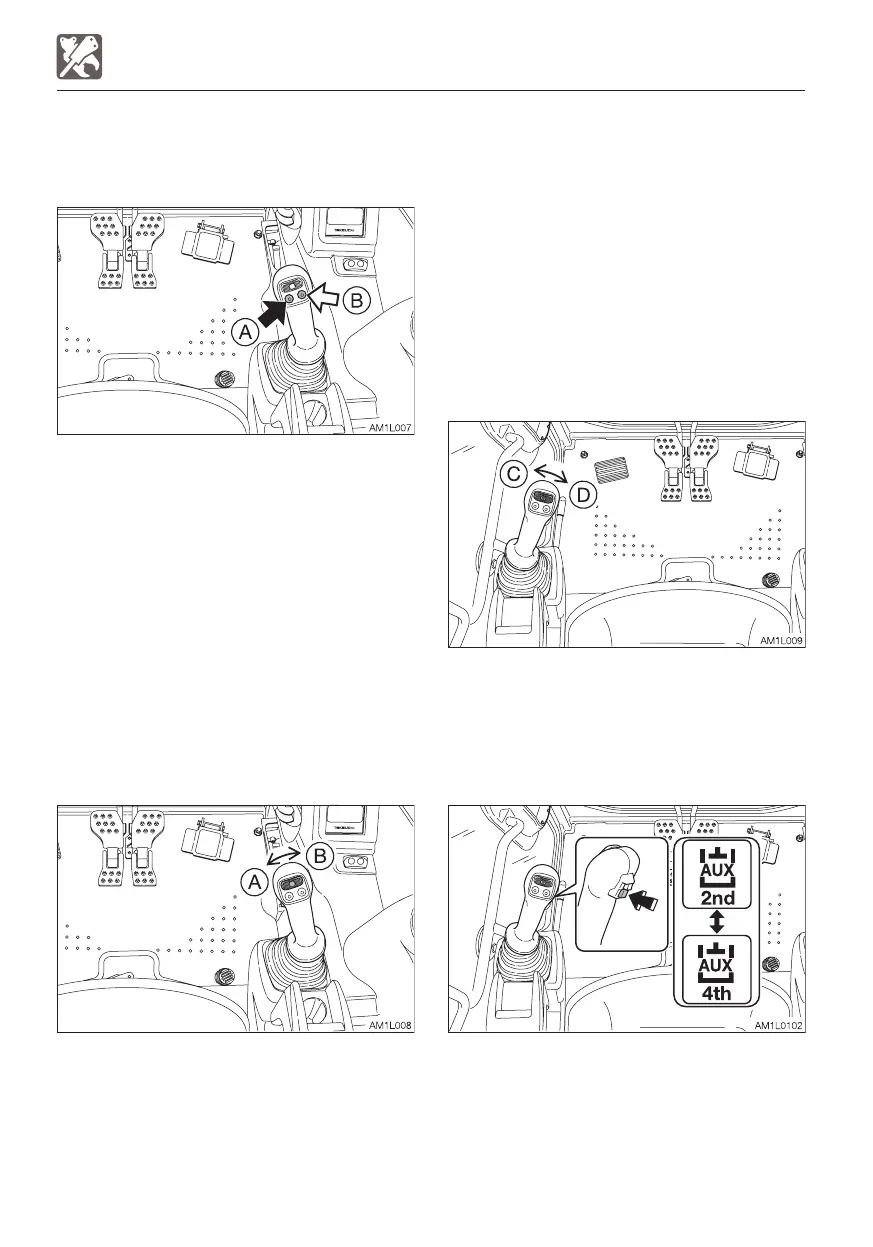

Auxiliary hydraulic buttons
Press those buttons to control the flow of the
oil in the first auxiliary hydraulic lines.
• Proportional control of the auxiliary
hydraulic circuit is not possible.
(A) .......Hydraulic oil flows to the left auxiliary
line (a).
(B) ......Hydraulic oil flows to the right auxiliary
line (b).
Slider switch
(Proportional control)
Proportional control allows for slow-to-fast/
fast-to-slow movement of attachment.
Example: If you move the slider switch half
way, the attachment will move at
approximately one-half the speed.
Move this switch to control the flow of the oil
in the first auxiliary hydraulic lines.
(A) .......Hydraulic oil flows to the left auxiliary
line (a).
(B) ......Hydraulic oil flows to the right auxiliary
line (b).
Refer to “Auxiliary hydraulic lines” on page
2-64 to 2-68.
AUXILIARY 2ND/4TH SWITCH
Slider switch
(Proportional control)
Proportional control allows for slow-to-fast/
fast-to-slow movement of attachment.
Example: If you move the slider switch half
way, the attachment will move at
approximately one-half the speed.
Move this switch to control the flow of the oil
in the second auxiliary hydraulic lines.
(C): .....Hydraulic oil flows to the left auxiliary
line (c).
(D): .....Hydraulic oil flows to the right auxiliary
line (d).
To use the auxiliary 4th hydraulic line, press
the auxiliary 2/4 select button to change to
the operation of the auxiliary 4th.
Refer to “Auxiliary hydraulic lines” on page
2-64 to 2-68.
