The alarm sounds when the machine travels
backward while in the traveling mode (the
upperstructure position warning lamp if off).
The alarm does not sound when the
machine travels forward.
While in the digging mode, the alarm sounds
when the steering wheel is turned right or left
or when the upperstructure is slewed.
If the alarm does not sound, the fuse may be
blown. Inspect the fuses.
If the fuse blows again soon after
replacement, then the electric system is
likely faulty. It may pose a fire hazard if
not properly repaired. Contact your sales
or service dealer for advice.

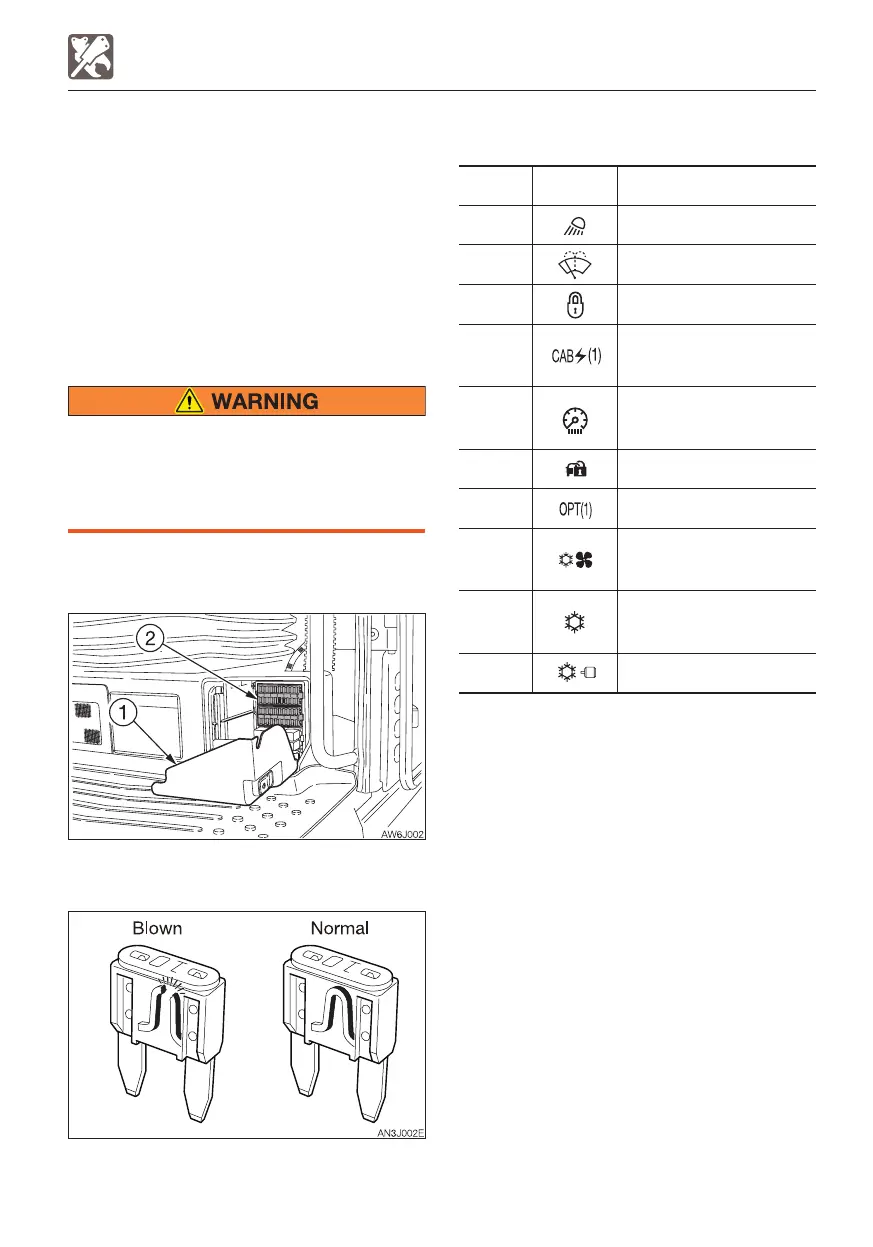

1. Turn the starter key to the OFF position to
stop the engine.
2. Open the fuse box cover (1).
3. Check for any blown fuses (2).
4. If a fuse is blown, replace it with a spare
fuse of the same capacity.
Fuse layout and circuits protected
Capacity
Symbol Protected circuit
20A Light
10A Wiper
10A Lever lock
20A
Cab interior power
supply (1)
20A
Travel alarm,
Instrument cluster
5A Immobilizer
20A Option (1)
15A
Air conditioner blower
motor
10A
Air conditioner
compressor
5A AC motor
