2-34
CONTROLS
SWITCHES

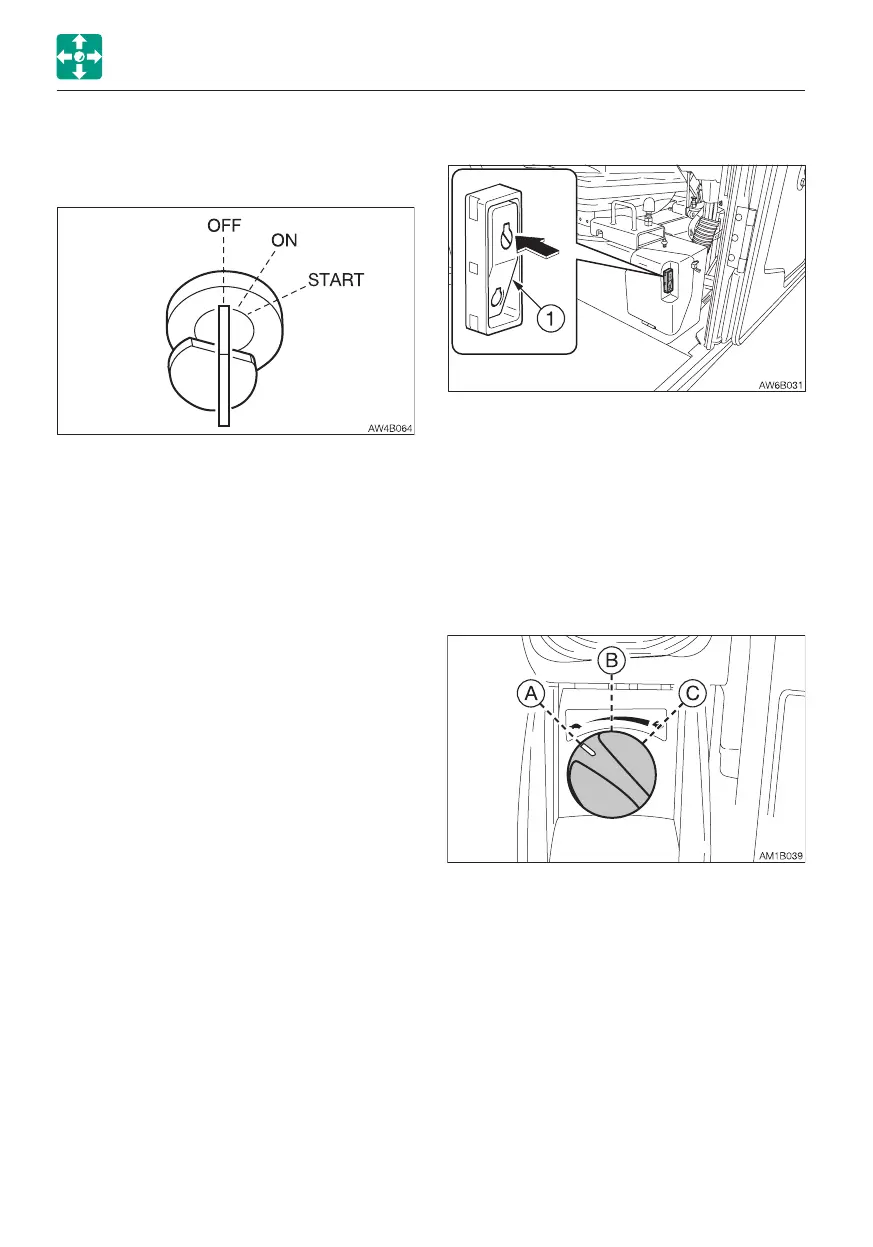

STARTER SWITCH
SWITCHES
IMPORTANT: Do not repeatedly switch
the key from OFF to ON and ON to OFF
over a short period. Doing so will cause
engine breakdown.
OFF ......... Position for stopping the engine
and inserting or removing the key.
ON .......... Position in which the engine is
running. At this position, all the
electrical equipment is functional.
When the coolant temperature is
too low, the engine is
automatically preheated.
START ..... Position for starting the engine.
When the key is released, the
switch automatically returns to the
ON position.
ENGINE SHUTDOWN SWITCH
This switch is used to shutdown the engine if
it fails to stop, due to machine failure or
breakage, when the starter switch is set to
the OFF position.
1. Press the switch (1).
2. After use, reset the switch (1).
THROTTLE CONTROLLER
This controls the engine speed.
(A) .......Low idling
(B) ......Medium speed
(C) ......Maximum speed
