2-42
CONTROLS

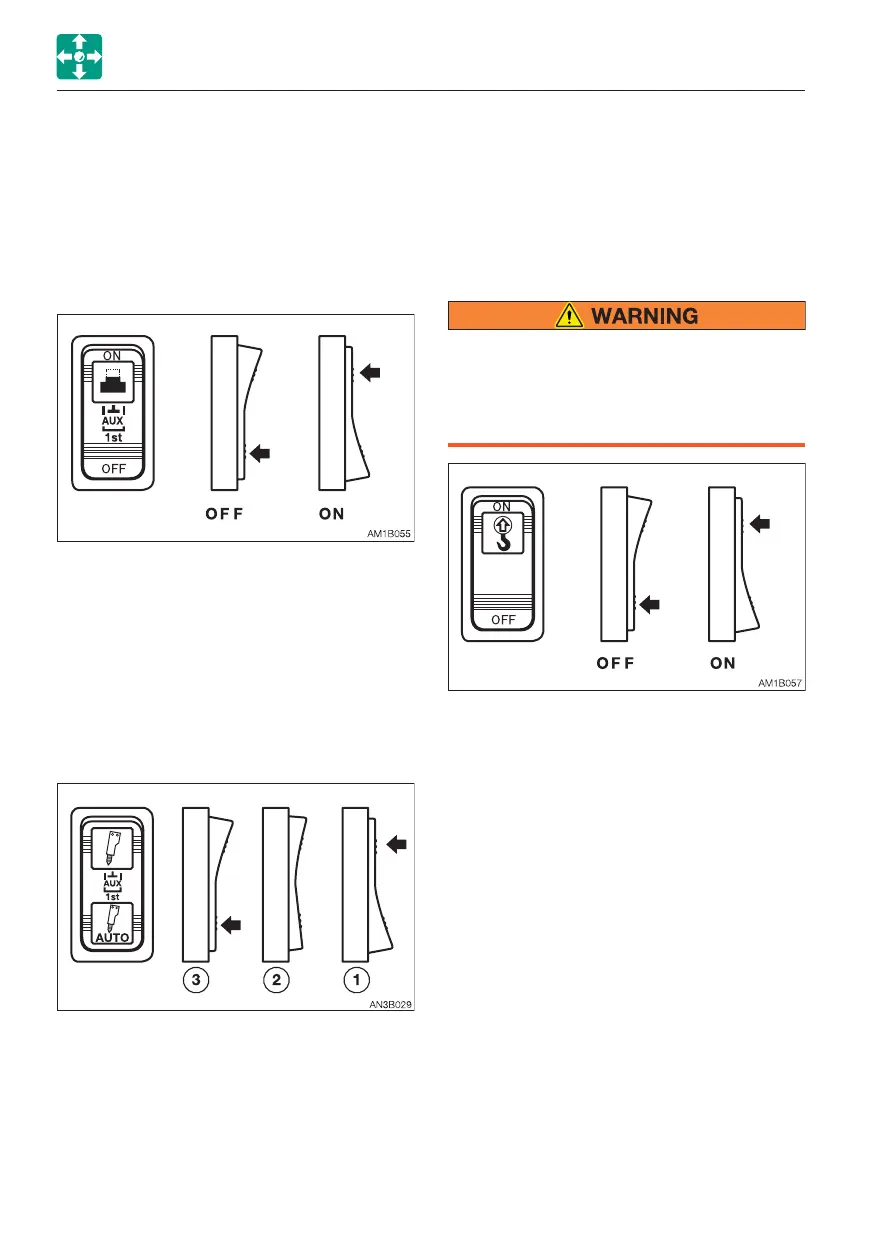

DETENT MODE SWITCH
(AUXILIARY 1ST)
IMPORTANT: Do not operate the machine
in the detent mode for a long time. Doing
so will increase the hydraulic oil
temperature and shorten the service life
of the hydraulic units.
This switch is used to change the operation
mode of the auxiliary 1st button (A). Pressing
the ON side of the switch causes the
auxiliary button (A) to enter the detent mode.
Pressing the OFF side changes to the
momentary mode.
SWITCHES
LIFT OVERLOAD WARNING SWITCH
(IF EQUIPPED)
If the overload is not removed after the
overload warning horn is sounded, the
machine may tip over. If the horn starts
sounding, stop operating the machine
and lighten the load.
If a weight greater than the lifting capacity is
applied or lifted, the overload warning device
is activated and the horn sounds. (When the
lift overload warning switch is turned on.)
OFF ....Off
ON .....On
AUXILIARY 1ST AUTO TANK SWITCH
(IF EQUIPPED)
Use this switch to change the direction of
hydraulic oil flow in the Aux. 1st line.
(1) When using a hydraulic breaker (1-way
flow)
(2) When using a reversible attachment
(2-way flow)
(3) The one-way flow can be set only when
the button “A” of the Aux. 1 is pressed.
(The tank circuit is automatically opened.)
