Creating marking block # 2
When block preparation is complete, press the arrow at the top of the screen to validate the block and go back
to the previous screen.
The program goes back to the marking le. The screen below appears:

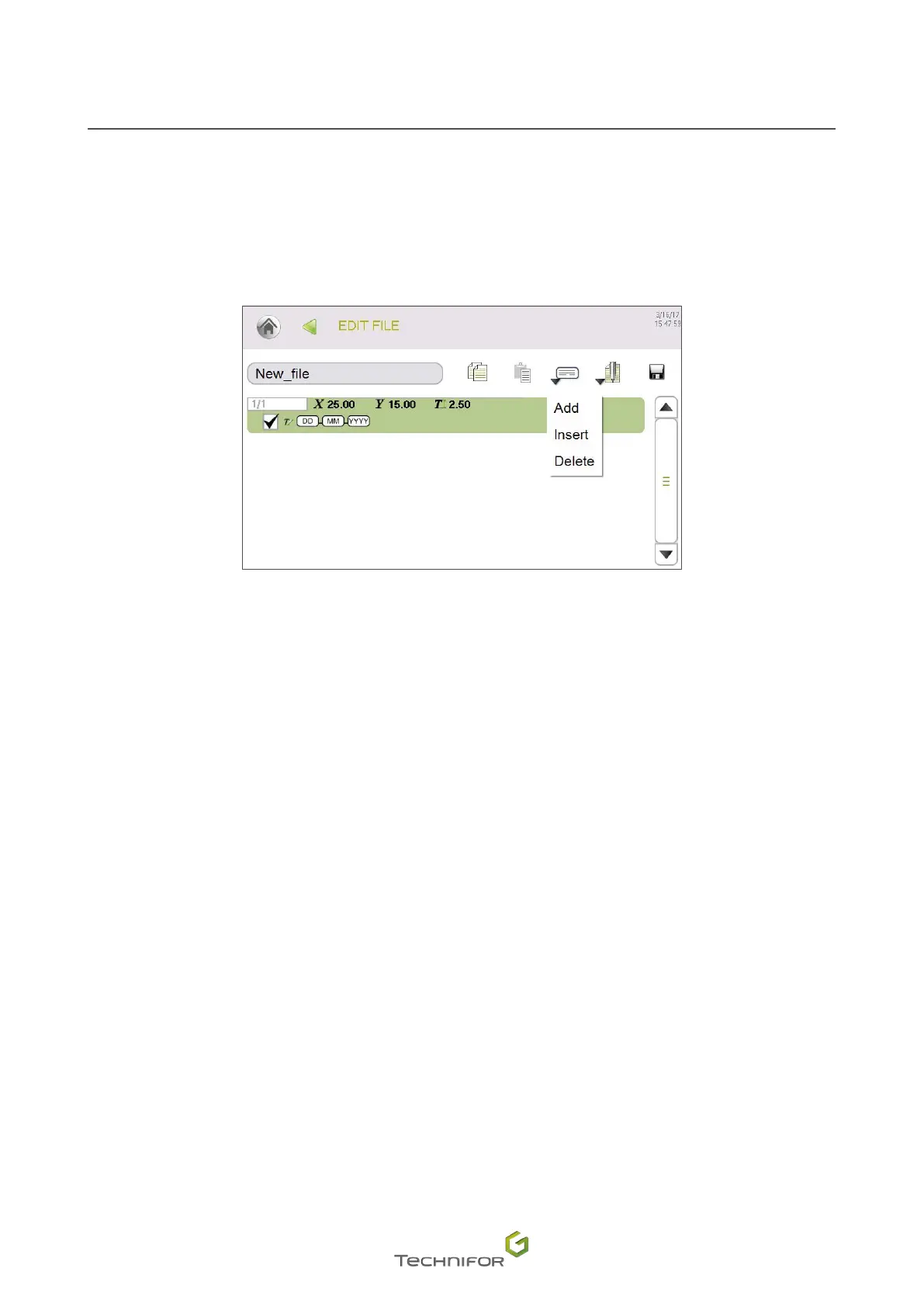

"Edit" sub-menu: Select "Add".
A second block appears. Position the cursor on this block. Double-click on a block to enter data.
Linear marking is selected by default. Keep this marking mode: no change.
Text to be marked: Enter "ABCDE 12345".
X coordinate: for this example, enter the value 50.
Y coordinate: for this example, enter the value 15.
The size of the text 2.5 is selected by default. Keep this value: no action required.
The angle 0 is selected by default. Keep this value: no action required.
The default value of the "Force" area varies according to the machine's conguration. Keep this value: no
action required.
After the entry is complete, the following screen should be displayed:
