Tektronix TDS 220 Service Manual

Operating Information
2–4
TDS 200 Series Digital Oscilloscope Service Manual
Extension Modules
You can increase the feature set of your oscilloscope by inserting an extension
module. Refer to page 10–9 for information about the available modules.
Figure 2–2 shows the proper way to install a module without bending the
connecting pins.
CAUTION. Electrostatic discharge (ESD) can damage components in the
extension module and the oscilloscope. Do not operate your instrument with the
extension module connector exposed.
1
2

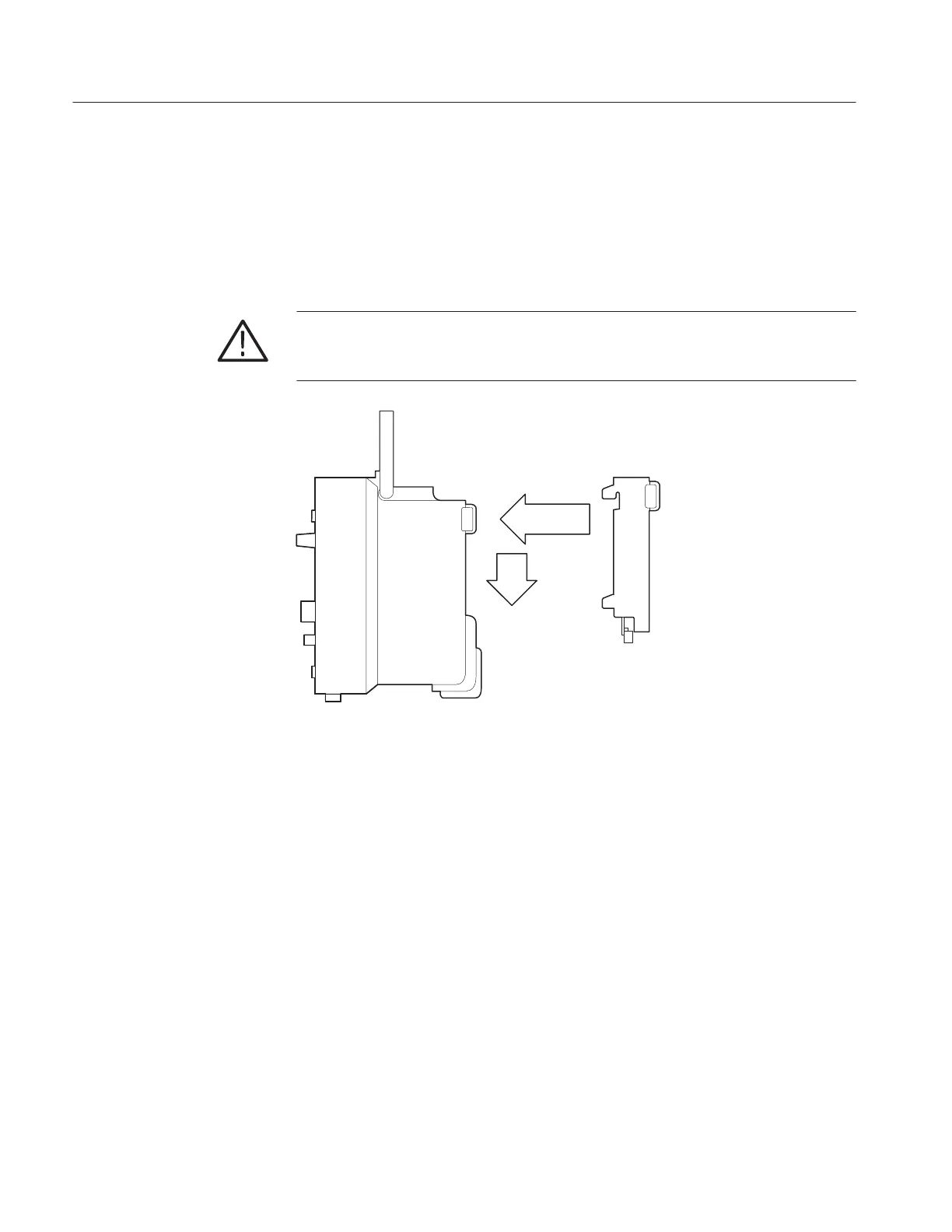

Figure 2–2: Installing an extension module
