Maintenance
6–16
TDS 200 Series Digital Oscilloscope Service Manual
You will need a torque-limiting Torx T-15 screwdriver and a flat-blade
screwdriver for this procedure.
Removal. First remove the handle, power button, and rear case using the
procedures on pages 6–12, 6–13, and 6–14. Then, slide the front feet out of the
front case as shown in Figure 6–8.
Installation. Slide the feet into the slots provided in the front case as shown in
Figure 6–8. Use the installation procedures for each module removed to
reassemble the instrument.
Front case
Front foot (2)

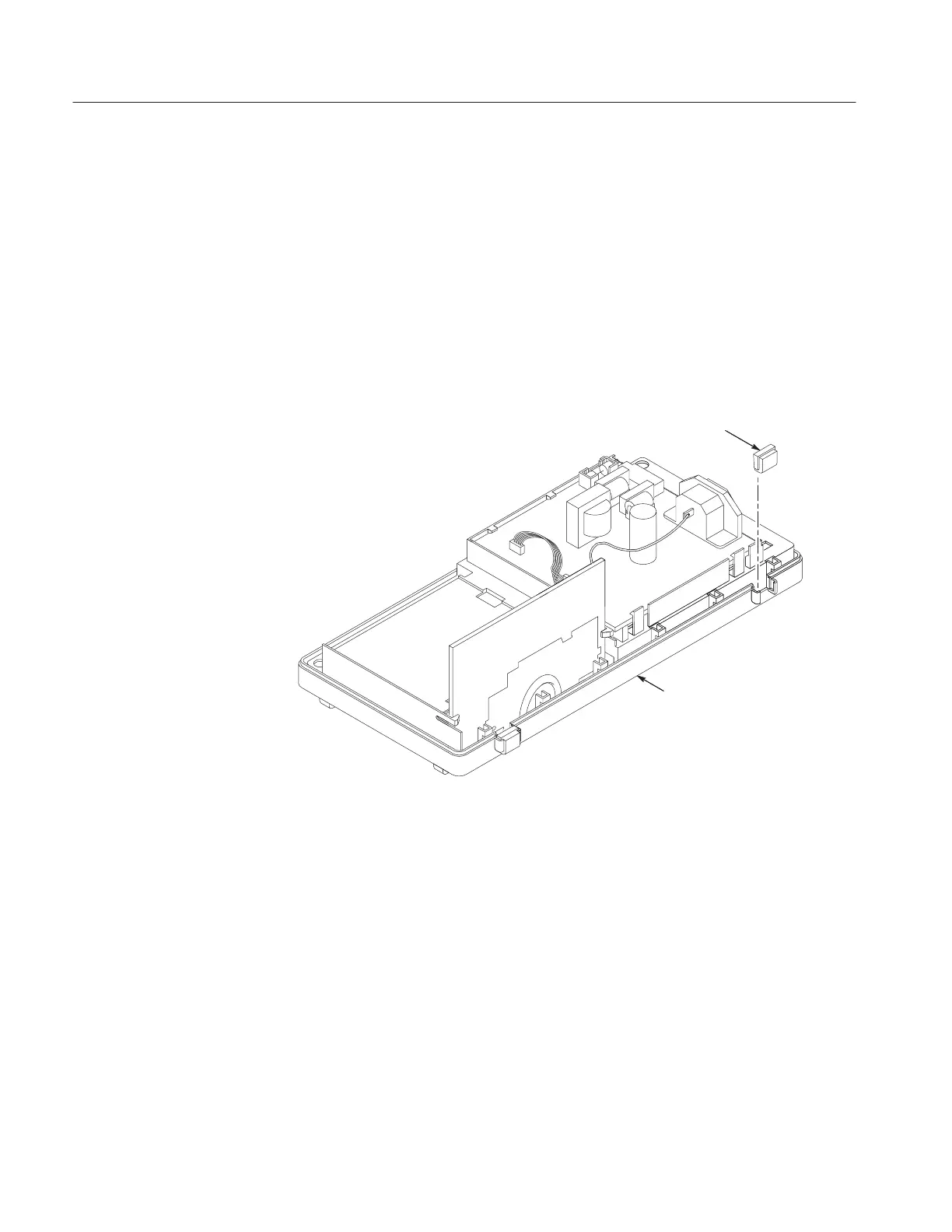

Figure 6–8: Removing and installing the front feet
Front Feet
