Maintenance
TDS 200 Series Digital Oscilloscope Service Manual
6
–
19
Installation.

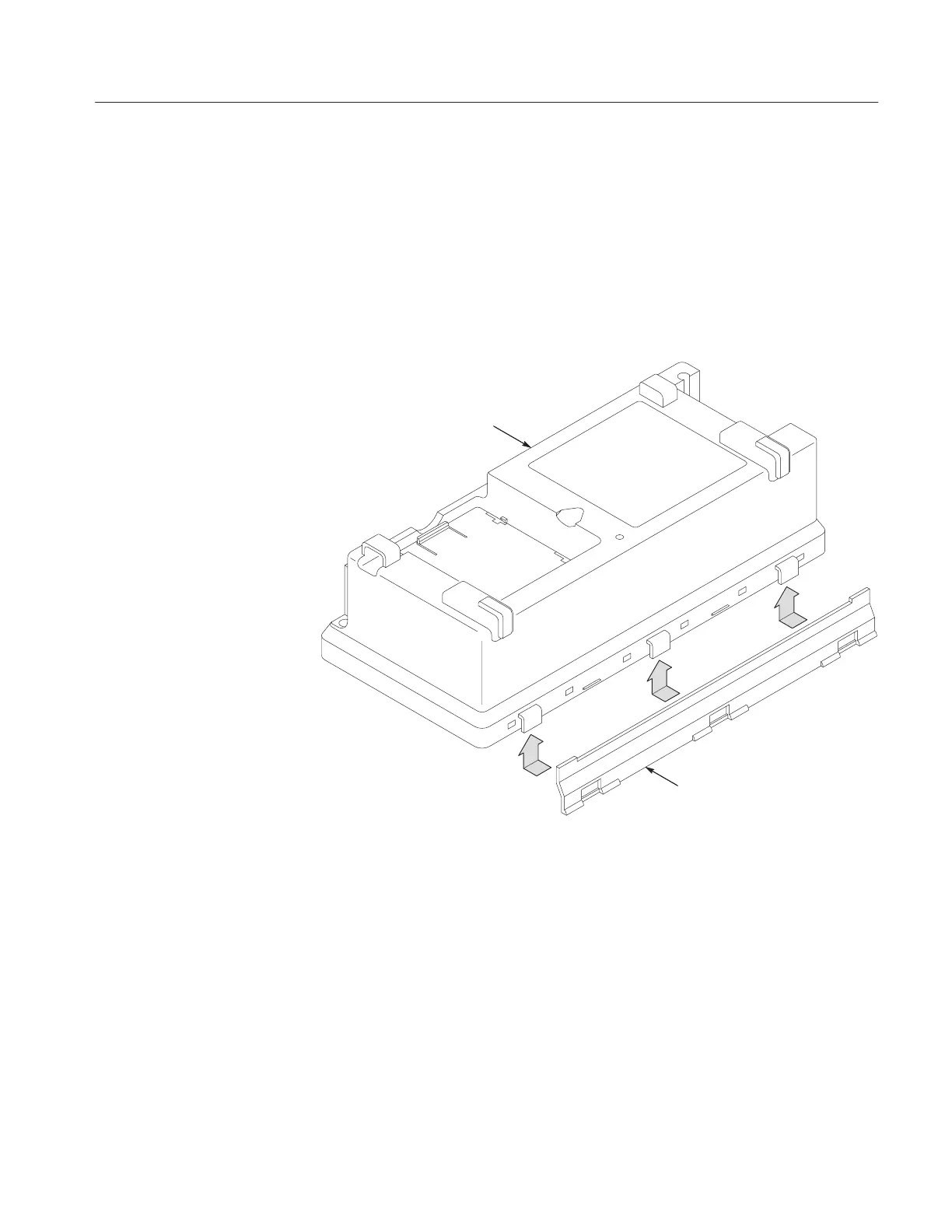

Use this procedure to install the flip stand.
1.
Orient the flip stand to the rear case, aligning the flip stand slots to the rear
case tabs as shown in Figure 6
–
11
.
2.
W
ith the stand in the folded up position, snap the stand into place.
3.
Use the installation procedures for each module removed to reassemble the
instrument.
Rear case
Flip stand
Figure 6
–
1
1: Installing the flip stand
74
