Tektronix TDS 220 Service Manual

Maintenance
TDS 200 Series Digital Oscilloscope Service Manual
6–17
You will need a torque-limiting Torx T-15 screwdriver and a flat-blade
screwdriver for this procedure.
Removal. First remove the handle, power button, and rear case using the
procedures on pages 6–12, 6–13, and 6–14. Then, slide the four EMI clips out of
the rear case as shown in Figure 6–9.
NOTE. The EMI clips can be pushed out from the rear of the case using a narrow
flat-blade screwdriver.
Installation. Slide the four EMI clips into the slots provided in the rear case as
shown in Figure 6–9. Use the installation procedures for each module removed to
reassemble the instrument.

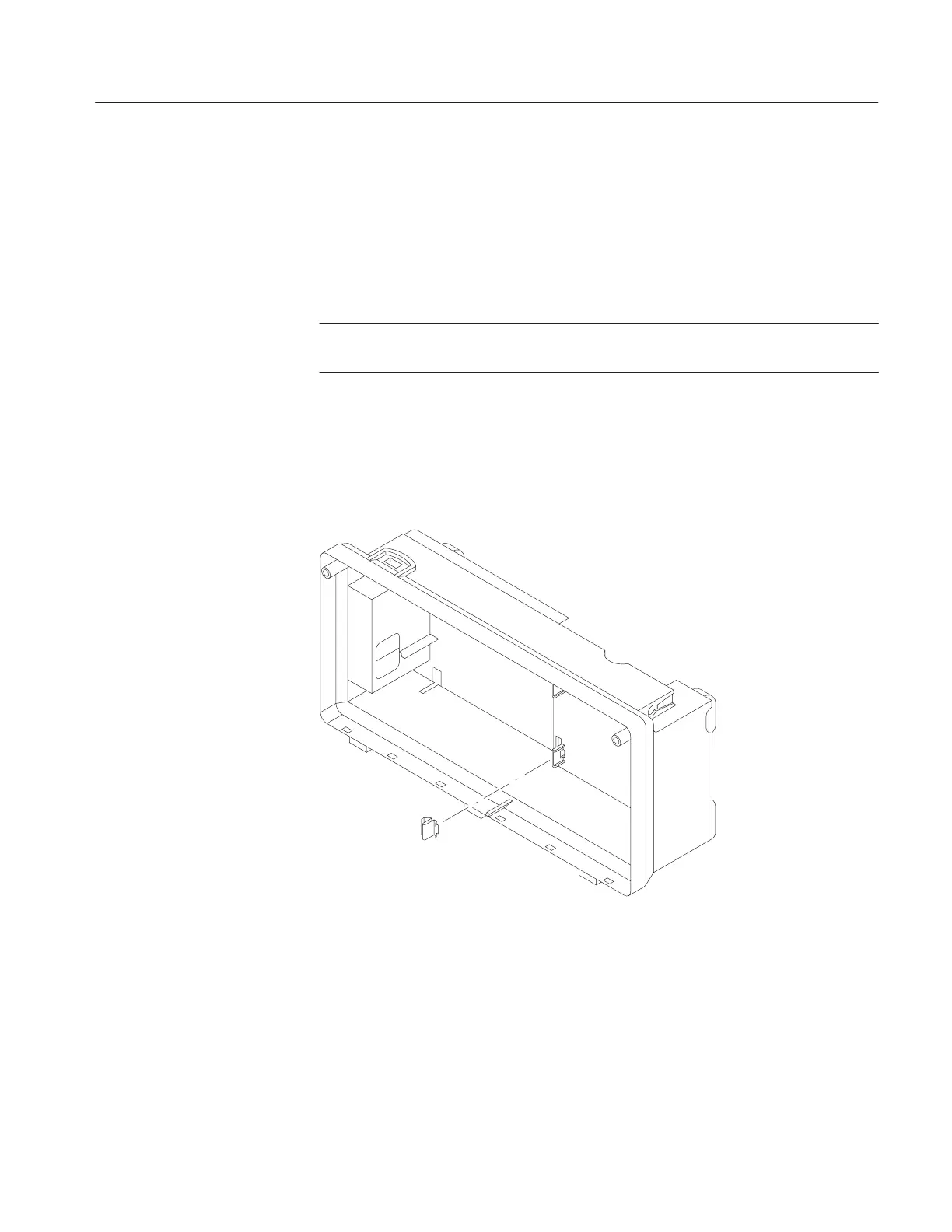

Figure 6–9: Removing and installing the EMI clips
EMI Clips
