TDS 200 Series Digital Oscilloscope Service Manual
You will need a sharp knife and needle-nose pliers to remove the front-case label.
CAUTION. Removal of a front-case label will destroy it. Do not remove it unless it
needs to be replaced.
Removal. Use the sharp knife to pry up a corner of the label and use the pliers to
peel the label off.
Installation. Use this procedure to install a new front-panel label in either a new
or the existing front case.
1. Peel the paper off the back side of the new label.
2. Handling the label by its edges only, align it with the recess in the front case
as shown in Figure 6–3.
3. When properly aligned, press the new label into place.

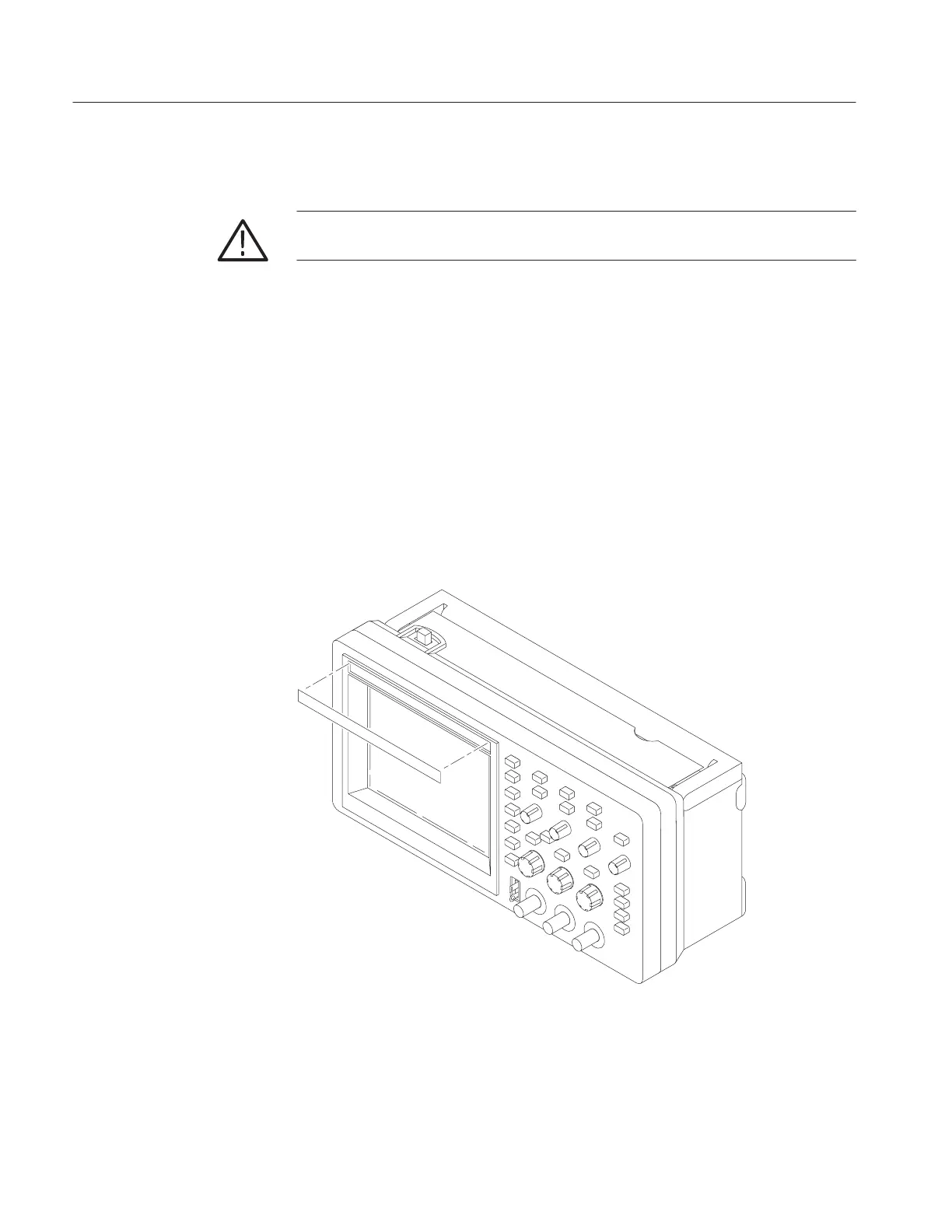

Figure 6–3: Installing a front-case label
Front-Case Label
