TOHATSU MX 50D2 User Manual

INSTALLATION14
3

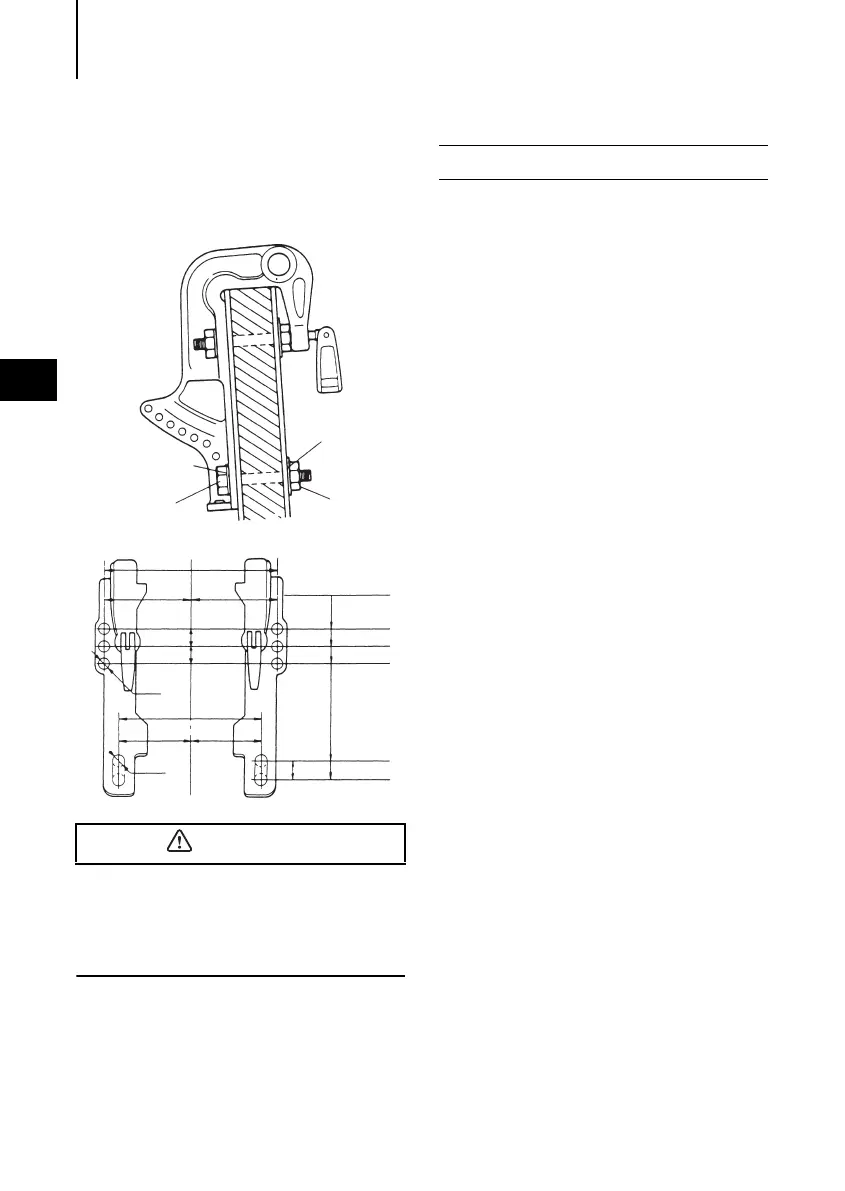

Clamp Bracket
Dimensional Drawing
 Manual tilting type
Mounting bolts should be installed with the
bolt head at inside surface of the transom.
Mounting bolts installed with the threaded
end at the inside surface of the transom
can cause personal injury.
A propeller must be selected so that the
engine rpm measured at wide open throt-
tle while cruising is within the max. operat-
ing range; 5,150 to 5,850 rpm
For genuine propellers, refer to PROPEL-
LER TABLE (p. 57).
Washer
(large diameter)
Bolt
(12mm x length 105mm)
Washer
(small diameter)
Nut
ø13
ø13
234(9.21”)
39(1.54”)
222(8.74”)
248(9.76”)
26 ( 1.02” )
204(8.03”)
25(0.98”)
25(0.98”)
64(2.52”)
89(3.50”)
117(4.61”)
102(4.02”)102(4.02”)
117(4.61”)
Top of t r a n som
CAUTION
2. Propeller Selection
MWX50D2_E.book Page 14 Thursday, August 18, 2011 5:29 PM
