Toro Workman MDX-D User Manual

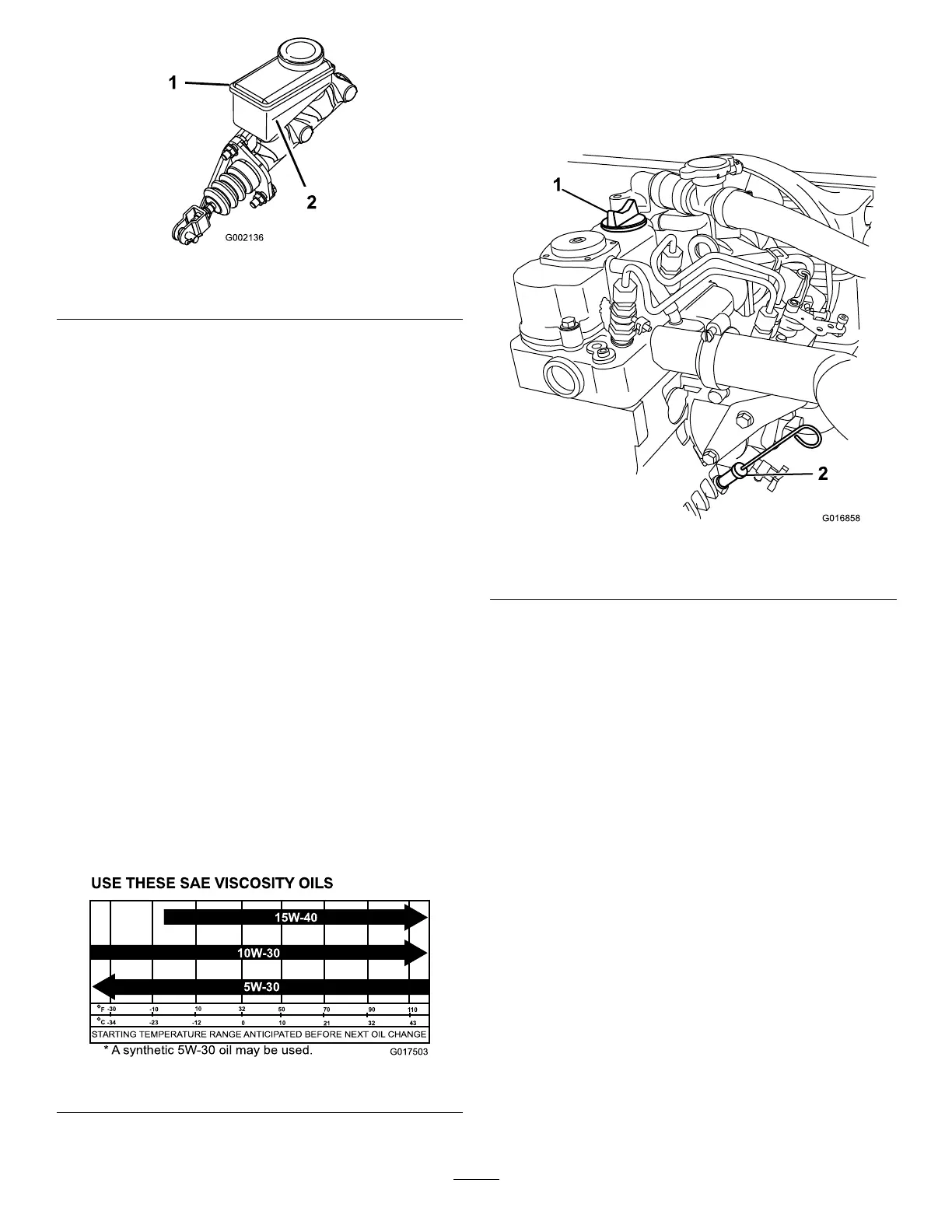

g002136
Figure17
1.Brake-uidreservoir
2.Minimumline
4.Iftheuidlevelislow,preformthefollowing:
A.Cleantheareaaroundthereservoircap
andremovethecap(Figure16).
B.AddDOT3brakeuidtothereservoiruntil
theuidlevelisabovetheMinimumline
(Figure17).
Note:Donotoverllthereservoirwith
brakeuid.
C.Installthereservoircap(Figure16).
5.Closethehoodofthemachine.
CheckingtheEngine-Oil
Level
ServiceInterval:BeforeeachuseordailyCheckthe
oillevelintheenginebeforethe
engineisrststarted.
Note:Themachineisshippedwithoilinthe
crankcase;however,checktheoilbeforeandafter
youstarttheengine.
OilType:Detergentoil(APIserviceCH-4,CI-4,CJ-4,
orhigher)
Viscosity:Seethetablebelow
g017503
Figure18
1.Movethemachinetoalevelsurface.
2.Raisethecargobox;refertoRaisingtheCargo
Box(page18).
3.Usearagtocleanaroundtheoildipstick(Figure
19)sothatdirtcannotfallintothedipsticktube
anddamagetheengine.
g016858
Figure19
1.Fillcap
2.Oildipstick
4.Removetheoildipstickandwipetheendclean.
5.Slidetheoildipstickintothedipsticktubefully
seatingit(Figure19).
6.Pullthedipstickoutandlookattheend(Figure
19).
Note:Iftheoillevelislow,removetheller
capfromtheengineandaddthespeciedoilto
raisethelevelupto,butnotover,theFullmark
onthedipstick.Addtheoilslowlyandcheckthe
leveloftenduringthisprocess.Donotoverll
theenginewithoil..
7.Installtheoildipstickandrmlyseatit(Figure
19).
8.Lowerthecargobox;refertoLoweringthe
CargoBox(page19).
