GreasingtheFrontWheel

Bearings

ServiceInterval:Every300hours

Greasespecication:MobilgreaseXHP™-222

RemovingtheHubandRotor

1.Liftthefrontofthemachineandsupportitwith

jackstands.

2.Removethe4lugnutsthatsecurethewheel

tothehub(Figure28).

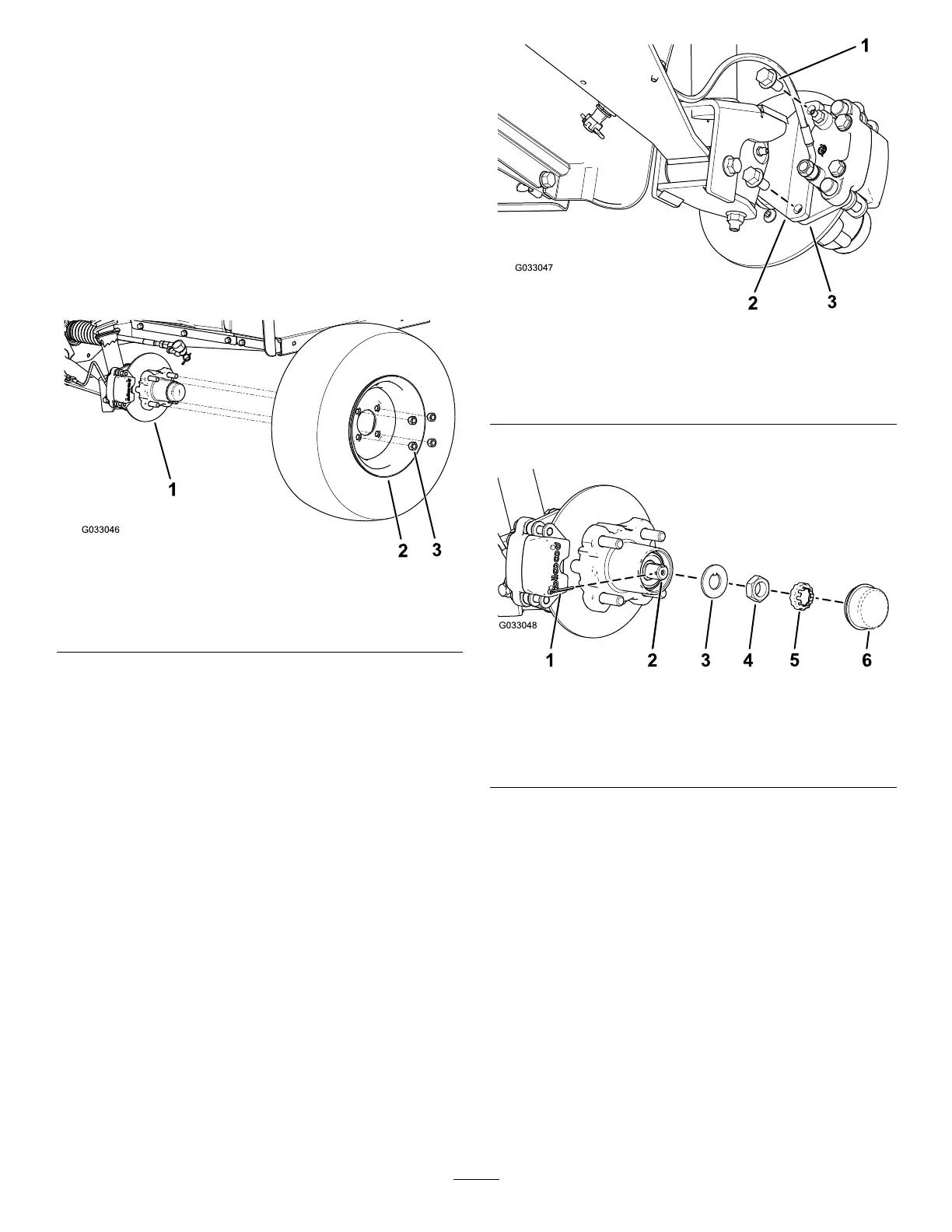

g033046

Figure28

1.Hub3.Lugnut

2.Wheel

3.Removetheange-headbolts(3/8x3/4inch)

thatsecurethebracketforthebrakeassembly

tothespindleandseparatethebrakefromthe

spindle(Figure29).

Note:Supportthebrakeassemblybefore

proceedingtothenextstep.

g033047

Figure29

1.Flange-headbolts(3/8x

3/4inch)

3.Caliperbracket(brake

assembly)

2.Spindle

4.Removethedustcapfromthehub(Figure30).

g033048

Figure30

1.Cotterpin4.Spindlenut

2.Spindle

5.Nutretainer

3.Tabwasher6.Dustcap

5.Removethecotterpinandnutretainerfromthe

spindleandspindlenut(Figure30).

6.Removethespindlenutfromthespindle,and

separatethehubandrotorassemblyfromthe

spindle(Figure30andFigure31).
