TP-Link TL-WR841HP User Manual

-97-
TL-WR841HP
300Mbps High Power Wireless N Router
 Click the Backup button to save all configuration settings as a backup file in your local
computer.
 To upgrade the router's configuration, follow these instructions.
 Click the Browse button to find the configuration file which you want to restore.
 Click the Restore button to update the configuration with the file whose path is the
one you have input or selected in the blank.
 Note:
The current configuration will be covered with the uploading configuration file. Wrong process will
lead the device unmanaged. The restoring process lasts for 20 seconds and the router will restart
automatically then. Keep the power of the router on during the process, in case of any damage.

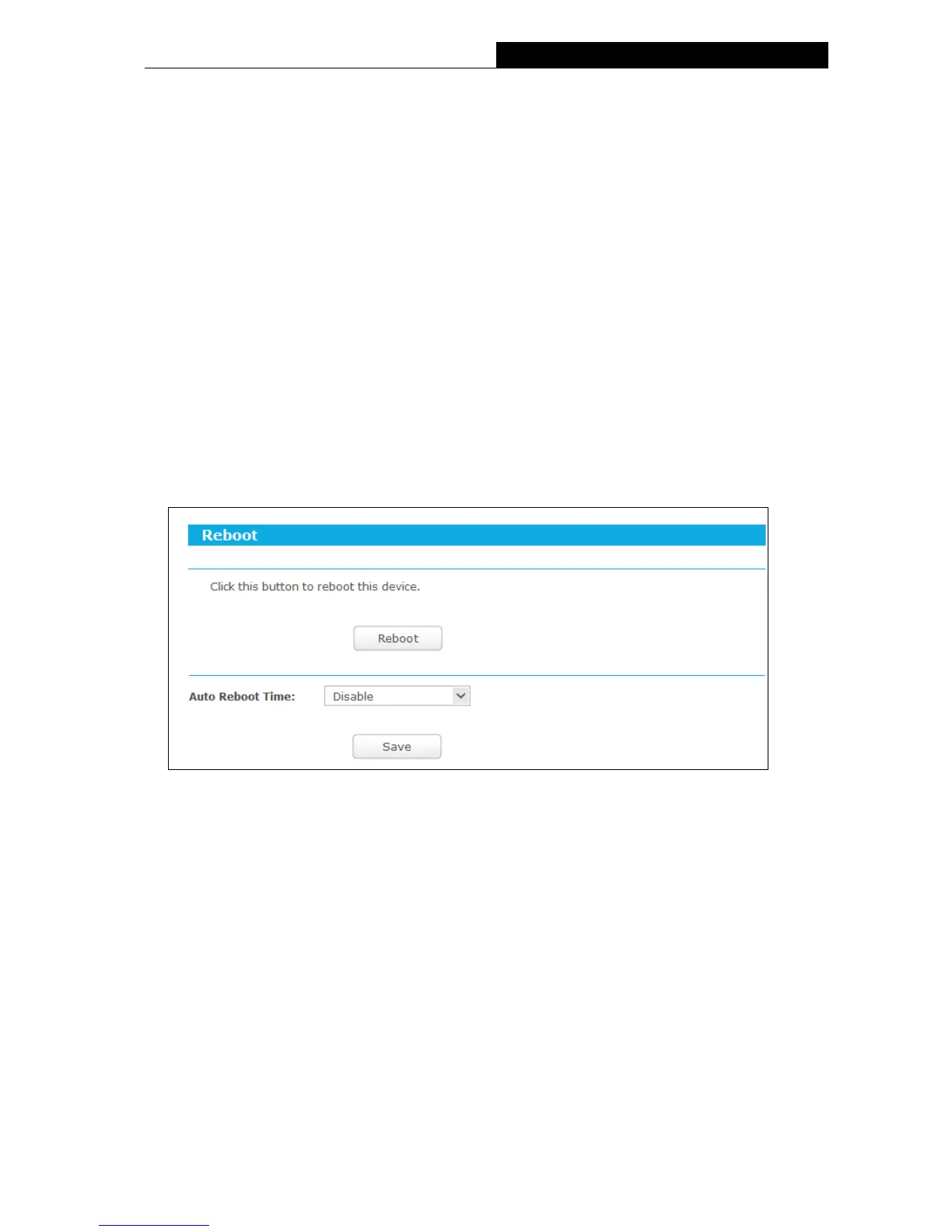

3.4.18.7. Reboot
Go to “Advanced→System Tools→Reboot”, and then you can reboot the router by clicking
the Reboot button or setting the auto reboot time.
 Click the Reboot button to reboot this device. Some settings of the router will take effect
only after rebooting, which include
 Change the LAN IP Address (system will reboot automatically).
 Upgrade the firmware of the router (system will reboot automatically).
 Restore the router's settings to factory defaults (system will reboot automatically).
 Update the configuration with the file (system will reboot automatically.
 Auto Reboot Time - Here you can also reboot the router in a specific time by setting the
Auto Reboot Time. There are two options: Disable and Schedule.
 Disable: If you don’t want to use this function, please choose Disable
 Schedule: If you want to reboot your router at a specific time, please select Schedule.

TP-Link TL-WR841HP Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Number of guest networks (2.4 GHz)	1
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
USB port	No
Ethernet LAN (RJ-45) ports	4
Supported network protocols	Dynamic IP, Static IP, PPPoE, PPTP, L2TP
NAT functionality	Virtual Server Port Forwarding Port Triggering DMZ UPnP
Security algorithms	WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
Transmit power	30 dBmW
Antennas quantity	2
Antenna connector type	-
Antenna gain level (max)	9 dBi
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Product type	Tabletop router
Product color	Black
Cables included	LAN (RJ-45)
WAN connection type	RJ-45
Output current	1 A
Output voltage	12 V
Power source type	DC

Weight and Dimensions

Depth	190 mm
Width	227.5 mm
Height	48.3 mm
