TP-Link TL-WR841HP User Manual

-5-
TL-WR841HP
300Mbps High Power Wireless N Router

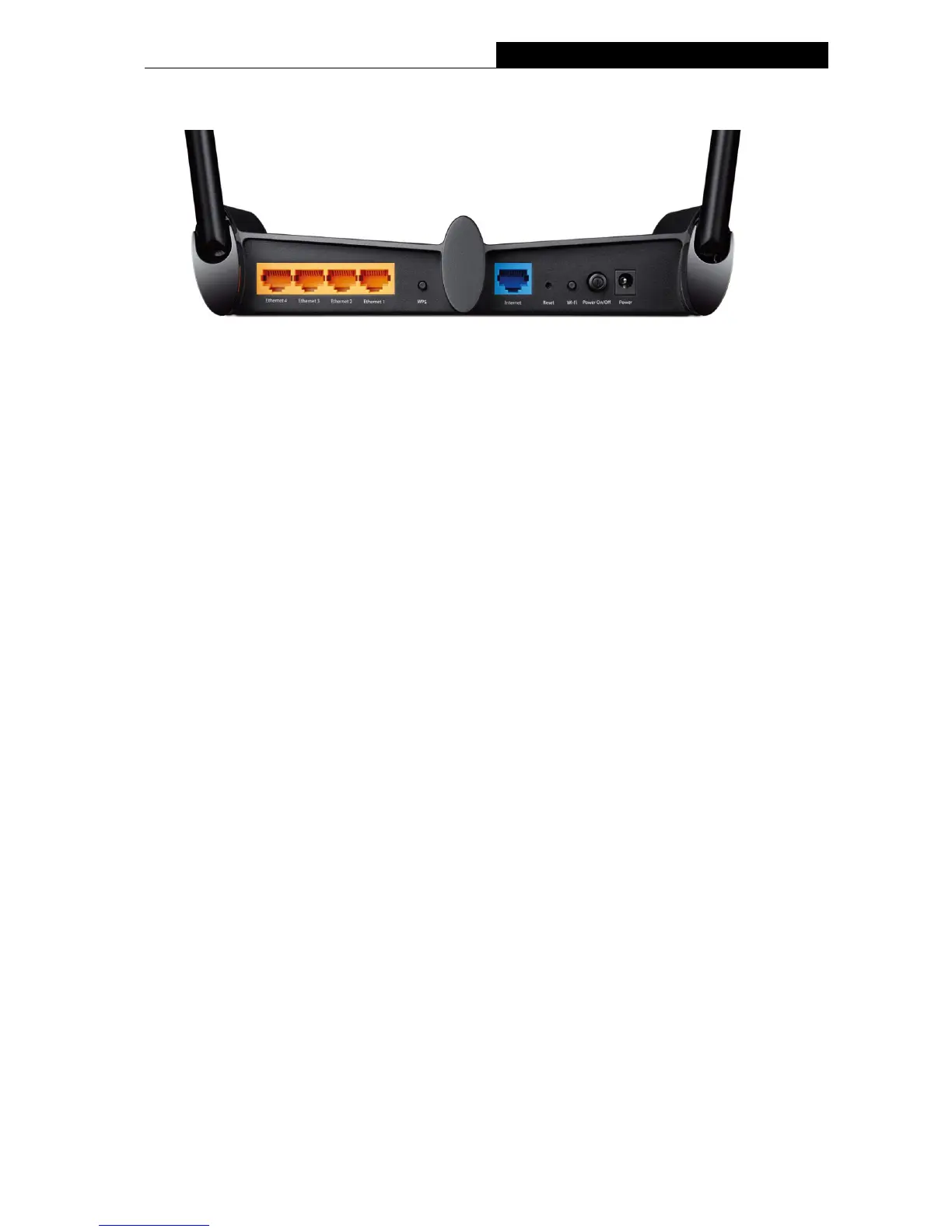

1.4.2 The Rear Panel
The following parts are located on the rear panel (View from left to right).
 Ethernet (1, 2, 3, 4): These ports (1, 2, 3, 4) connect the router to the local PC(s).
 WPS: If your clients, such as wireless adapters, that support Wi-Fi Protected Setup, then
you can press this button to quickly establish a connection between the router and clients
and automatically configure wireless security for your wireless network. The wireless
security will be automatically configured for your wireless network.
 Internet: This port is where you will connect the DSL/cable Modem, or Ethernet.
 Reset: With the router powered on, press and hold the Reset button until all LEDs turn
back on momentarily. And then release the button and wait the router to reboot to its factory
default settings.
 Wi-Fi: The button for the wireless function. Press and hold the wireless button for about 2
seconds to turn it on or off.
 Power On/Off: The switch for the power.
 Power: The Power socket is where you will connect the power adapter. Please use the
power adapter provided.
 Wireless antenna: To receive and transmit the wireless data.

TP-Link TL-WR841HP Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Number of guest networks (2.4 GHz)	1
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
USB port	No
Ethernet LAN (RJ-45) ports	4
Supported network protocols	Dynamic IP, Static IP, PPPoE, PPTP, L2TP
NAT functionality	Virtual Server Port Forwarding Port Triggering DMZ UPnP
Security algorithms	WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
Transmit power	30 dBmW
Antennas quantity	2
Antenna connector type	-
Antenna gain level (max)	9 dBi
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Product type	Tabletop router
Product color	Black
Cables included	LAN (RJ-45)
WAN connection type	RJ-45
Output current	1 A
Output voltage	12 V
Power source type	DC

Weight and Dimensions

Depth	190 mm
Width	227.5 mm
Height	48.3 mm
