TP-Link TL-WR841HP User Manual

-63-
TL-WR841HP
300Mbps High Power Wireless N Router

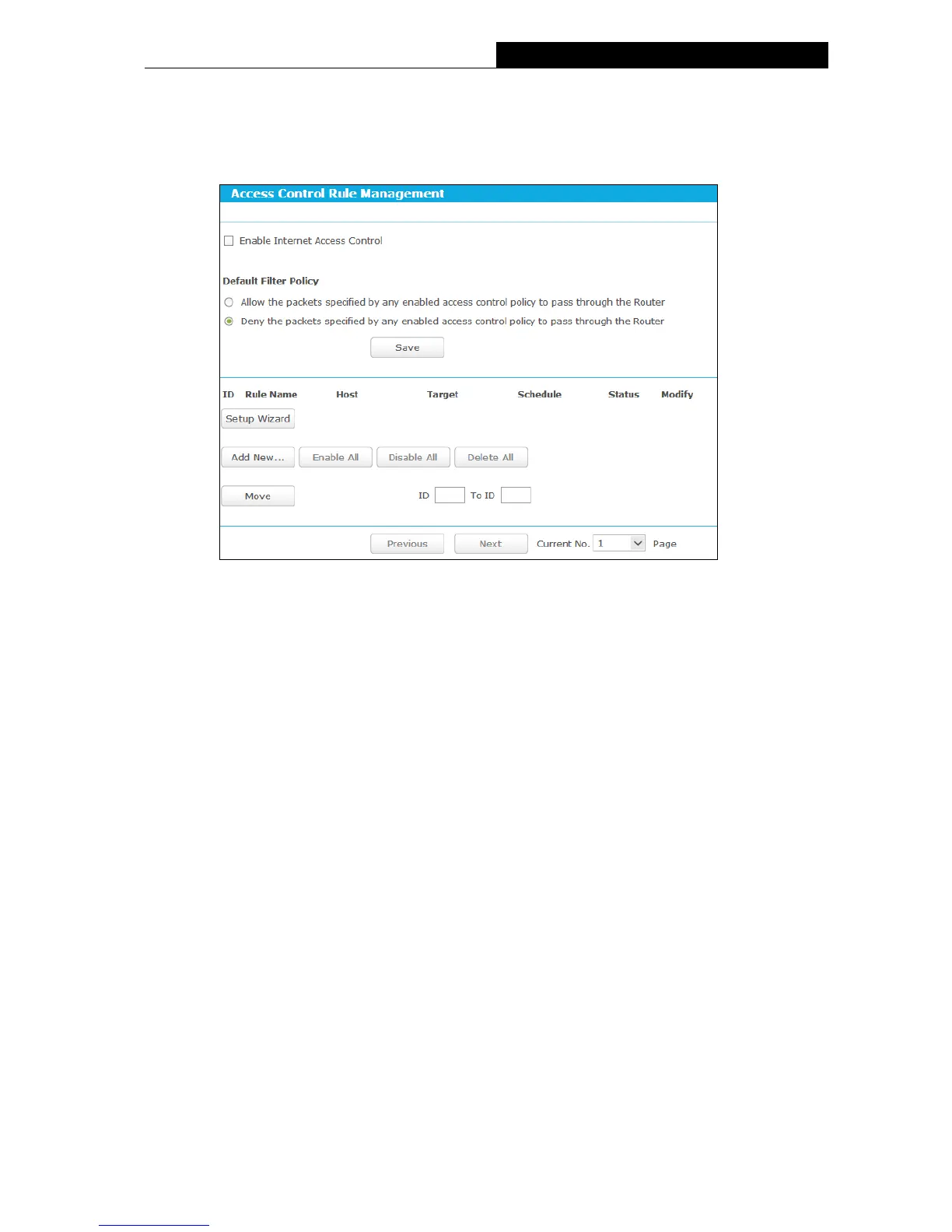

3.4.10.1. Rule
Go to “Advanced→Access Control→Rule”, and then you can view and set Access Control
rules in this page.
 Enable Internet Access Control - Select the checkbox to enable the Internet Access
Control function, so the Default Filter Policy can take effect.
 Rule Name - Displays the name of the rule and this name is unique.
 Host - Displays the host selected in the corresponding rule.
 Target - Displays the target selected in the corresponding rule.
 Schedule - Displays the schedule selected in the corresponding rule.
 Status - Displays the status of the rule, enabled or not. Select the corresponding checkbox
to enable the entry.
 Modify - Here you can edit or delete an existing rule.
 Setup Wizard - Click the Setup Wizard button to create a new rule entry.
 Add New... - Click the Add New... button to add a new rule entry.
 Enable All - Click the Enable All button to enable all the rules in the list.
 Disable All - Click the Disable All button to disable all the rules in the list.
 Delete All - Click the Delete All button to delete all the entries in the table.
 Move - You can change the entry’s order as desired. Enter in the first box the ID number of
the entry you want to move and in the second box another ID number, and then click the
Move button to change the entries’ order.
Click the Next button to go to the next page.

TP-Link TL-WR841HP Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Number of guest networks (2.4 GHz)	1
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
USB port	No
Ethernet LAN (RJ-45) ports	4
Supported network protocols	Dynamic IP, Static IP, PPPoE, PPTP, L2TP
NAT functionality	Virtual Server Port Forwarding Port Triggering DMZ UPnP
Security algorithms	WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
Transmit power	30 dBmW
Antennas quantity	2
Antenna connector type	-
Antenna gain level (max)	9 dBi
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Product type	Tabletop router
Product color	Black
Cables included	LAN (RJ-45)
WAN connection type	RJ-45
Output current	1 A
Output voltage	12 V
Power source type	DC

Weight and Dimensions

Depth	190 mm
Width	227.5 mm
Height	48.3 mm
