-98-
TL-WR841HP
300Mbps High Power Wireless N Router
Day: Choose Everyday, or choose Select Days and select the certain day (days) to
reboot the router.
Time: Specify the time in HHMM format for auto reboot.

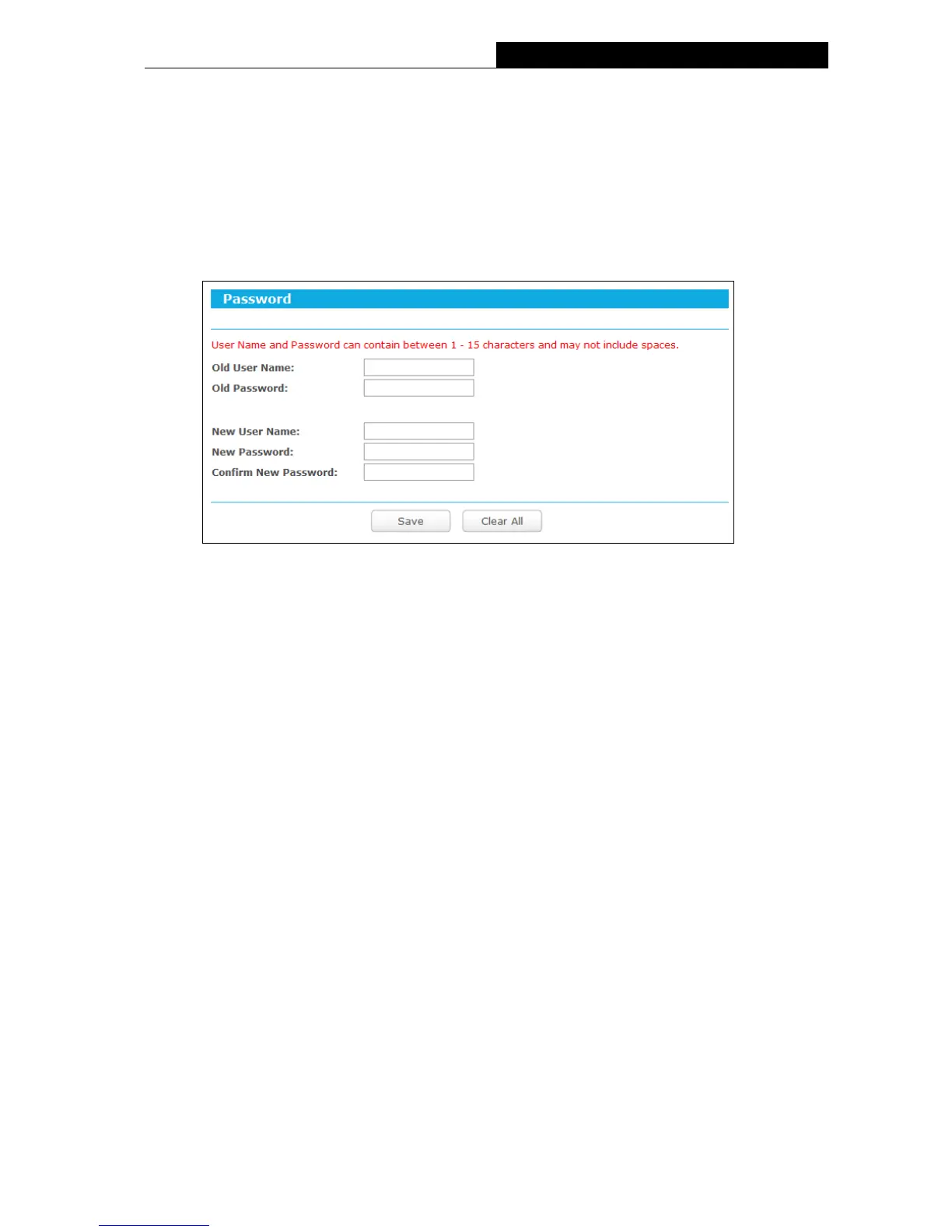

3.4.18.8. Password
Go to AdvancedSystem ToolsPassword”, and then you can change the factory default
user name and password of the router in the next screen as shown below
It is strongly recommended that you should change the factory default user name and password
of the router, because all users who try to access the router's Web-based utility or Quick Setup
will be prompted for the router's default user name and password.
Note:
The new user name and password must not exceed 15 characters in length and not include any
spaces. Enter the new Password twice to confirm it.
Click the Save button when finished.
Click the Clear All button to clear all.
3.4.18.9. System Log
Go to AdvancedSystem ToolsSystem Log, and then you can view the logs of the
router.
