TP-Link TL-WR841HP User Manual

-4-
TL-WR841HP
300Mbps High Power Wireless N Router

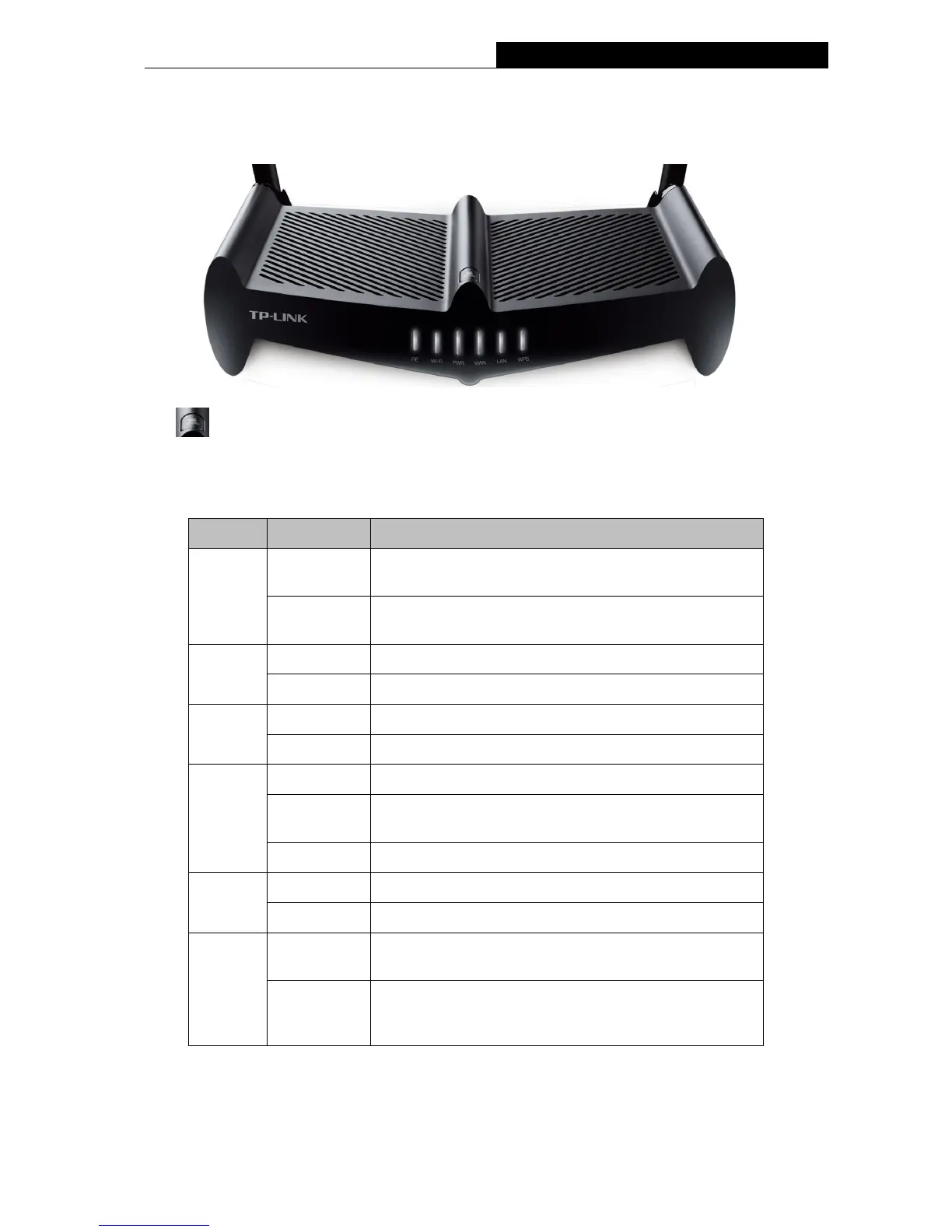

1.4 Panel Layout
1.4.1 The Front Panel
 RE button: The button for the Range Extender mode. Press and hold it for about 3
seconds to change to the Range Extender mode.
The router’s LEDs are located on the front panel (View from left to right).
Name
Status
Indication
RE
Blinking
The router is connecting to the host network. This
process will last in the first 2 minutes.
On
The router has been successfully connected to the host
network, and it is working in Range Extender mode.
Wi-Fi
Off
The wireless function is disabled.
On
The wireless function is enabled.
PWR
Blinking
The router is updating or initializing.
On
The router is working in a normal status.
WAN
Off
No connection.
On(Orange)
The router’s Internet port has been connected but the
Internet is unavailable.
On
The Internet is available.
LAN
On
There is a device connected to the corresponding port.
Off
No connection.
WPS
Blinking
A wireless device is connecting to the network by WPS
function. This process will last in the first 2 minutes.
On
A wireless device has been successfully added to the
network by WPS function. The WPS LED will be off
after 5 minutes.

TP-Link TL-WR841HP Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Number of guest networks (2.4 GHz)	1
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
USB port	No
Ethernet LAN (RJ-45) ports	4
Supported network protocols	Dynamic IP, Static IP, PPPoE, PPTP, L2TP
NAT functionality	Virtual Server Port Forwarding Port Triggering DMZ UPnP
Security algorithms	WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
Transmit power	30 dBmW
Antennas quantity	2
Antenna connector type	-
Antenna gain level (max)	9 dBi
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Product type	Tabletop router
Product color	Black
Cables included	LAN (RJ-45)
WAN connection type	RJ-45
Output current	1 A
Output voltage	12 V
Power source type	DC

Weight and Dimensions

Depth	190 mm
Width	227.5 mm
Height	48.3 mm
