TP-Link TL-WR841HP User Manual

-22-
TL-WR841HP
300Mbps High Power Wireless N Router

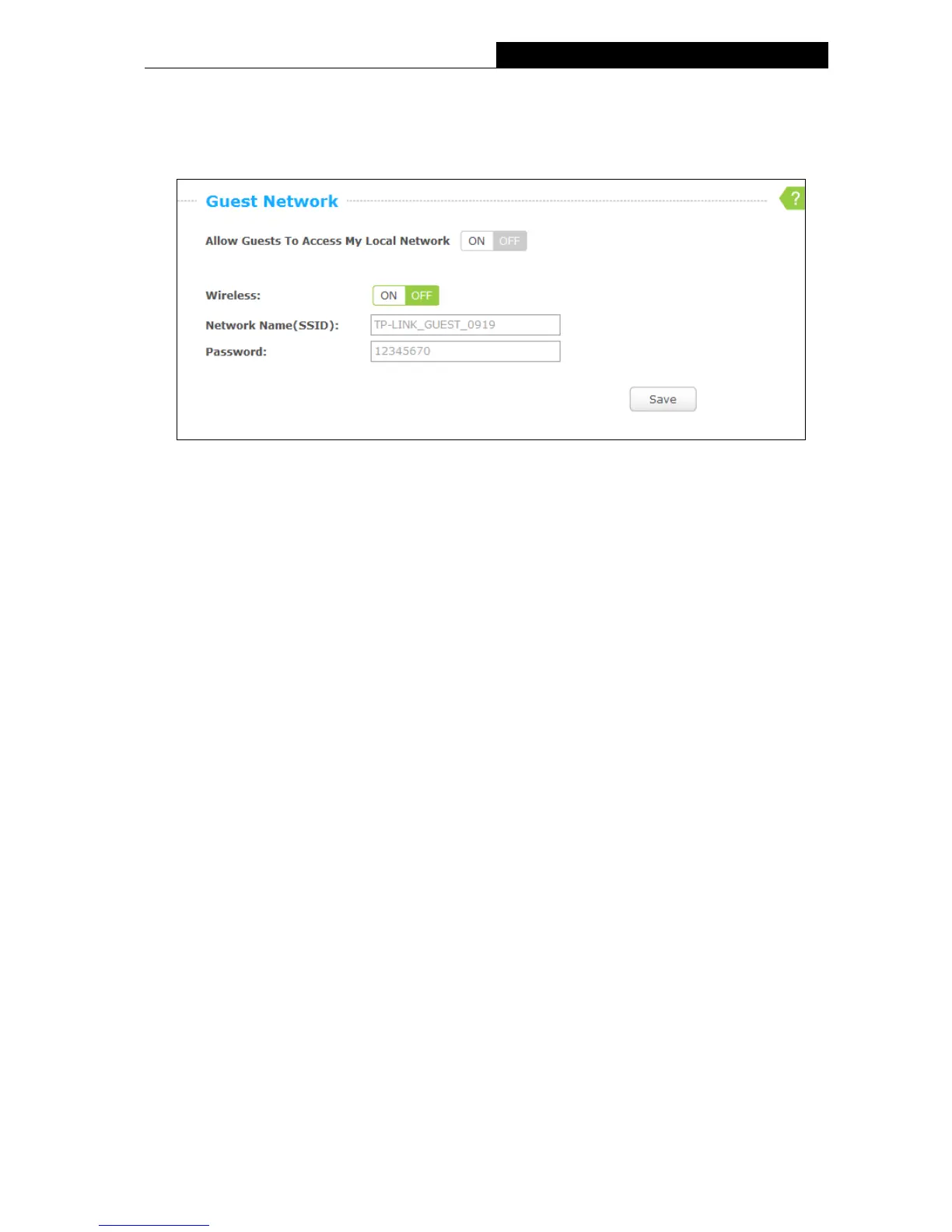

3.3.4 Guest Network
Choosing menu “Basic→Guest Network”, you can configure the basic setting for guest
Network.
 Allow Guests To Access My Local Network - Click ON/OFF to enable or disable this
feature. If enabled, guests can communicate with hosts.
 Wireless - Click ON/OFF to enable or disable your Guest network. If enabled, the wireless
stations will be able to access the Router, otherwise, wireless stations will not be able to
access the Router.
 Network Name (SSID) - Create a name (up to 32 characters) for your Guest network. The
same Name (SSID) must be assigned to all wireless devices in your Guest Network.
 Password - Create a password for your wireless network. The password must have a
minimum of 8 characters in length.
Click the Save button to save your settings.
3.4 Advanced
Click “Advanced”, then you will see the main menus on the left of the Web Management Page.
On the right, there are the corresponding explanations and instructions.

TP-Link TL-WR841HP Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Number of guest networks (2.4 GHz)	1
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
USB port	No
Ethernet LAN (RJ-45) ports	4
Supported network protocols	Dynamic IP, Static IP, PPPoE, PPTP, L2TP
NAT functionality	Virtual Server Port Forwarding Port Triggering DMZ UPnP
Security algorithms	WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
Transmit power	30 dBmW
Antennas quantity	2
Antenna connector type	-
Antenna gain level (max)	9 dBi
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Product type	Tabletop router
Product color	Black
Cables included	LAN (RJ-45)
WAN connection type	RJ-45
Output current	1 A
Output voltage	12 V
Power source type	DC

Weight and Dimensions

Depth	190 mm
Width	227.5 mm
Height	48.3 mm
