TP-Link TL-WR841HP User Manual

-48-
TL-WR841HP
300Mbps High Power Wireless N Router
 Address Lease Time - The Address Lease Time is the amount of time a network user
will be allowed connection to the router with their current dynamic IP Address. Enter the
amount of time in minutes and the user will be "leased" this dynamic IP Address. After the
time is up, the user will be automatically assigned a new dynamic IP address. The range
of the time is 1 ~ 2880 minutes. The default value is 120 minutes.
 Default Gateway - (Optional.) It is suggested to input the IP address of the Ethernet port
of the router. The default value is 192.168.0.1.
 Default Domain - (Optional) Input the domain name of your network.
 Primary DNS - (Optional) Input the DNS IP address provided by your ISP or consult your ISP.
 Secondary DNS - (Optional.) Input the IP address of another DNS server if your ISP
provides two DNS servers.

Note:
To use the DHCP server function of the router, you must configure all computers on the LAN as
"Obtain an IP Address automatically".

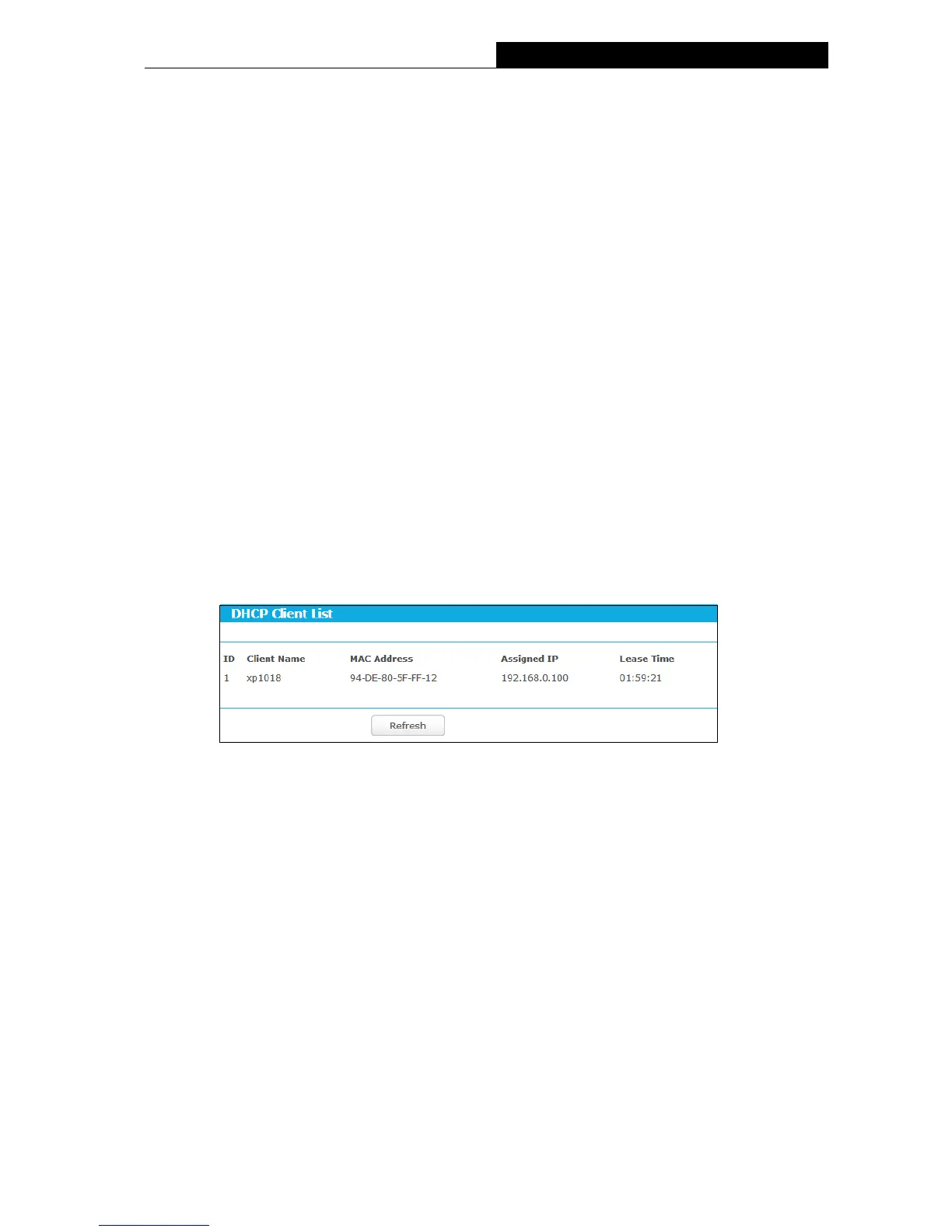

3.4.6.2. DHCP Clients List
Go to “Advanced→DHCP→DHCP Clients List”, you can view the information about the
clients connected to the router.
 Client Name - The name of the DHCP client
 MAC Address - The MAC address of the DHCP client
 Assigned IP - The IP address that the router has allocated to the DHCP client
 Lease Time - The time of the DHCP client leased. After the dynamic IP address has
expired, a new dynamic IP address will be automatically assigned to the user.
You cannot change any of the values on this page. To update this page and to show the
current attached devices, click the Refresh button.
3.4.6.3. Address Reservation
Go to “Advanced→DHCP→Address Reservation”, you can view and add a reserved address
for clients. When you specify a reserved IP address for a PC on the LAN, that PC will always
receive the same IP address each time when it accesses the DHCP server. Reserved IP
addresses should be assigned to the servers that require permanent IP settings.

TP-Link TL-WR841HP Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Number of guest networks (2.4 GHz)	1
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
USB port	No
Ethernet LAN (RJ-45) ports	4
Supported network protocols	Dynamic IP, Static IP, PPPoE, PPTP, L2TP
NAT functionality	Virtual Server Port Forwarding Port Triggering DMZ UPnP
Security algorithms	WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
Transmit power	30 dBmW
Antennas quantity	2
Antenna connector type	-
Antenna gain level (max)	9 dBi
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Product type	Tabletop router
Product color	Black
Cables included	LAN (RJ-45)
WAN connection type	RJ-45
Output current	1 A
Output voltage	12 V
Power source type	DC

Weight and Dimensions

Depth	190 mm
Width	227.5 mm
Height	48.3 mm
