TP-Link TL-WR841HP User Manual

-67-
TL-WR841HP
300Mbps High Power Wireless N Router

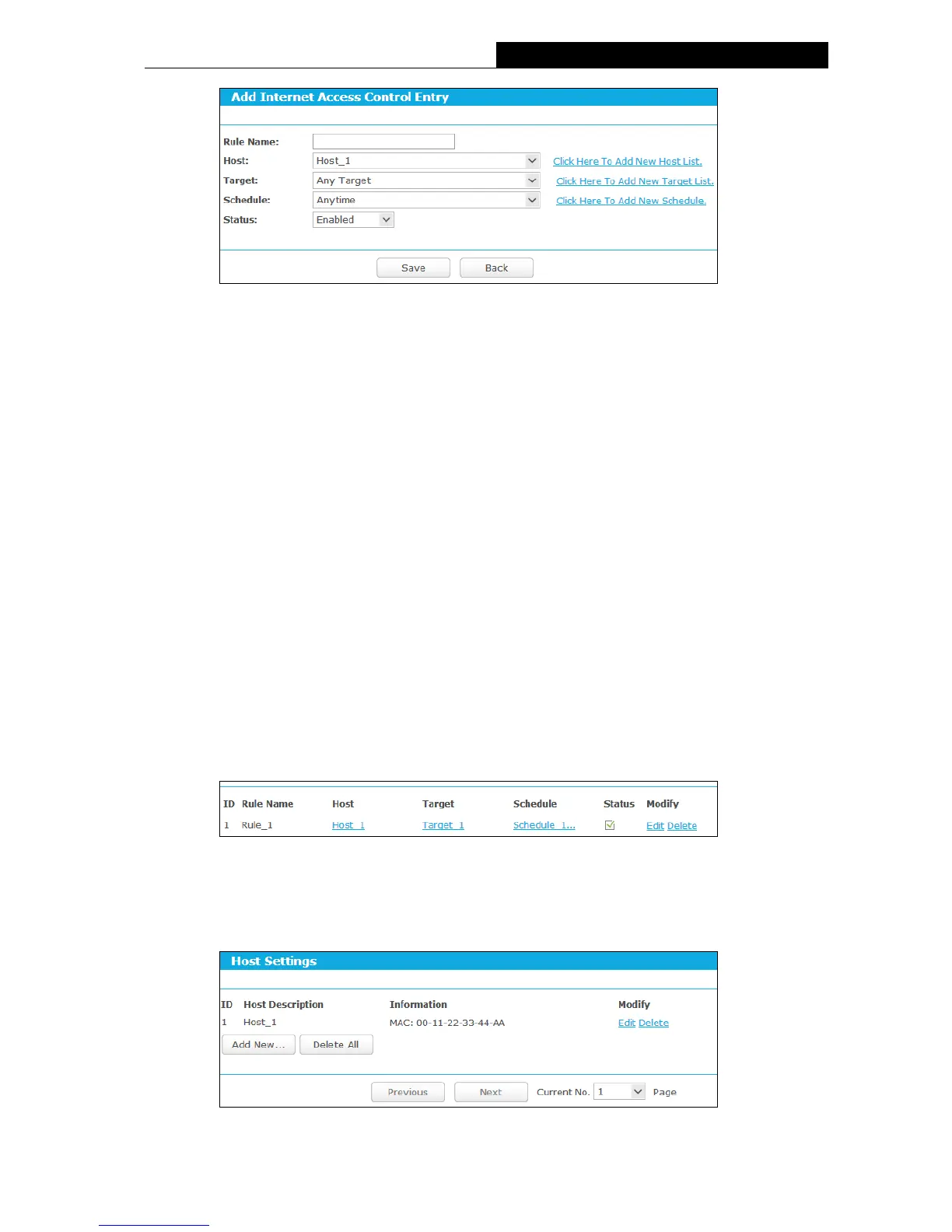

For example: If you desire to allow the host with MAC address 00-11-22-33-44-AA to access
www.tp-link.com only from 18:00 to 20:00 on Saturday and Sunday, and forbid other hosts in
the LAN to access the Internet, you should follow the settings below:
1. Click the menu Access Control on the left. Select Enable Internet Access Control and
choose "Allow the packets specified by any enabled access control policy to pass
through the router".
2. Click Setup Wizard button.
3. Add a new host with the Host Description is Host_1 and MAC Address is
00-11-22-33-44-AA, and click Next.
4. Add a new target with the Target Description is Target_1 and Domain Name is
www.tp-link.com, and click Next.
5. Add a new schedule with the Schedule Description is Schedule_1, Day is Sat and Sun,
Start Time is 1800 and Stop Time is 2000, and click Next.
6. Add a new rule with the Rule Description is Rule_1, Host is Host_1, Target is Target_1,
Schedule is Schedule_1, and Status is Enabled, and click Finish.
Then you will go back to the Access Control Rule Management page and see the following list.
3.4.10.2. Host
Go to “Advanced→Access Control→Host”, and then you can view and set a Host list in the
screen as shown below. The host list is necessary for the Access Control Rule.
 Host Description - Displays the description of the host and this description is unique.

TP-Link TL-WR841HP Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Number of guest networks (2.4 GHz)	1
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
USB port	No
Ethernet LAN (RJ-45) ports	4
Supported network protocols	Dynamic IP, Static IP, PPPoE, PPTP, L2TP
NAT functionality	Virtual Server Port Forwarding Port Triggering DMZ UPnP
Security algorithms	WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
Transmit power	30 dBmW
Antennas quantity	2
Antenna connector type	-
Antenna gain level (max)	9 dBi
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Product type	Tabletop router
Product color	Black
Cables included	LAN (RJ-45)
WAN connection type	RJ-45
Output current	1 A
Output voltage	12 V
Power source type	DC

Weight and Dimensions

Depth	190 mm
Width	227.5 mm
Height	48.3 mm
