TP-Link TL-WR841HP User Manual

-130-
TL-WR841HP
300Mbps High Power Wireless N Router

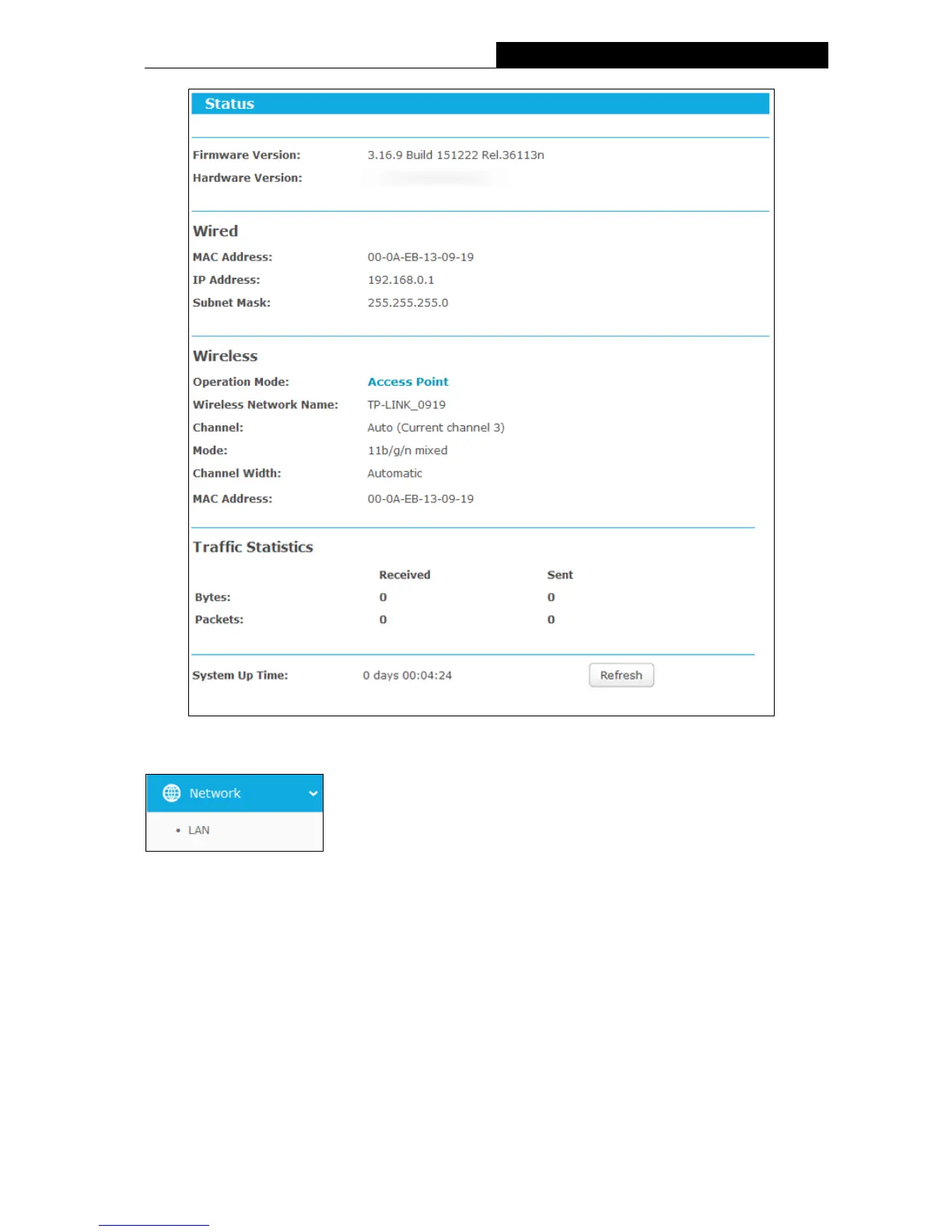

5.3.2 Network
There is one submenu under the Network menu: LAN. Click it, and you will be able to configure
the corresponding function.
5.3.2.1. LAN
Go to “Setting→Network→LAN”, and then you can configure the IP parameters of LAN on this
page.

TP-Link TL-WR841HP Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Number of guest networks (2.4 GHz)	1
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
USB port	No
Ethernet LAN (RJ-45) ports	4
Supported network protocols	Dynamic IP, Static IP, PPPoE, PPTP, L2TP
NAT functionality	Virtual Server Port Forwarding Port Triggering DMZ UPnP
Security algorithms	WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
Transmit power	30 dBmW
Antennas quantity	2
Antenna connector type	-
Antenna gain level (max)	9 dBi
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Product type	Tabletop router
Product color	Black
Cables included	LAN (RJ-45)
WAN connection type	RJ-45
Output current	1 A
Output voltage	12 V
Power source type	DC

Weight and Dimensions

Depth	190 mm
Width	227.5 mm
Height	48.3 mm
