TP-Link TL-WR841HP User Manual

-81-
TL-WR841HP
300Mbps High Power Wireless N Router

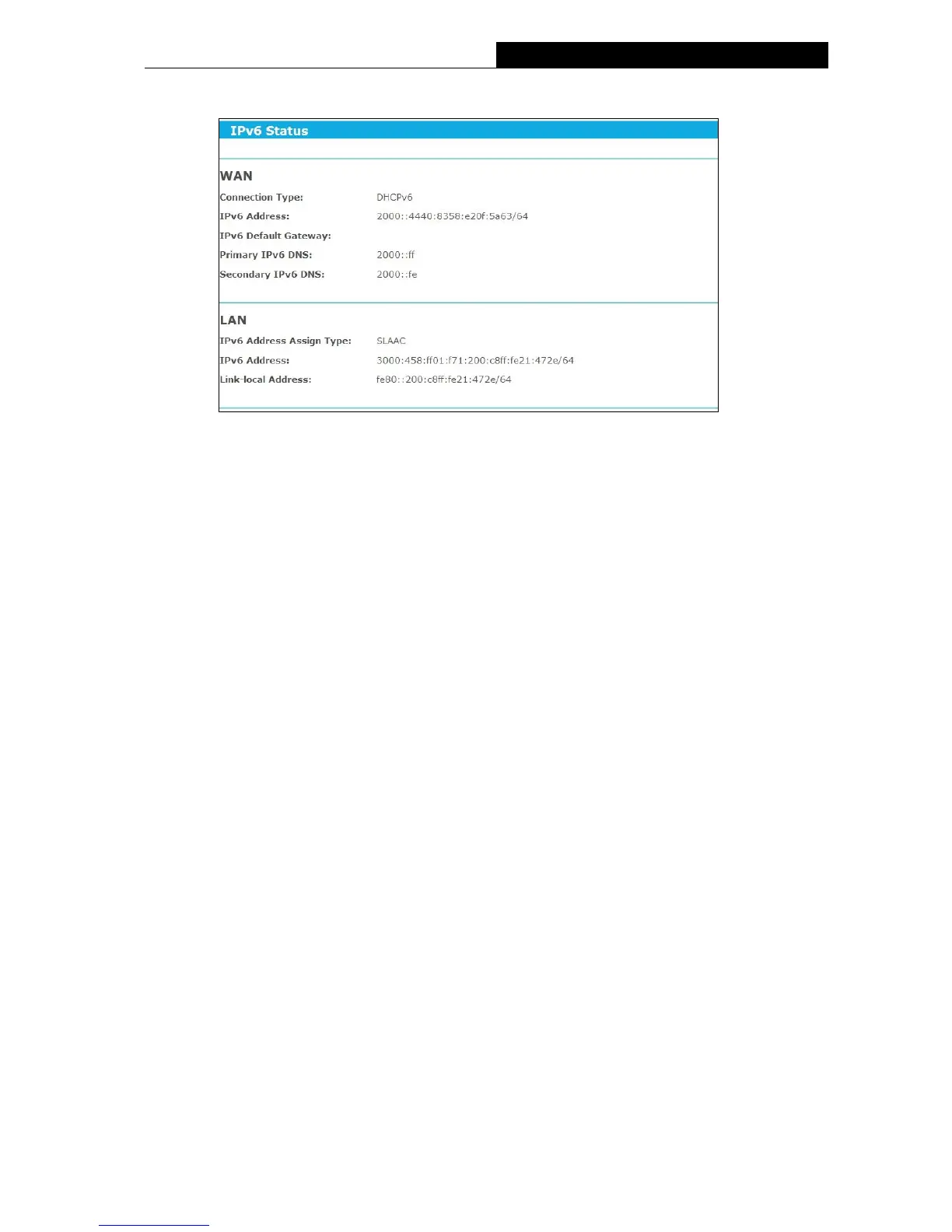

3.4.17.1. IPv6 Status
The IPv6 Status page displays the router's current IPv6 status and configuration. All
information is read-only.
 WAN
 Connection Type - The IPv6 connection way for WAN
 IPv6 Address - The WAN IPv6 address
 IPv6 Default Gateway - The router's default gateway
 Primary IPv6 DNS - The primary IPv6 DNS address
 Secondary IPv6 DNS - The secondary IPv6 DNS address
 LAN
 IPv6 Address Assign Type - There are two types of assignation for IPv6 address:
SLAAC (Stateless address auto-configuration) and DHCPv6 (Dynamic Host
Configuration Protocol for IPv6) Server.
1) SLAAC
 IPv6 Address Prefix -The Prefix of IPv6 Address
2) DHCPv6 Server
 Release Time - the length of time a network user will be allowed to keep
connecting to the router with the current DHCPv6 Address. Enter the amount of
time (in seconds) that the DHCPv6 address will be leased. The time range is
1~691200 seconds. The default value is 86400 seconds.
 IPv6 Address - Displays the LAN IPv6 Address.

TP-Link TL-WR841HP Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Number of guest networks (2.4 GHz)	1
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
USB port	No
Ethernet LAN (RJ-45) ports	4
Supported network protocols	Dynamic IP, Static IP, PPPoE, PPTP, L2TP
NAT functionality	Virtual Server Port Forwarding Port Triggering DMZ UPnP
Security algorithms	WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
Transmit power	30 dBmW
Antennas quantity	2
Antenna connector type	-
Antenna gain level (max)	9 dBi
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Product type	Tabletop router
Product color	Black
Cables included	LAN (RJ-45)
WAN connection type	RJ-45
Output current	1 A
Output voltage	12 V
Power source type	DC

Weight and Dimensions

Depth	190 mm
Width	227.5 mm
Height	48.3 mm
