Controls Interface
Date/Time Subscreen

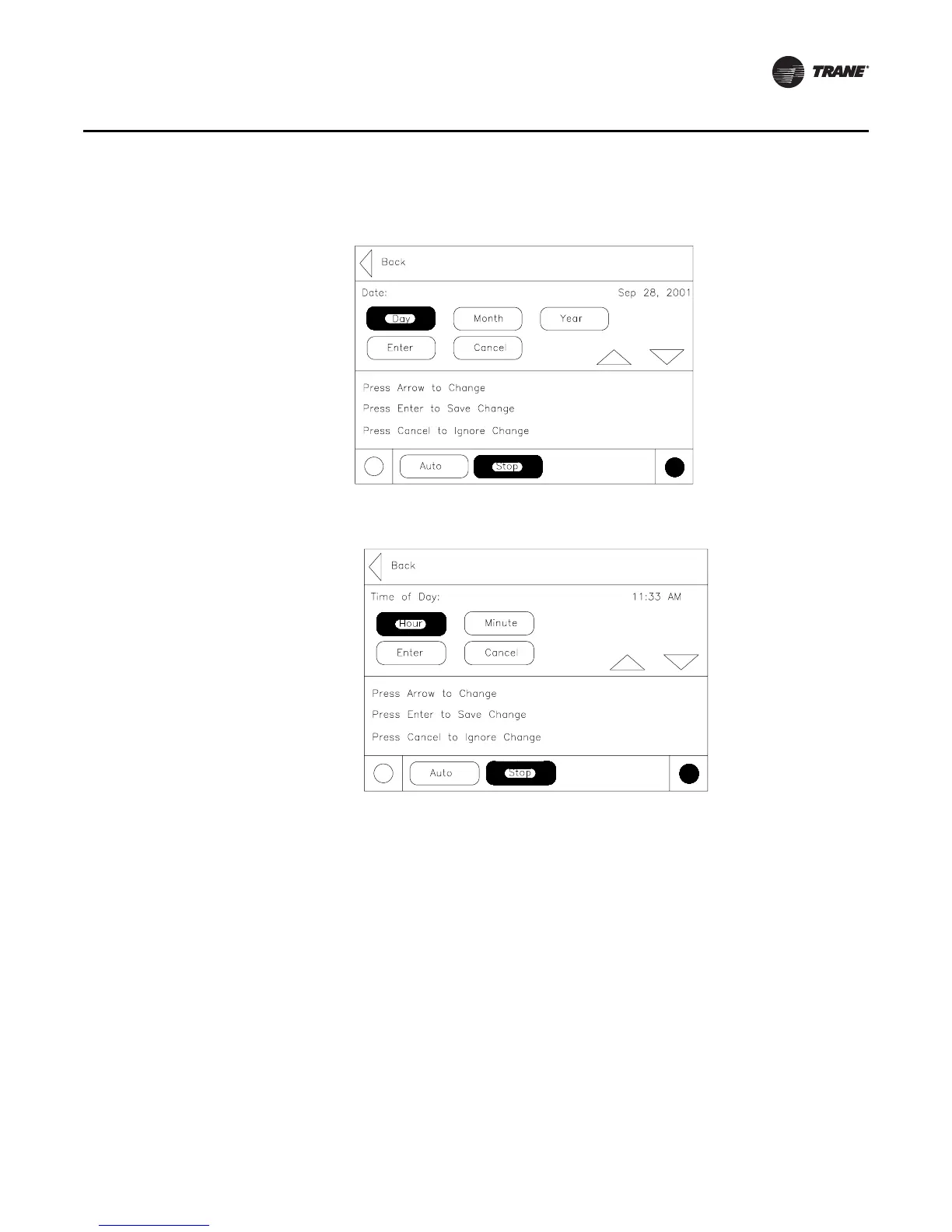

The setpoint screen for setting up the CH530 date is shown below: The user must select Day, Month,
or Year and then use the up/down arrows to adjust.
The setpoint screen for setting up the CH530 time with a 12 hour format is shown below: The user
must select Hour, or Minute and then use the up/down arrows to adjust. Adjusting hours will also
adjust am/pm.
Lockout Screen
The DynaView Display and Touch Screen Lock screen is shown. This screen is used if the Display
and Touch Screen Lock feature is Enabled. Thirty minutes after the last key stroke this screen will
be displayed and the Display and Touch Screen will be locked out until “159 Enter” is entered.
