Trane CGAM User Manual

CG-SVX17D-EN 33
Unit Dimensions/Weights

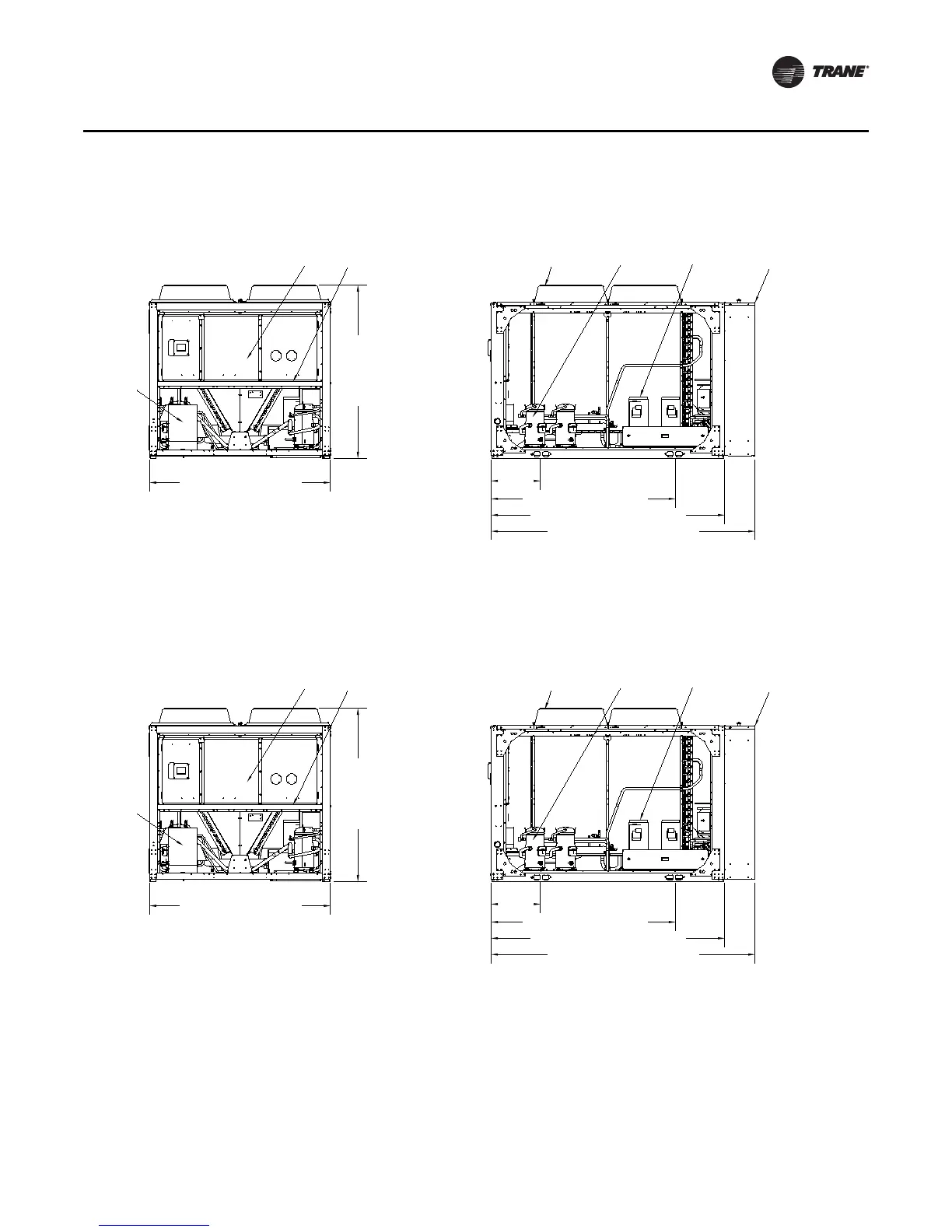

Figure 25. Sizes 40 and 52 ton — pump package, buffer tank, partial heat recovery
Buffer Tank
Pump Package
Compressor
Fan
Wire Connection
Control Panel
Pump
Package
VFD
88.6 in (2250 mm)
84.8 in
(2155 mm)
23.7 in (602 mm)
89.9 in (2282 mm)
114.4 in (2906 mm)
134.7 in (3421 mm)
Length w/ PP or PHR
Length w/ buffer tank
Lifting
Locations
Figure 26. Sizes 60 and 70 ton — pump package, buffer tank, partial heat recovery
Control Panel
Wire Connection
Pump
Package
VFD
Fan
Compressor
Pump Package
Buffer Tank
Lifting
Locations
84.8 in
(2155 mm)
88.6 in (2250 mm)
23.7 in (602 mm)
125.8 in (3196 mm)
150.4 in (3820 mm)
170.7 in (4336 mm)
