Trane WZS Installation & Operation Manual

BAS-SVX04A-EN • Wireless Zone Sensor 15
Setting the Address, Mounting, Wiring, and Associating the
Receiver and Sensor
Setting the Rotary Address Switches on the Receiver and the Sensor
Note: To expedite the installation and association process, set the addresses
before applying power to the receiver.
The process of establishing communication between the receiver and sensor is
referred to as association. The receiver and the sensor must have their rotary
switches set to the same address in order to enable communication between the
two devices (see Figure 3). Important limitations are as follows:
• Only one associated receiver/sensor set can communicate within the
reception range of the wireless system.
• It is not possible to associate more than one sensor to a receiver, nor is it
possible to associate more than one receiver to a sensor.

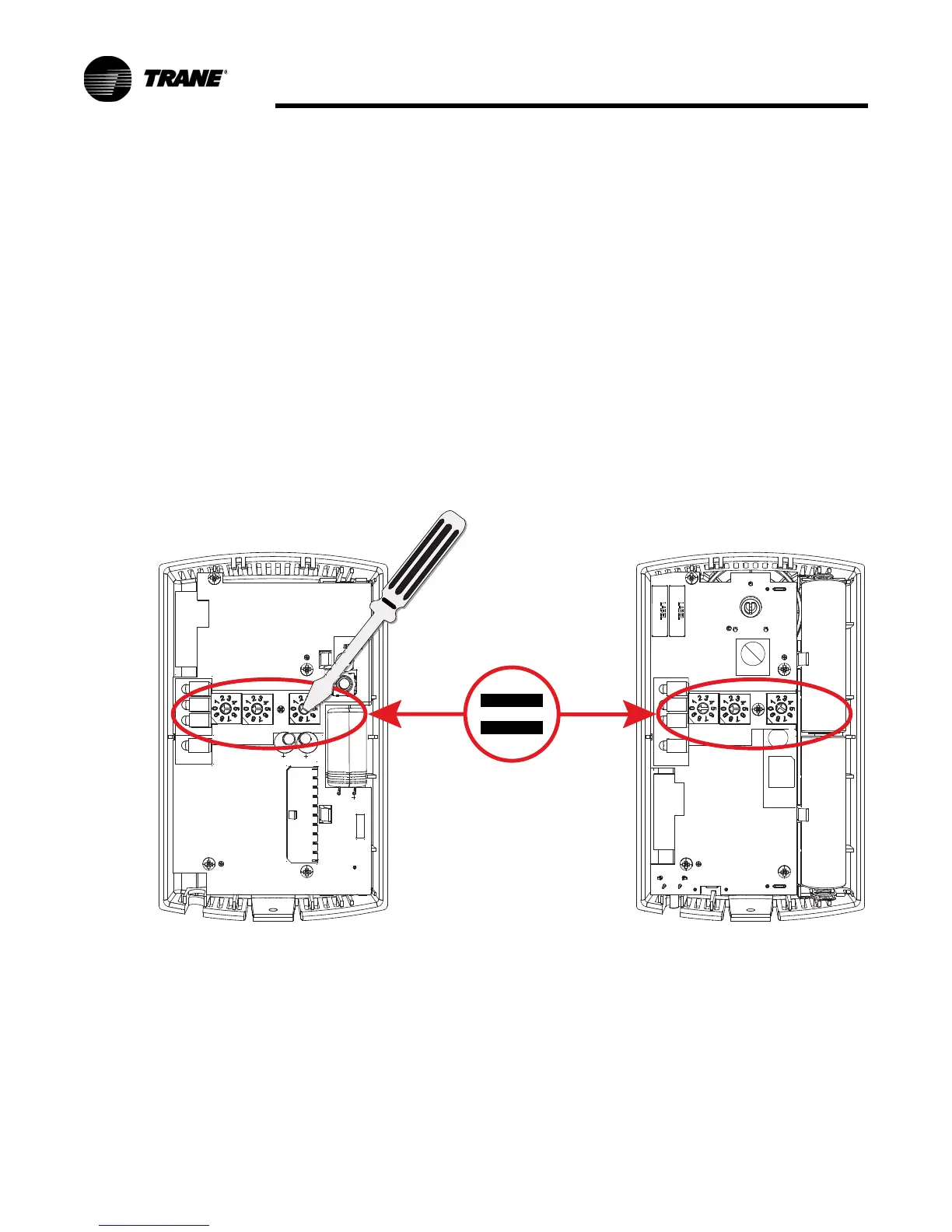

Figure 3. Setting the rotary address switches on the receiver and the sensor
GND
R77
C35
S1
S2
C33
J2
LED4
S4
S5
S3
LED1
LED2
LED3
LED5
C34
J1
COMM -
24VAC/DC
SETPOINT
HEATING SET
SIGNAL
POWER
A
ADDRESS
FAN/SYSTEM
ZONE
COMM +
IN
TALL
WIRELESS
1
GND
RECEIVER
SENSOR
!
B1 +
B2 -
INSTALL
WIRELESS
S4
S3
S2
S1
ADDRESS
STATUS
BATTERY
LED5
SIGNAL
LED3
LED2
LED1
J1
Pb
Pb-FREE
STATUS
LED4
L
T
A
L
L
L
E
S
S
L
T
A
A
L
E
Each pair of devices must
have a unique address.
Range 001 - 999
