BAS-SVX04A-EN • Wireless Zone Sensor 17
Setting the Address, Mounting, Wiring, and Associating the
Receiver and Sensor
Mounting the Base Plate of the Receiver
The receiver consists of two parts: the base plate and the cover (which includes
the electronics).
1. Remove the cover: While grasping the top and bottom of the base plate,
firmly depress the thumb tab at the bottom of the cover. Pull the bottom of
the receiver cover away from the base plate (
Figure 4, p. 17).
2. Mount the base plate of the receiver. Mounting hardware is included with the
receiver.
The receiver can be mounted to any flat surface including sheet metal or a
standard 2 in. × 4 in. electrical box. The appropriate location for mounting the
receiver is job dependent.

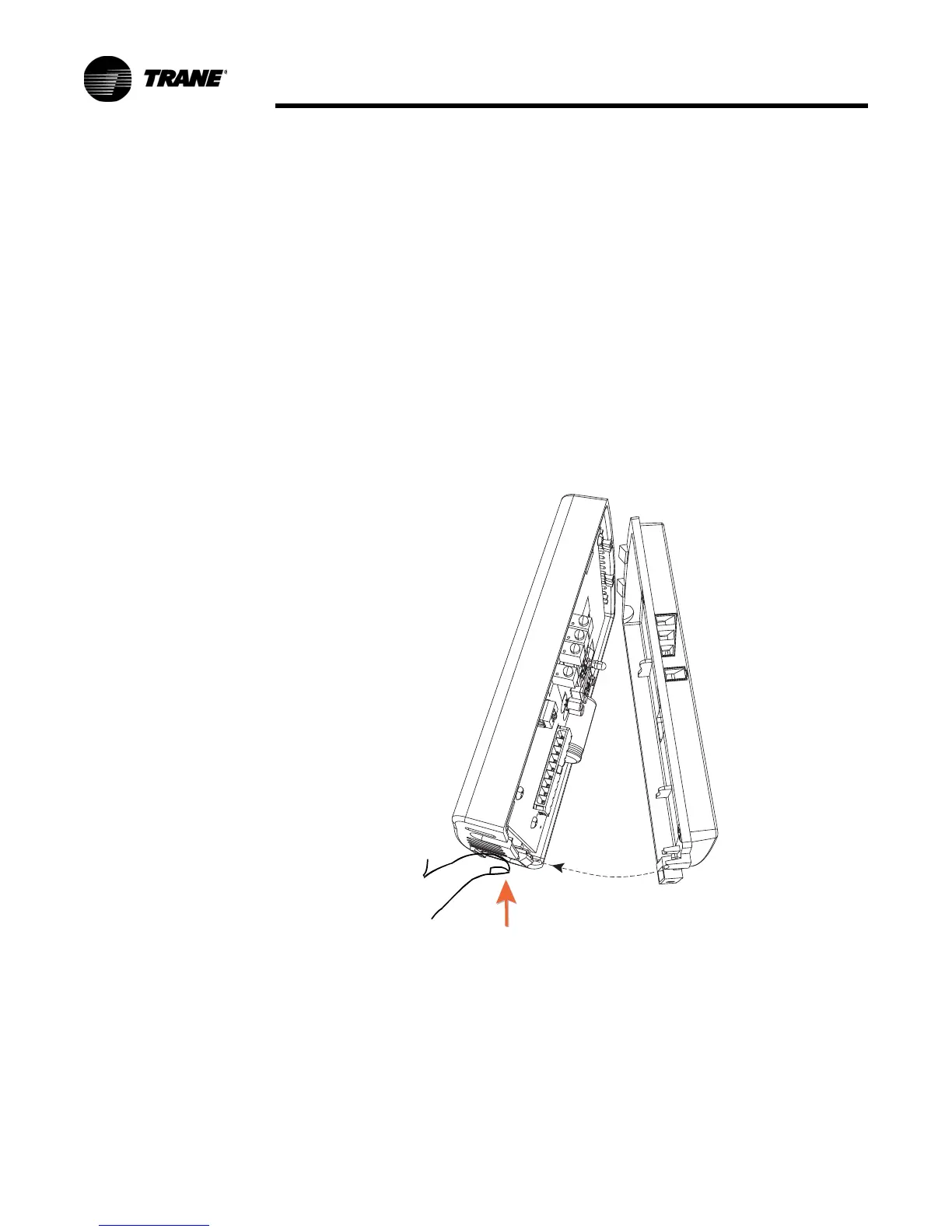

Figure 4. Removing the cover
