BAS-SVX04A-EN • Wireless Zone Sensor 27
Setting the Address, Mounting, Wiring, and Associating the
Receiver and Sensor
Testing Signal and Battery Strength
The following recommended test indicates signal and battery strength. It verifies
that the association process was successful and that the batteries have adequate
charge. (For more information on LEDs, see “Operation, Maintenance, and
Troubleshooting” on page 31.)
1. Firmly press and release the Test button (S5) on the bottom of the sensor
(
Figure 14).
2. View LED1, LED2, and LED3 to determine the strength of the signal. View
LED5 to determine the strength of the battery.
Note: The LEDs will turn Off after 5 seconds to conserve battery strength.
3. Record the results in your commissioning statement.

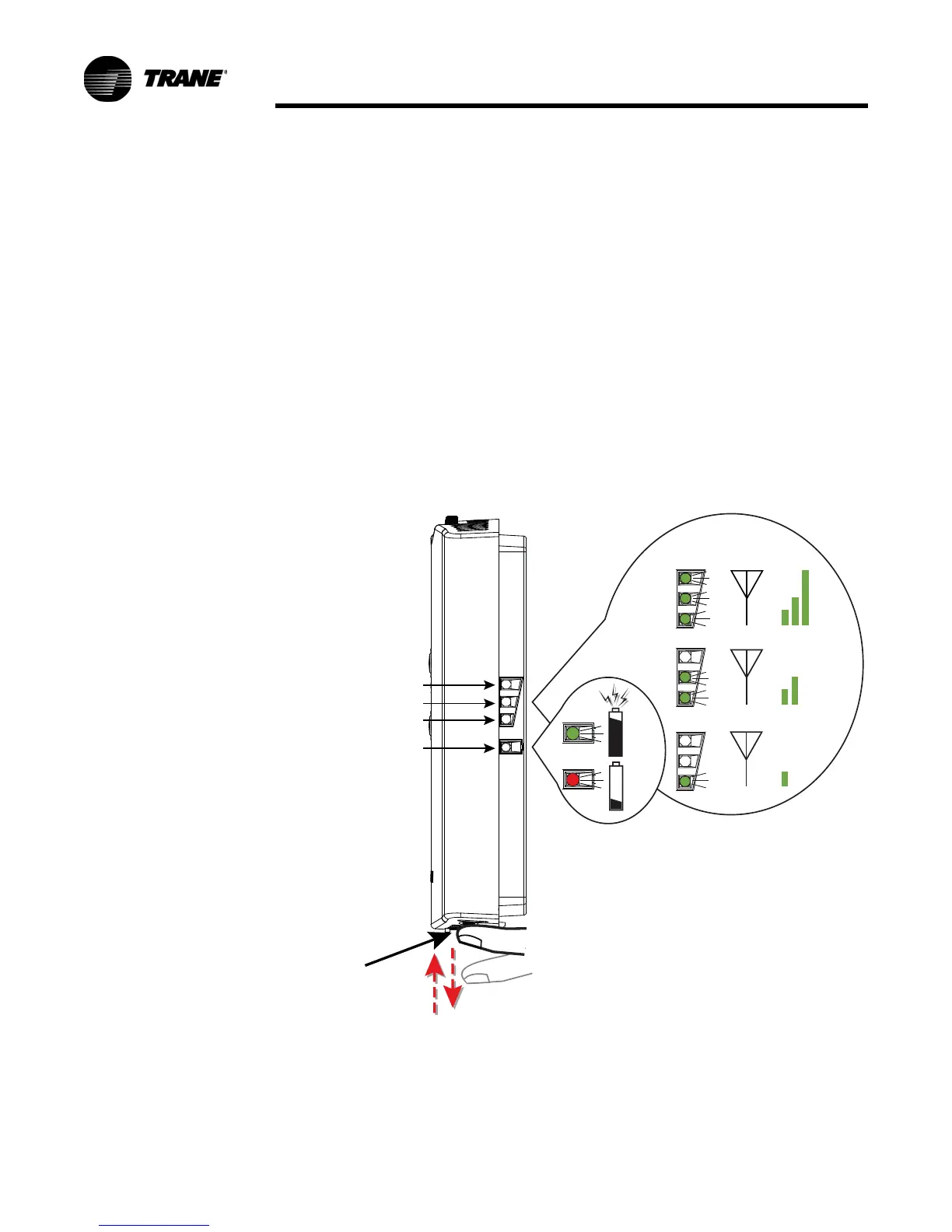

Figure 14. Testing signal and battery strength
Signal strength
(Test
button)
LED1
LED2
LED3
S5
LED5
Push S5 firmly, then release
