Trane WZS Installation & Operation Manual

BAS-SVX04A-EN • Wireless Zone Sensor 35
Operation, Maintenance, and Troubleshooting
Sensor Batteries
Sensor battery type, length of life, and installation are covered in this section.
Battery Type
CAUTION
Equipment Damage!
The batteries are manufactured in a ready-to-use state. They are not designed for
recharging. Recharging can cause battery leakage or, in some cases, can cause
the safety release vent to open.
CAUTION
Equipment Damage!
Do not attempt to hook up the WZS to a power supply. Equipment damage may
result.
Use non-rechargeable 1.5 volt AA lithium batteries in the sensor. Two batteries
are required. To maintain UL rating, only UL-listed lithium batteries should be
used. The sensor ships with Energizer™ L91 batteries already installed.
Note: The sensor is shipped with an insulation barrier between the batteries
(Figure 18) to prevent discharging of the batteries during shipment and
storage. Remove this barrier when installing the sensor (see “Powering
the Sensor and Associating the Sensor to the Receiver,” p. 26).

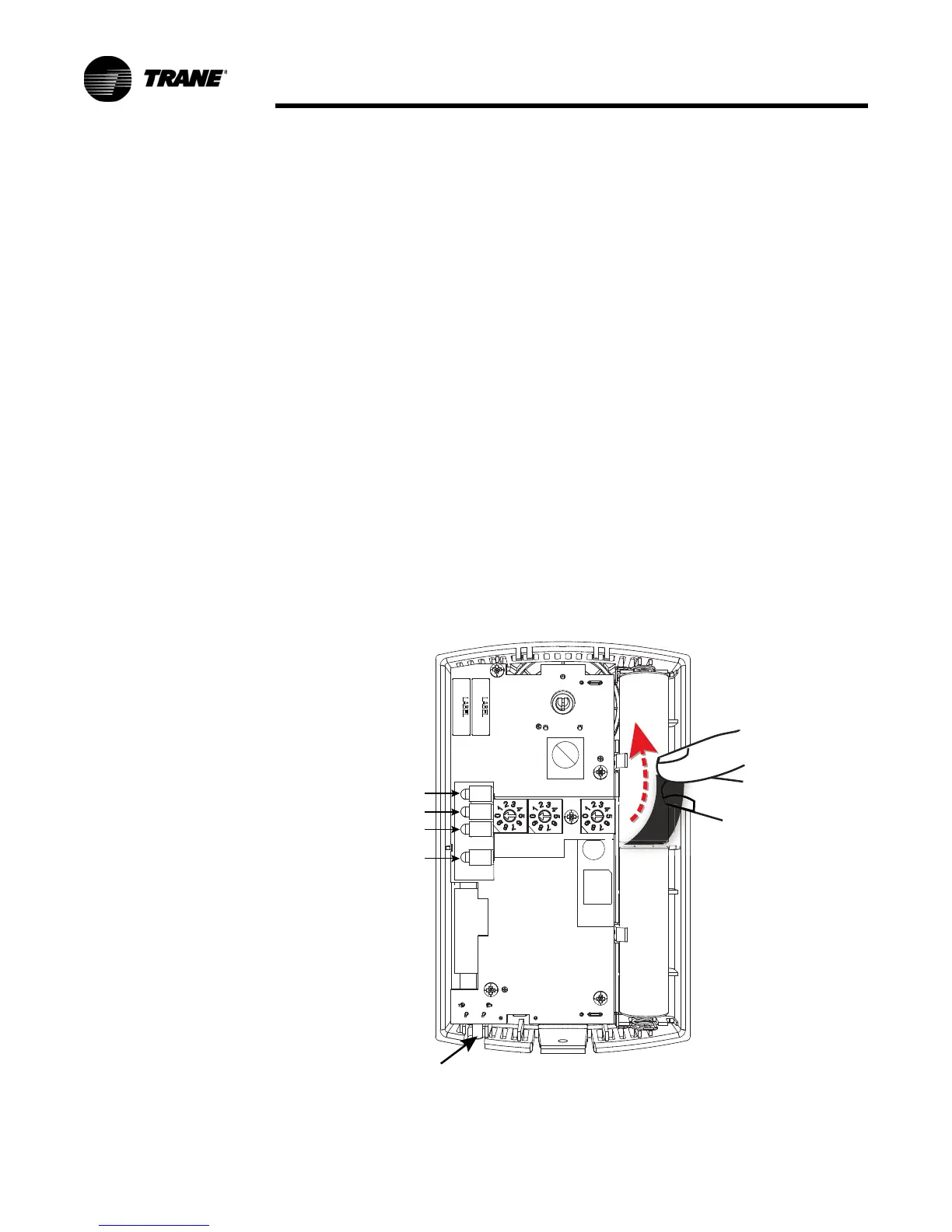

Figure 18. Battery insulation barrier
B1 +
B2 -
I
INSTALL
WIRELESS
S4
S3
S2
S1
ADDRESS
STATUS
BATTERY
LED5
SIGNAL
J1
Pb
Pb-FREE
STATUS
LED4
LED5
LED1
LED2
LED3
S5
+
–
+
–
