30 Wireless Zone Sensor • BAS-SVX04A-EN
Setting the Address, Mounting, Wiring, and Associating the
Receiver and Sensor
To Mount Sensor Directly to an Electrical Junction Box
1. Fasten the base plate to the vertically mounted electrical junction box using
the two supplied 6-32 x 3/4 in. mounting screws.
Note: The sensor must be mounted plumb (vertically level) to ensure proper
air movement through the sensor and to ensure accurate temperature
control.
Replacing and Securing the Sensor Cover
1. If the sensor cover has been removed from the base plate, replace it by
hooking the cover over the top of the base plate. Apply light pressure to the
bottom of the cover until it snaps in place (
Figure 16).
2. If necessary to keep the cover securely attached, install the security screw
into the bottom of the sensor (
Figure 16).

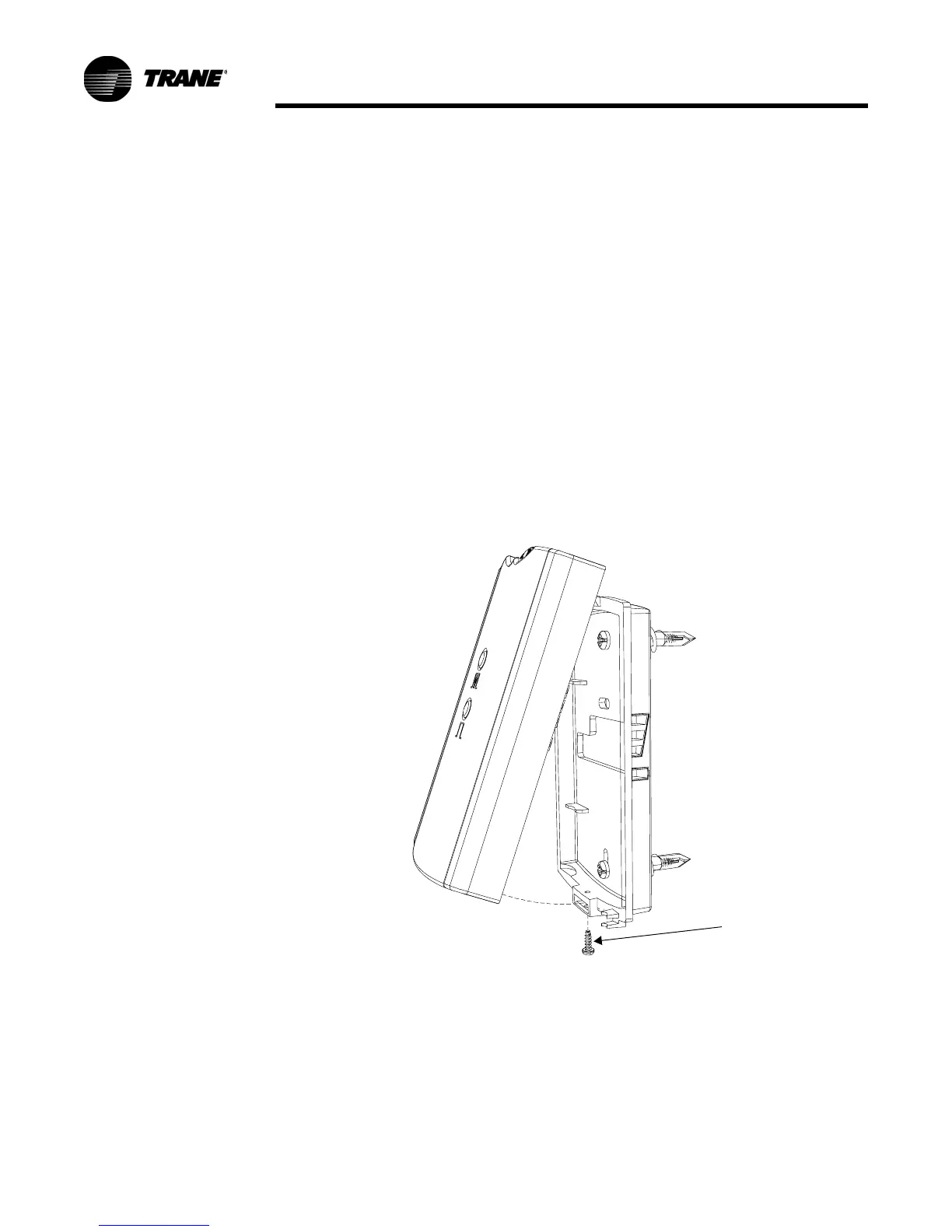

Figure 16. Snap cover on and attach security screw
Security screw
