Maintenance and Adjustment
Adjustment
Note:
• Minor adjustments can be made
using the adjusters near the twist
grip end of the throttle. Where a
correct setting cannot be achieved
in this way, the adjusters at the
throttle body end must be used.
The 'opening' cable must be set
first followed by the 'closing' cable.
• Remove the seat.
• Disconnect the battery, negative
(black) lead first.
• Set the 'opening' cable adjuster at
the twist grip end such that it has an
equal amount of adjustment in each
direction.
• Set the 'opening' cable adjuster at
the throttle body end of the cable to
give 2 - 3 mm of play at the twist
grip. Tighten the locknut.

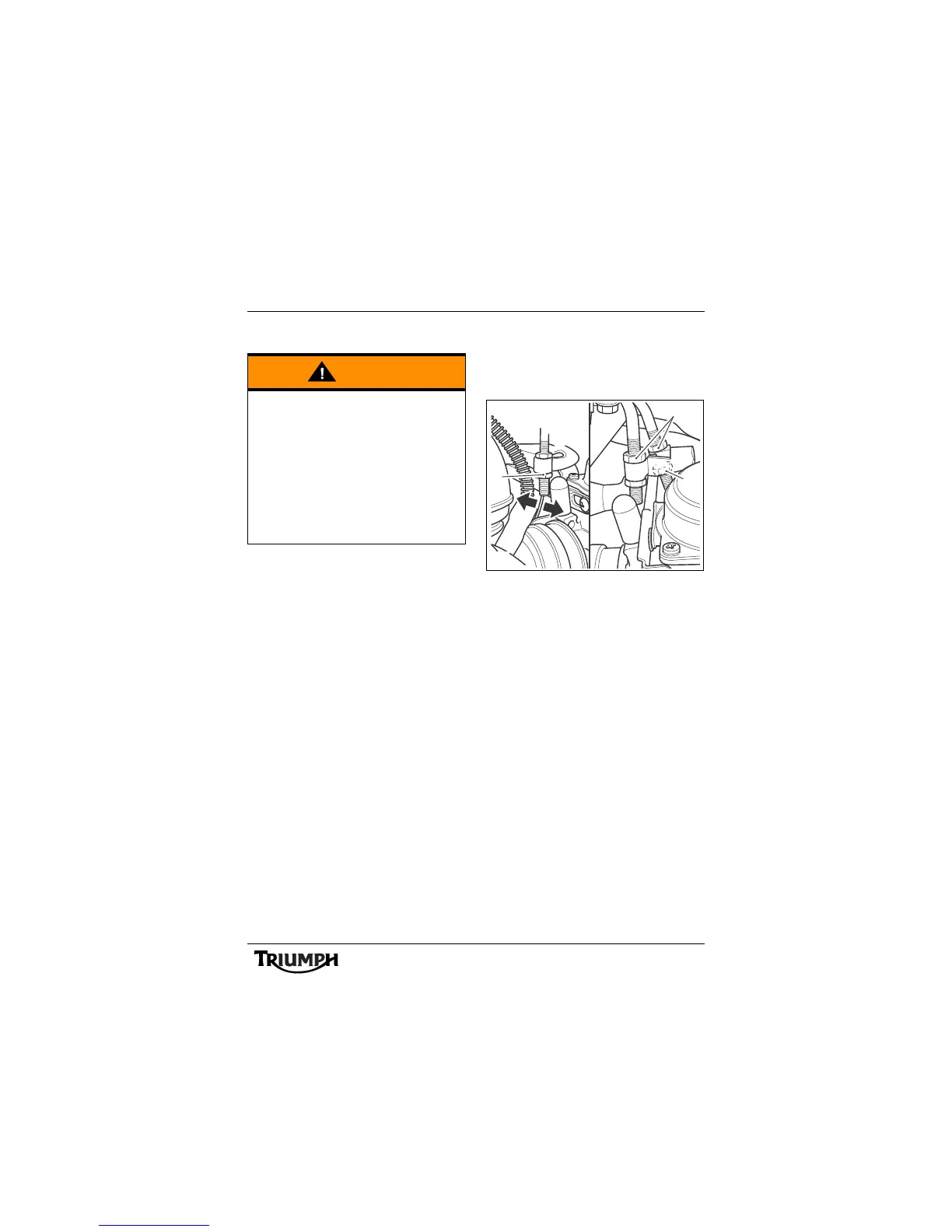

1. Locknuts
2. Opening cable adjuster
3. Closing cable adjuster
4. Closing cable - free play
measurement point
• Make any minor adjustments as
necessary to give 2 - 3 mm of play
using the adjuster near the twist grip
end of the cable. Tighten the
locknut.
• With the throttle fully closed, ensure
that there is 2 - 3 mm of free play in
the 'closing' cable. Adjust as for the
'opening' cable if necessary. Tighten
the locknut.
Warning
Use of the motorcycle with incorrectly
adjusted, incorrectly routed, sticking or
damaged throttle cables could interfere
with the throttle function resulting in loss of
control of the motorcycle and an accident.
To avoid incorrect adjustment, incorrect
routing, or continued use of a sticking or
damaged throttle, always have the throttle
checked and adjusted by your authorised
Triumph dealer.
ccip
4
3
1
2

Triumph Thruxton Specifications

General

Displacement	1200 cc
Transmission	6-speed
Bore x Stroke	97.6 mm x 80 mm
Max Torque	112 Nm @ 4, 950 rpm
Fuel System	Fuel injection
Final Drive	Chain
Clutch	Wet, multi-plate
Frame	Tubular steel
Rear Suspension	Twin shocks
Front Brakes	Dual 310mm discs, 2-piston calipers
Rear Brakes	Single 220mm disc, 2-piston caliper
Front Wheel	17 x 3.5 in
Rear Wheel	17-inch
Length	2100 mm (82.7 in)
Width (Handlebars)	745 mm (29.3 in)
Height	1, 030mm
Seat Height	810mm
Wheelbase	1, 415mm
Rake	22.8 º
Fuel Capacity	14.5 liters
Weight (Dry)	203kg
Weight (Wet)	223kg
Exhaust	2-into-2
