Maintenance and Adjustment
Inspection

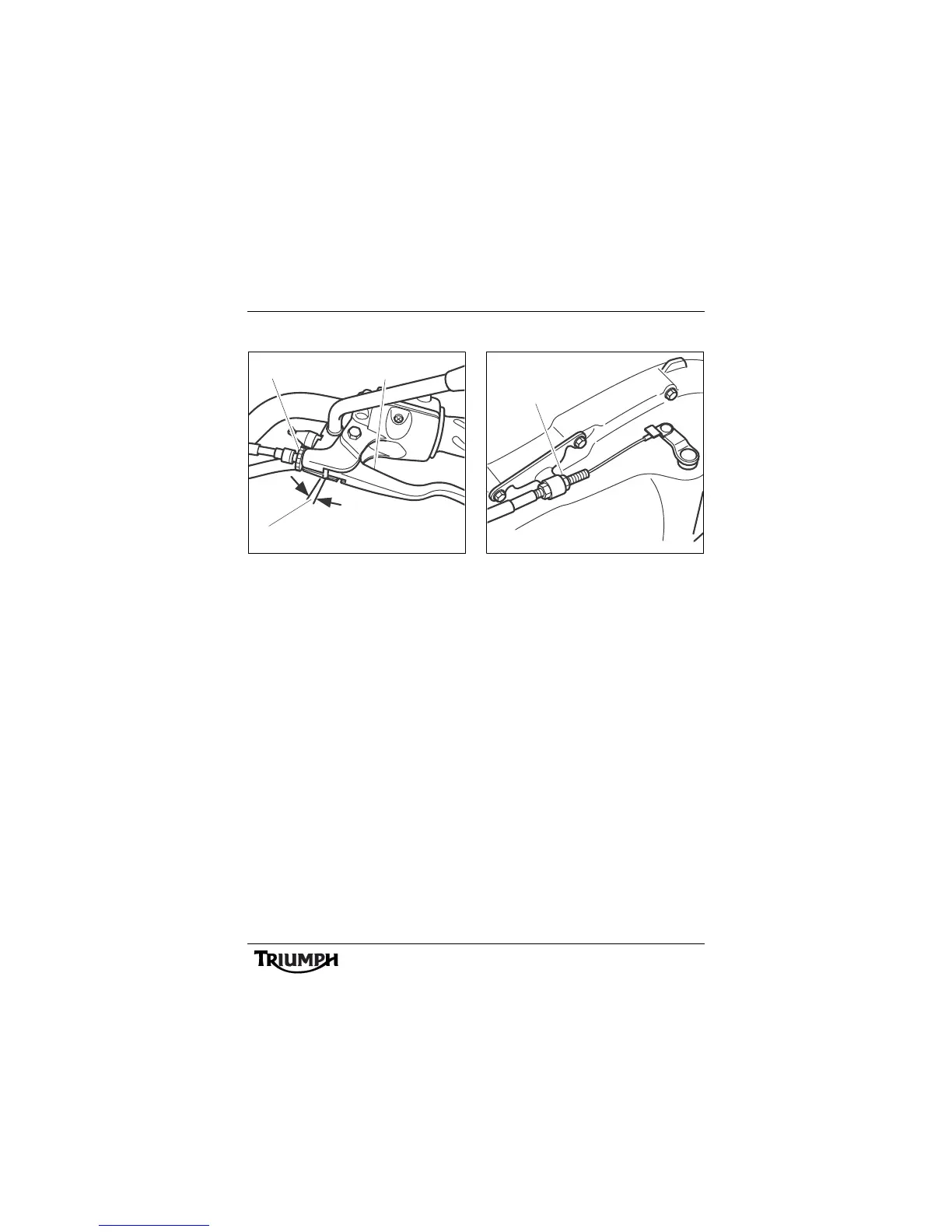

1. Lever
2. Adjuster (lever end)
3. 2-3mm
• Check that there is 2 - 3 mm of
clutch lever free play at the point
shown in the diagram above.
• If there is an incorrect amount of
free play, adjustments must be
made.
Adjustment
1. Adjuster (engine end)
Note:
• Knurled locknuts are fitted to
Thruxton and Bonneville T100
including the Steve McQueen™
Edition, Bonneville 110
th
Edition
models only. Bonneville,
Bonneville SE and Scrambler
models have a ratchet type
adjuster.
• Loosen the knurled locknut at the
lever end of the clutch cable and
turn the adjuster sleeve until the
correct amount of clutch lever free
play is achieved.
• Tighten the knurled locknut at the
clutch lever assembly.
• If the correct adjustment setting
cannot be achieved using the lever
adjuster, use the adjuster at the
engine end of the cable.
• Loosen the adjuster locknut.
