Triumph Thruxton Handbook

81
Maintenance and Adjustment
Front Brake Fluid Level Inspection
and Adjustment - Bonneville,
Bonneville SE and Scrambler
1. Upper level line, front brake
2. Lower level line, front brake
3. Safety clip
• The brake fluid level in the reservoirs
must be kept between the upper
and lower level lines (reservoir held
horizontal).
• Remove the safety clip.
• Remove the reservoir cap.
• Fill the reservoir to the upper level
line using new DOT 4 fluid from a
sealed container.
• Refit the reservoir cap ensuring that
the diaphragm seal is correctly fitted.
• Refit the safety clip.
Rear Brake Fluid Level Inspection
and Adjustment - Bonneville,
Bonneville SE, Bonneville T100
including the Steve McQueen™
Edition, Bonneville 110
th
Edition and
Thruxton

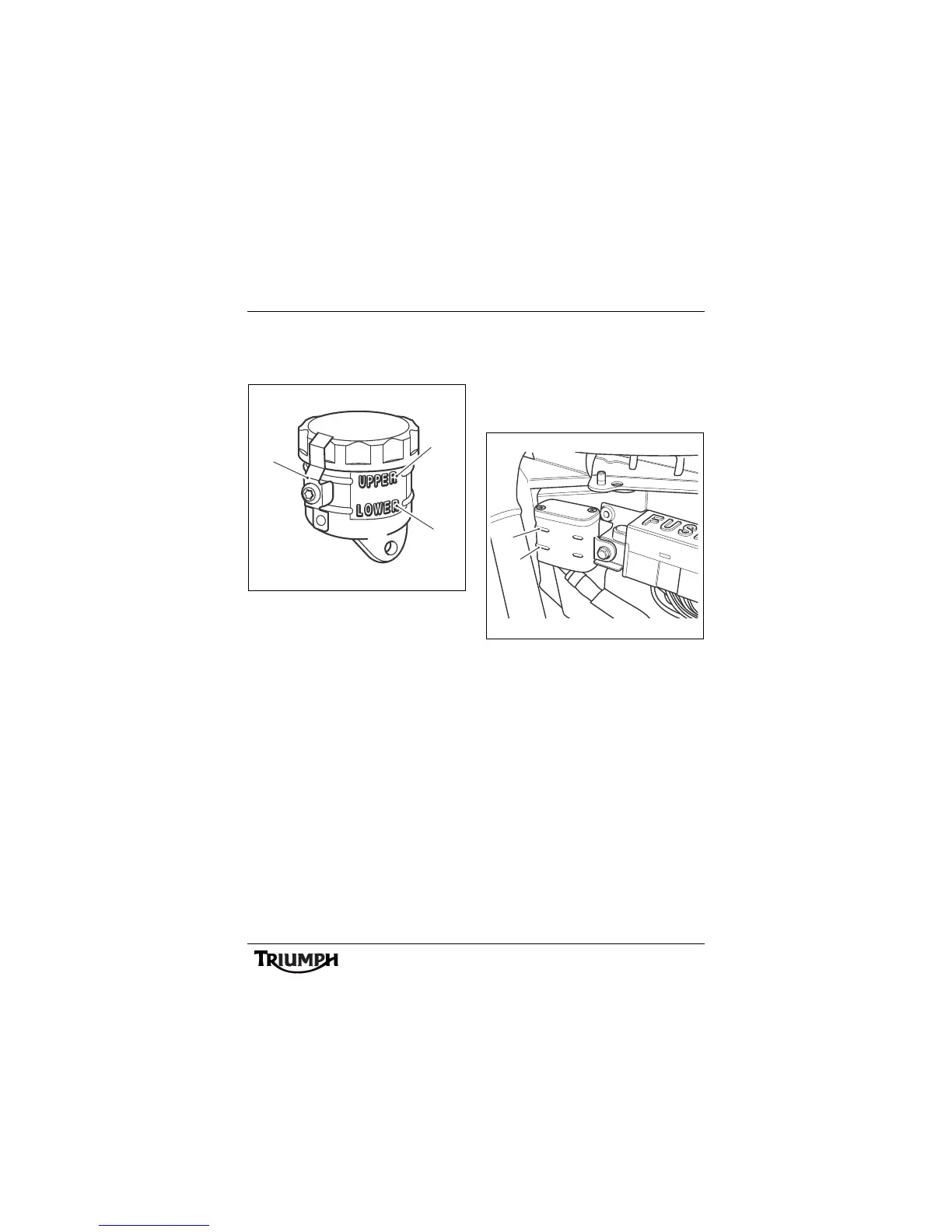

1. Upper level, rear brake
2. Lower level, rear brake
• To inspect the rear brake fluid level,
remove the right hand side cover as
described in the General Information
section.
• The brake fluid level in the rear
reservoir must be kept between the
upper and lower level lines.
• To adjust the fluid level, release the
reservoir from the airbox without
detaching the connecting hose.
• Release the cap screws and detach
the cover noting the position of the
sealing diaphragm.
• Fill the reservoir to the upper level
line using new DOT 3 or DOT 4
fluid from a sealed container.
jajc
3
1
2
U
P
PER
L
O
WER
ccis
1
2

Triumph Thruxton Specifications

General

Displacement	1200 cc
Transmission	6-speed
Bore x Stroke	97.6 mm x 80 mm
Max Torque	112 Nm @ 4, 950 rpm
Fuel System	Fuel injection
Final Drive	Chain
Clutch	Wet, multi-plate
Frame	Tubular steel
Rear Suspension	Twin shocks
Front Brakes	Dual 310mm discs, 2-piston calipers
Rear Brakes	Single 220mm disc, 2-piston caliper
Front Wheel	17 x 3.5 in
Rear Wheel	17-inch
Length	2100 mm (82.7 in)
Width (Handlebars)	745 mm (29.3 in)
Height	1, 030mm
Seat Height	810mm
Wheelbase	1, 415mm
Rake	22.8 º
Fuel Capacity	14.5 liters
Weight (Dry)	203kg
Weight (Wet)	223kg
Exhaust	2-into-2
