Uponor SmatrixMove User Manual

6 Install Uponor Smatrix Wave/Wave PLUS
thermostats and sensors
Only the following thermostats can be connected to a
Uponor Smatrix Move PLUS system:
• Uponor Smatrix Wave Thermostat Dig T-166
• Uponor Smatrix Wave PLUS Thermostat D+RH
T-167
• Uponor Smatrix Wave Thermostat Prog.+RH T-168
• Uponor Smatrix Wave Thermostat Public T-163
Caution!
Do not attempt to connect Uponor Smatrix
Base thermostats to the controller. They are
not suited for each other, and they may get
damaged.
NOTE!
If the outdoor sensor is placed to far
away from the reference room, a separate
thermostat can be used to register the
outdoor sensor.

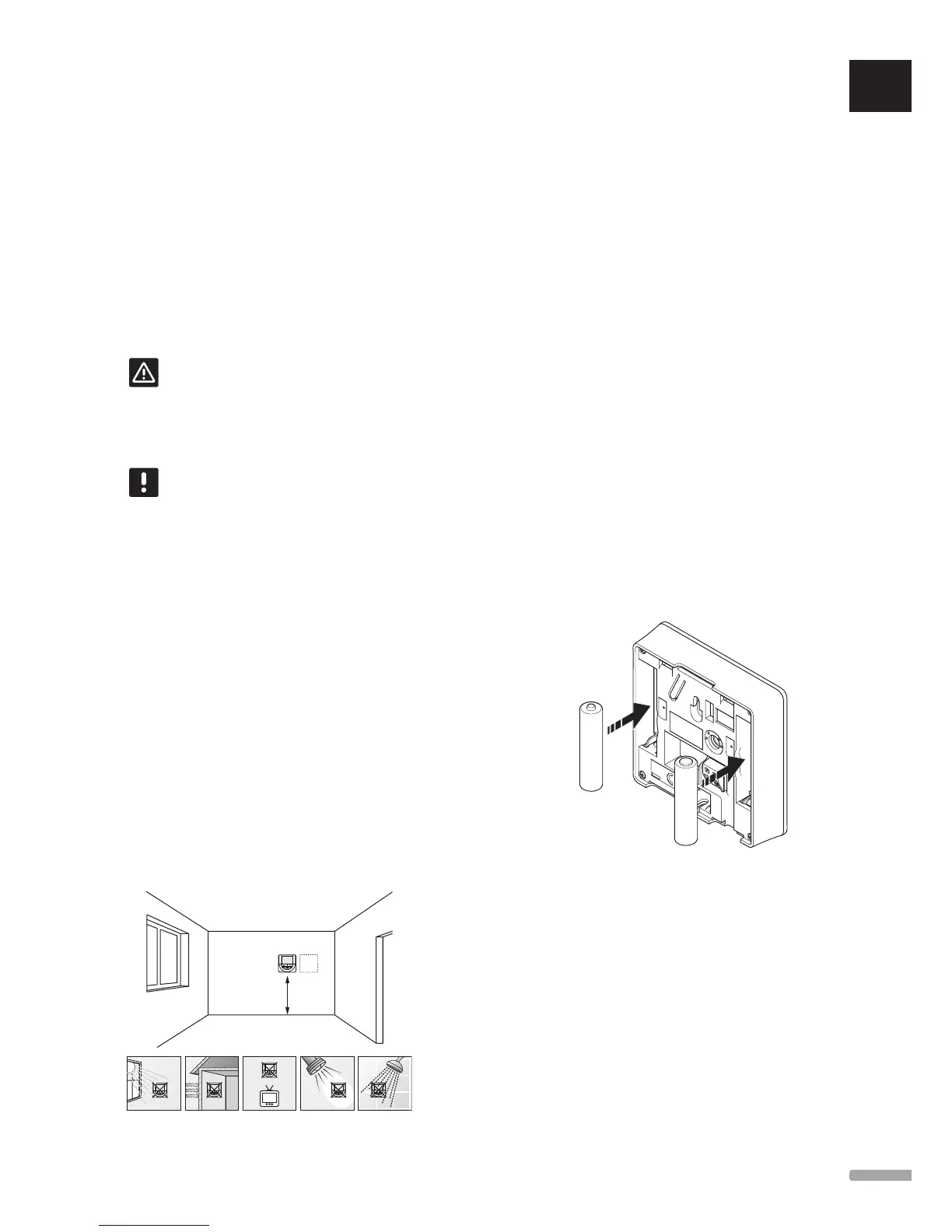

6.1 Placement of thermostats
Refer to the installation preparation guidelines (see
section 4.2 Prepare for installation), and use the
following guidelines when positioning the thermostats:
1. Select an indoor wall and a position 1.5 m to 1.8 m
above the floor.
2. Ensure that the thermostat is away from direct solar
radiation.
3. Ensure that the thermostat will not be heated
through the wall by sunshine.
4. Ensure that the thermostat is away from any source
of heat, for example television set, electronic
equipment, fireplace, spotlights, and so on.
5. Ensure that the thermostat is away from any source
of humidity and water splashes (IP20).
1.5–1.8 m
6.2 Label thermostats
Label the thermostats, where suitable, with the ID of
the connected controller, for example, 1, 2, 3 etc.
If the thermostat can connect to an external sensor, add
information about sensor type when applicable.
Available thermostat and sensor combinations:
• Room temperature
• Room and floor temperature (floor temperature
display only)
• Room and outdoor temperature
• Remote sensor temperature
6.3 Insert batteries
All thermostats use two alkaline 1.5 V AAA batteries
which provides about 2 years of battery life, as long as
they are positioned within radio range of the controller.
Ensure that the batteries are correctly inserted in the
thermostats.
The illustration below shows where to insert them.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
27
UPONOR SMATRIX MOVE/MOVE PLUS · INSTALLATION AND OPERATION MANUAL
