Uponor SmatrixMove User Manual

Two types of thermostats, both analogue and digital,
can be used in an Uponor Smatrix Move PLUS system.
Analogue thermostats:
• Uponor Smatrix Wave Thermostat Public T-163
The analogue thermostat is controlled by adjusting a
potentiometer on its back.
9.1 Thermostat layout
Public thermostat T-163
During normal operation a discreet LED on back of
the thermostat is lit for about 60 seconds if there is a
demand for heating or cooling.

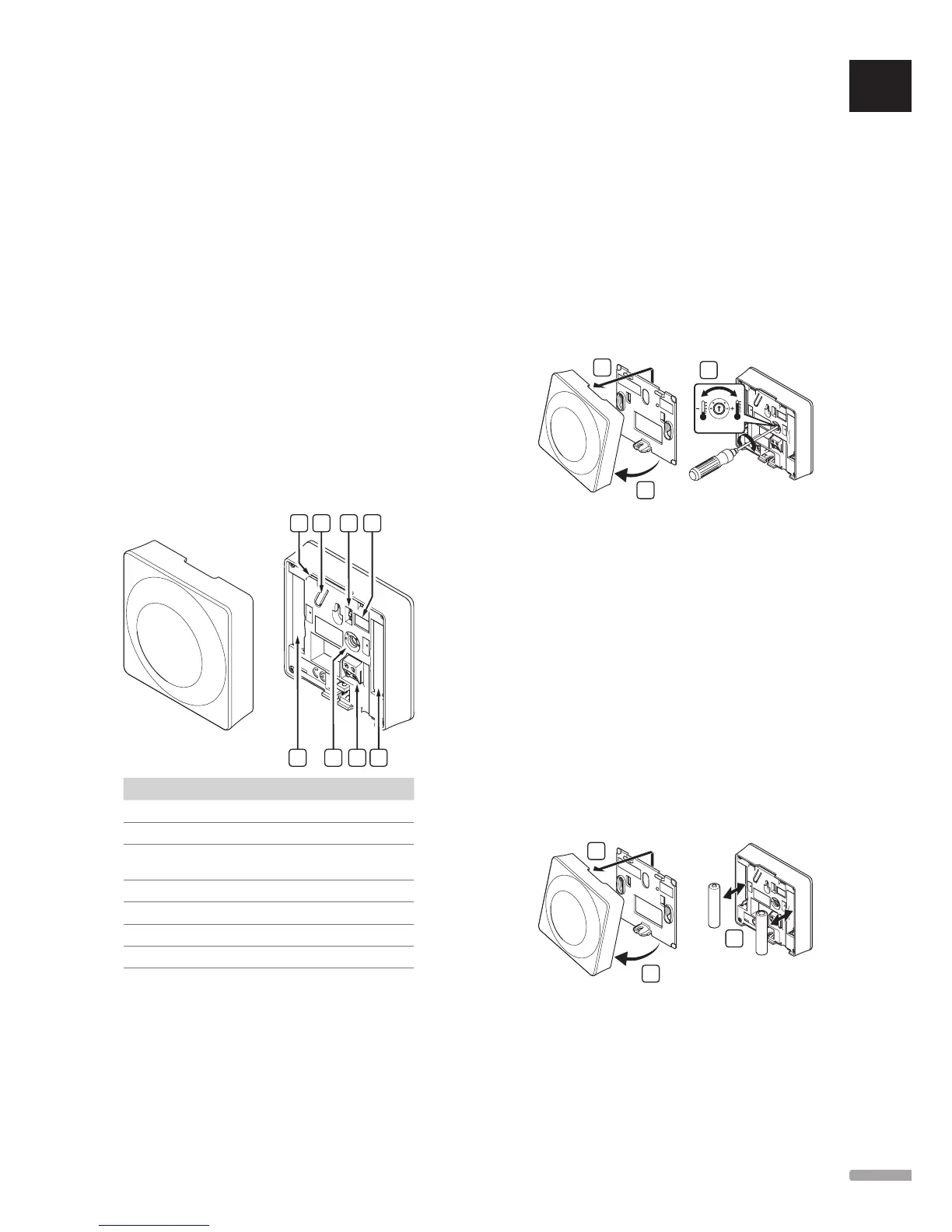

The illustration below shows the parts of the
thermostat.
B C E
FF DA
G
Item Description
A Setpoint temperature potentiometer
B Registration button
C Disable timer switch (not used in an Uponor
Smatrix Move PLUS system)
D Terminal for external sensor (non-polarised)
E Configuration DIP switches
F Batteries
G Heating/cooling demand LED
9.2 Adjust temperature
The temperature is changed by adjusting the setpoint
on the thermostat to a value between 5 and 35 ˚C.
Public thermostat T-163
The illustration below shows how to adjust the
thermostat temperature setpoint.
2
1
3
20
5
35
To change the thermostat temperature setpoint:
1. Angle the thermostat from the bracket.
2. Remove it from the wall.
3. Set the desired temperature using the
potentiometer.
4. Put the thermostat back on the wall.
9.3 Replace batteries
Replace the batteries of the thermostat when the LED
flashes twice during a heating or cooling demand.
The thermostat will perform a self test, for about
10 seconds, when the batteries have been inserted. The
system will be blocked for input and the thermostat LED
flashes during this period.
The illustration below shows how to change batteries.
2
1
3
1. Angle the thermostat from the bracket.
2. Remove it from the wall.
3. Replace batteries.
