Uponor SmatrixMove User Manual

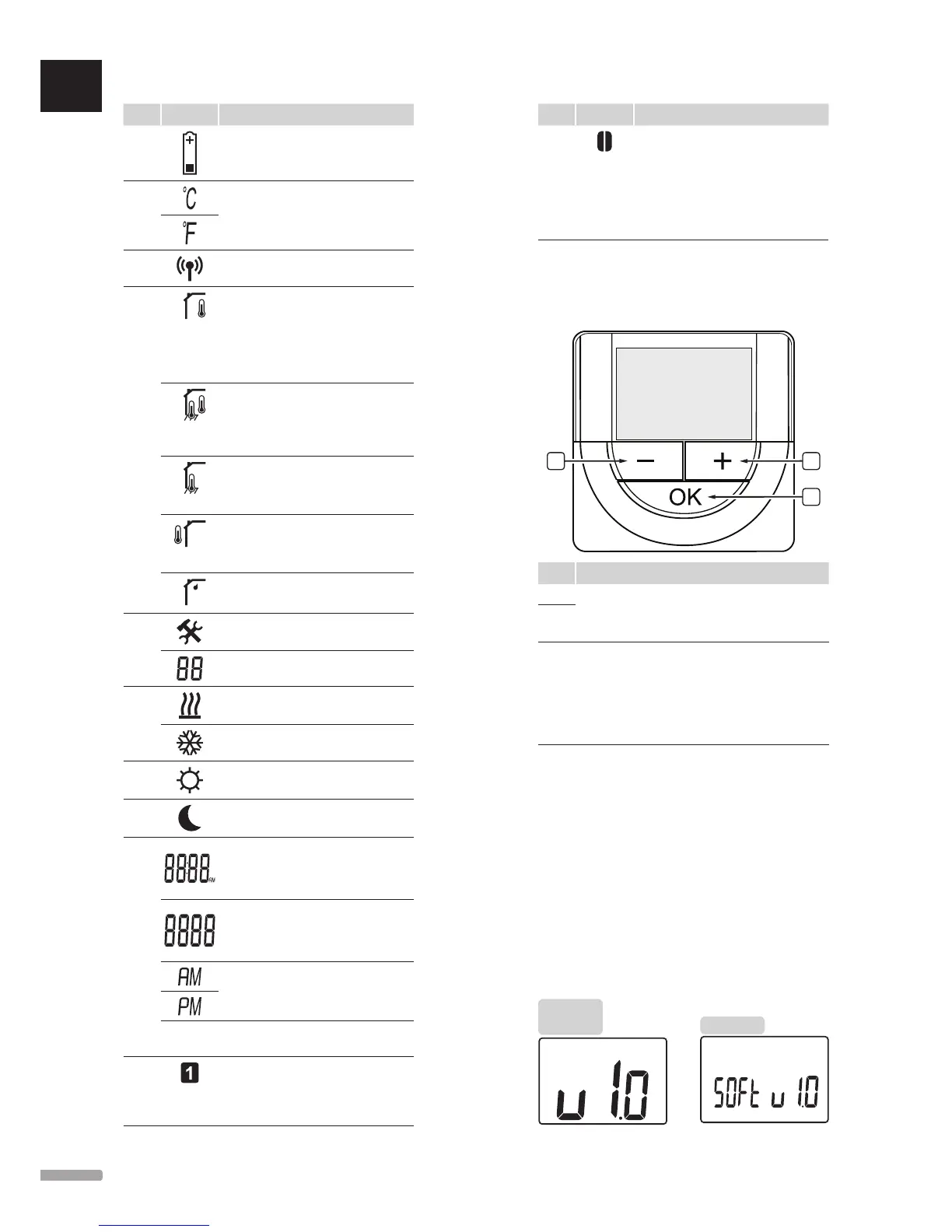

Pos. Icon Description
B
Low battery indicator
C
Temperature unit, shown when the
character group A shows a temperature
D
Communication indicator
E
Indoor temperature indicator
Remote sensor temperature indicator
(RS mode)
The text Err and a flashing sensor icon
indicates a faulty sensor
Indoor temperature with floor
temperature limitation indicator
The text Err and a flashing floor sensor
icon indicates a faulty sensor
Floor temperature indicator
The text Err and a flashing floor sensor
icon indicates a faulty sensor
Outdoor temperature indicator
The text Err and a flashing outdoor
sensor icon indicates a faulty sensor
T-167 and T-168 only
Relative humidity limit reached
F
Settings menu
Settings menu number
G
Heating demand
Cooling demand
H
Comfort mode
I
ECO mode
J
T-168 only
Digital clock
T-168 only
Parameter name in settings menu
T-168 only
Indicator showing AM or PM when the
thermostat is set to 12 h mode
No indication when the thermostat is
set to 24 h mode
K T-168 only
Weekday selected/activated
1 = Monday
7 = Sunday
Pos. Icon Description
L
T-168 only
Time selected or scheduled hour
indicators, for Comfort mode, between
0:00 and 24:00
Half = 30 minutes
Full = 1 hour
10.3 Operating buttons
The figure below shows buttons used to operate the
digital thermostats.
B
C
A
Pos. Description
A The - and + buttons are used to:
• Adjust setpoint temperature
• Modify parameters in the settings menus
B
C The OK button is used to:
• Toggle between current status data, and
values of available sensors connected to the
thermostat
• Enter and exit the settings menu
• Confirm a setting
10.4 Start up
When starting up, the software version is shown in the
display for about three seconds. Then the thermostat
enters run mode.
The first time the thermostat is started, or after a
factory reset, the software requires the time and date to
be set (T-168 only).
Software version
Current software version is displayed when the
thermostat is powered on.
Examples:
T-166
T-167
T-168
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
60
UPONOR SMATRIX MOVE/MOVE PLUS · INSTALLATION AND OPERATION MANUAL
