13.2 Technical specifications
Cables Standard cable length Maximum cable length Wire gauge
Cable from controller to antenna 0.30 m 10 m Controller: Plug connector
Antenna: Plug connector
Cable from controller to actuator 0.75 m 20 m Controller: 0.2 mm² to 1.5 mm²
External sensor cable to thermostat 5 m 5 m 0.6 mm²
Floor sensor cable to thermostat 4 m 4 m 0.75 mm²
Cable from relay switch to controller
heating/cooling input
2 m 20 m Controller: 0.2 mm² to 1.5 mm²
Relay: 1.0 mm² to 4.0 mm²
Cable from external heating/cooling
controller to relay coil
10 m Can be extended up to
100 m, but must be checked
by installer
External heating/cooling controller:
manufacturer-specific
Relay: 1.5 mm² to 4.0 mm²

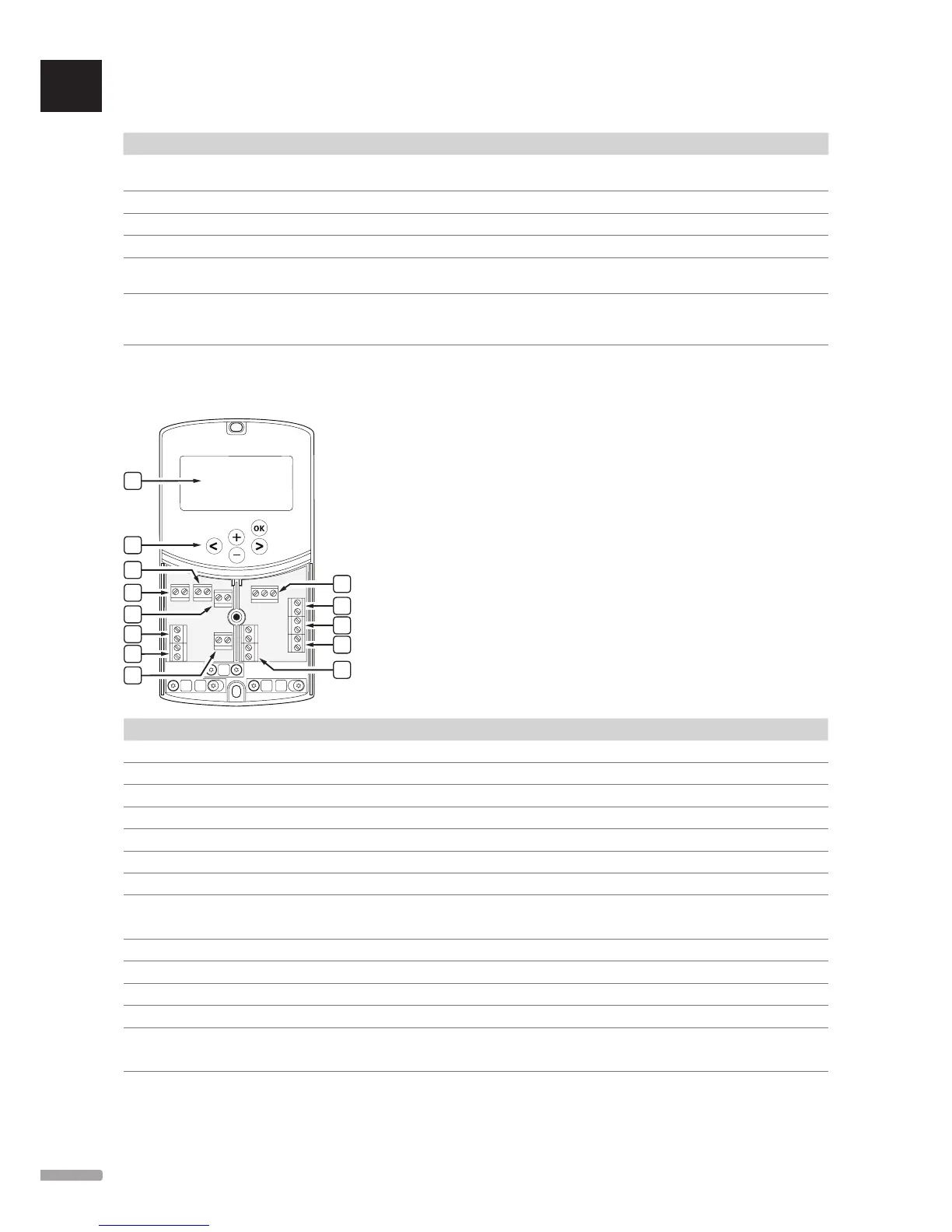

13.3 Controller layout
A
B
D
F
G
L
J
C
E
I
M
H
K
Item Description
A Display
B Buttons
C Terminal block, earth
D Terminal block, circulation pump, mixing circuit 1
E Terminal block, power supply
F Terminal block, cooling output or various applications
G Terminal block, heating output
H Terminal block, optional temperature limiter
Fitted from the factory with a cable bridge, which must be removed before connecting a temperature limiter
I Terminal block, valve actuator
J Terminal block, outdoor sensor
K Terminal block, return temperature sensor
L Terminal block, supply temperature sensor
M Terminal block, wired inputs 1 and 2
Optional immersion thermostat or external heating/cooling signal
